OEM SA-AP41R Circular Aluminum Access Panel

We are focus on practical design and technology combination,
and make efforts to grow in the continuous upgrading.

Home / Product / ALUMINUM ACCESS PANEL / SA-AP41R Circular Aluminum Access Panel
Products

Categories

  • SA-AP41R Circular Aluminum Access Panel
  • SA-AP41R Circular Aluminum Access Panel
  • SA-AP41R Circular Aluminum Access Panel
  • SA-AP41R Circular Aluminum Access Panel
  • SA-AP41R Circular Aluminum Access Panel

    • SA-AP41R Circular Aluminum Access Panel

    Location: Huzhou,China
    Packing details: PP bag ,white box, outer carton; Blister , carton
    Brands: OEM
    Certificate: CE,SONCAP SGS,CCC
    Terms of payment: Consultation
    Minimum order quantity: 1000pcs
    Delivery: By sea, by air , by courtier
    Delivery time: 25 days
    Contact Us

    Products Description

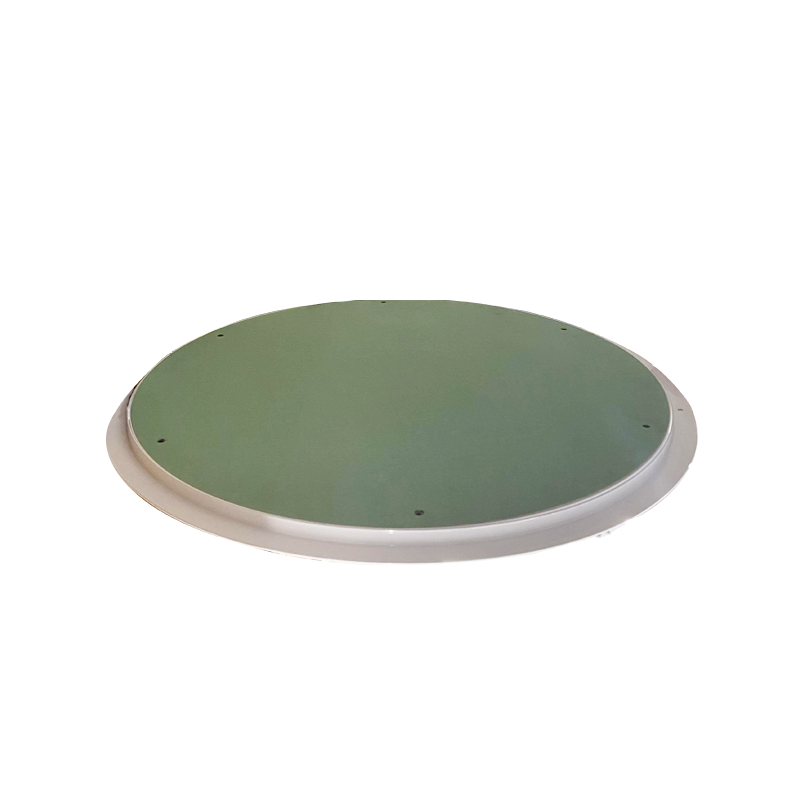

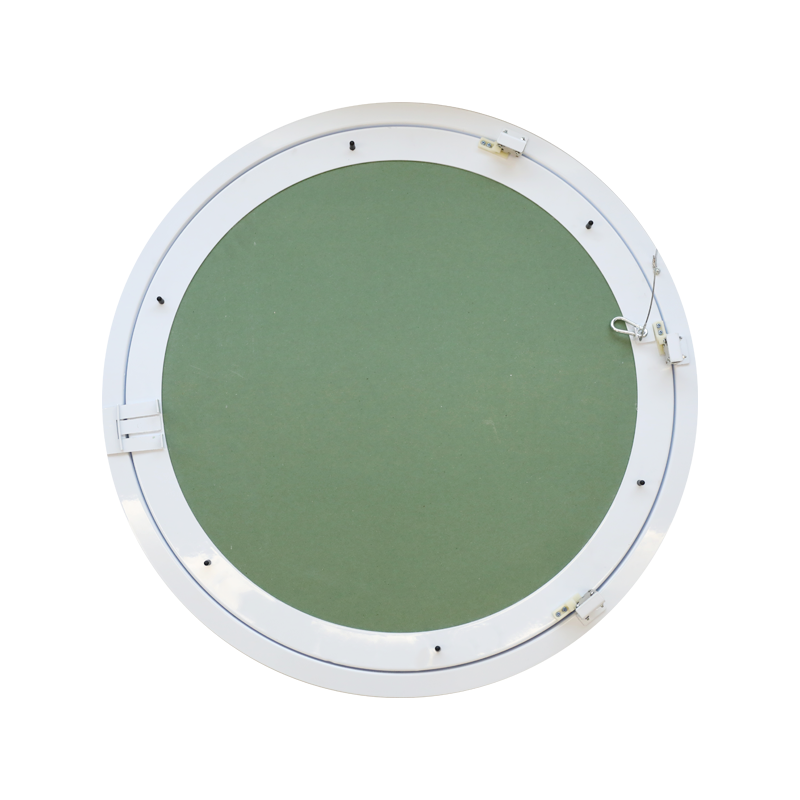

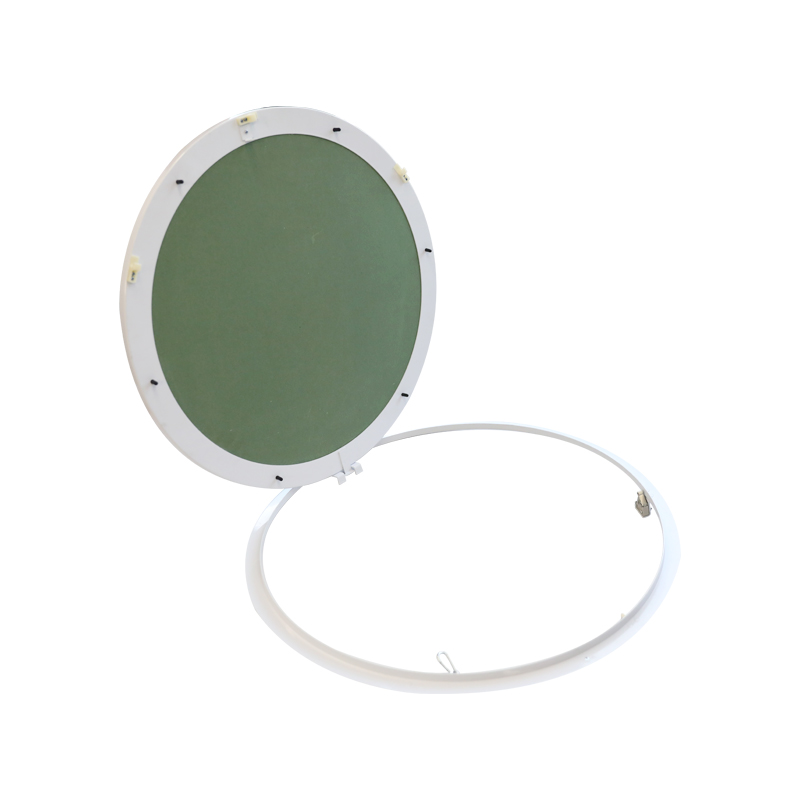

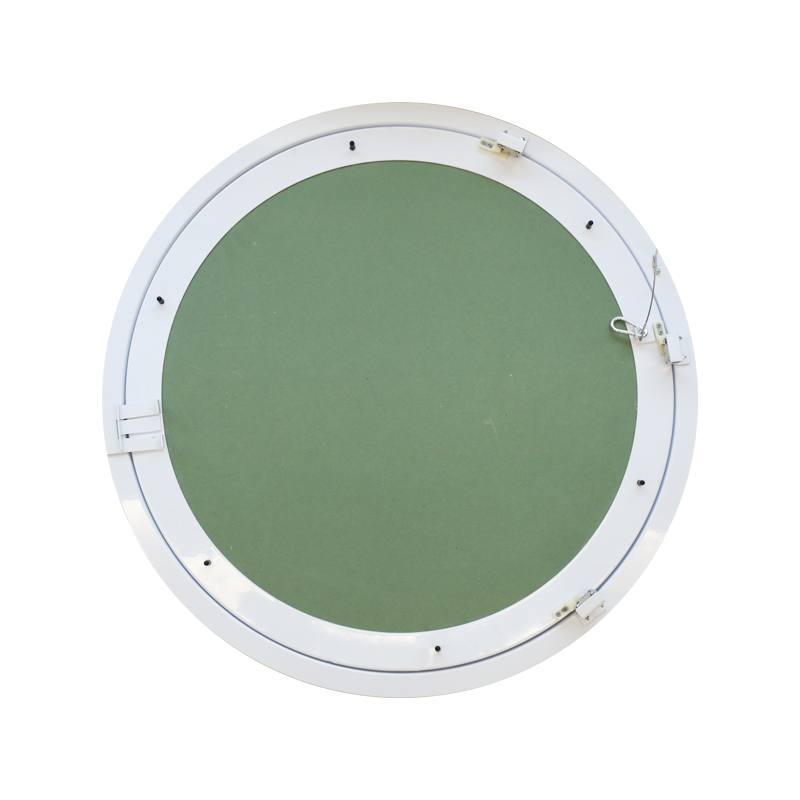

    SA-AP41R CIRCULAR ALUMINUM ACCESS PANEL
    1.Available in ceiling or drywall maintenance
    2.1mm aluminum profile
    3.Circular design
    4.White powder coated finish
    5.With sealing strips between inner and out frame
    6.12mm gypsum board inlay
    7.Removable door panel with concealed safety wire
    8.The round outline continues architectural themes blending with other circular fittings.
    9.Standard size: 200mm, 300mm, 400mm, 450mm, 500mm, 600mm

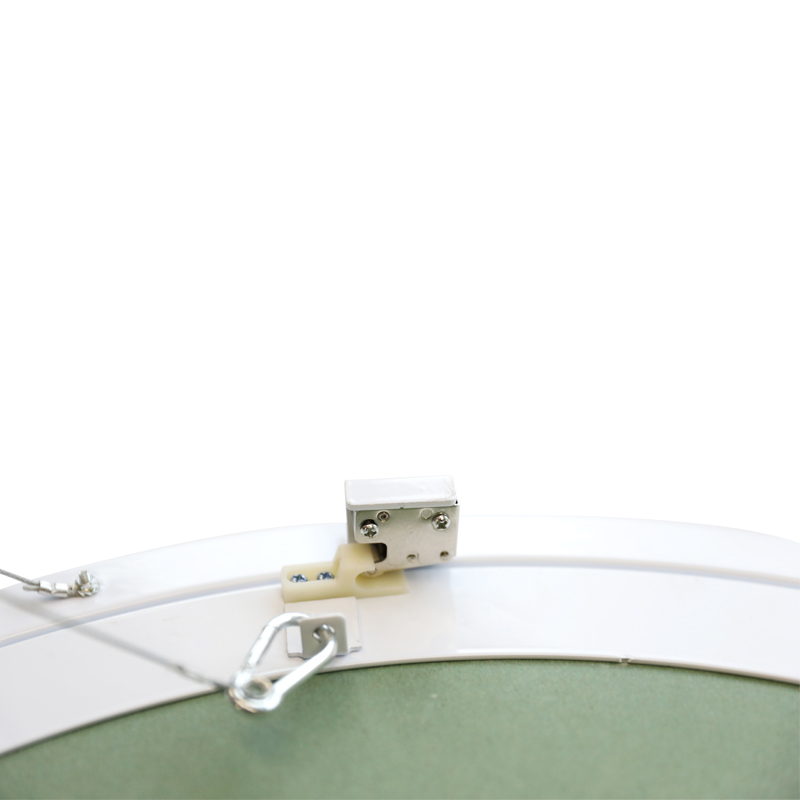

    10.Concealed push lock operated
    Regular size

    SA-AP41R

    Nominal size

    (mm)

    Neck size

    N(mm)

    Opening size

    W(mm)

    Overall size

    L(mm)

    Φ200

    Φ196

    Φ243

    Φ193

    Φ300

    Φ296

    Φ343

    Φ293

    Φ400

    Φ396

    Φ443

    Φ393

    Φ450

    Φ446

    Φ493

    Φ443

    Φ500

    Φ496

    Φ543

    Φ493

    Φ600

    Φ596

    Φ643

    Φ593

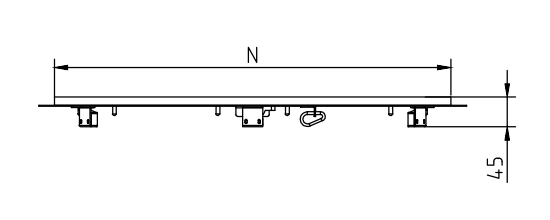

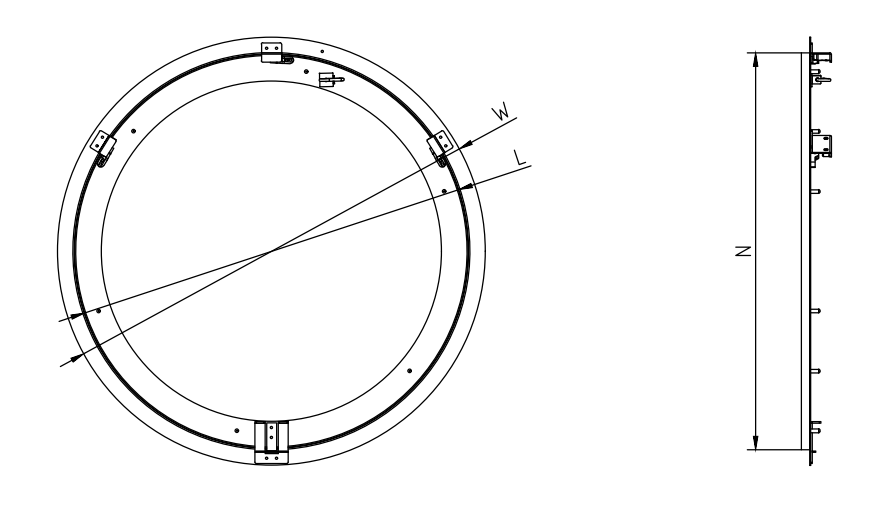

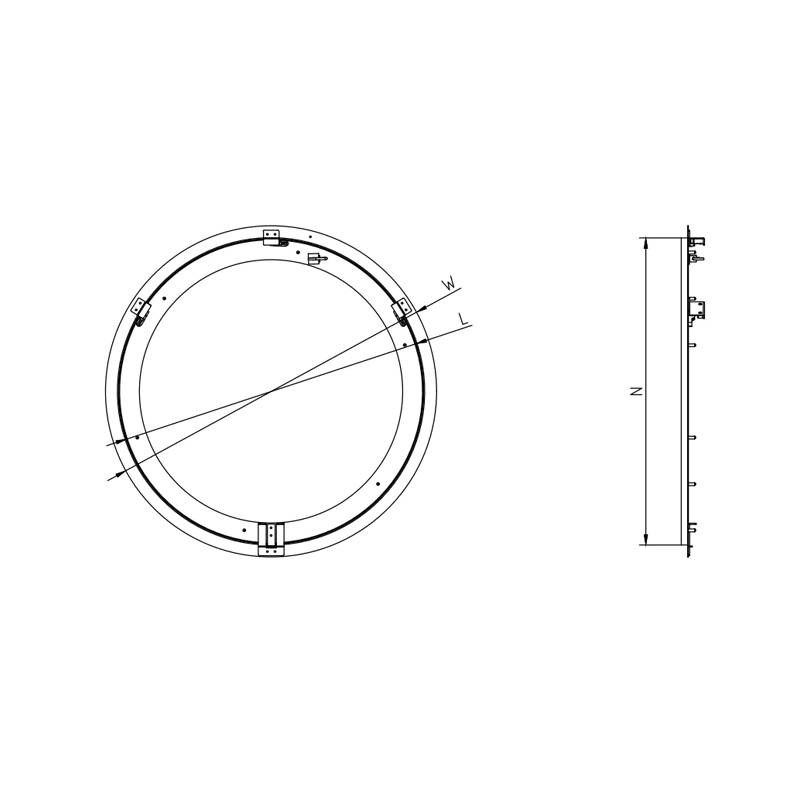

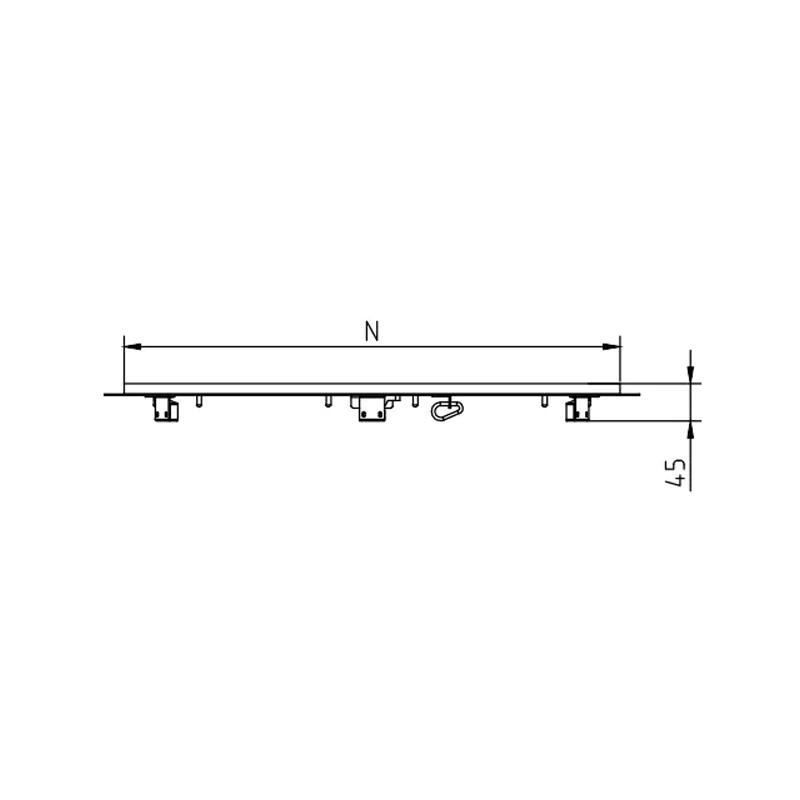

    Product drawing

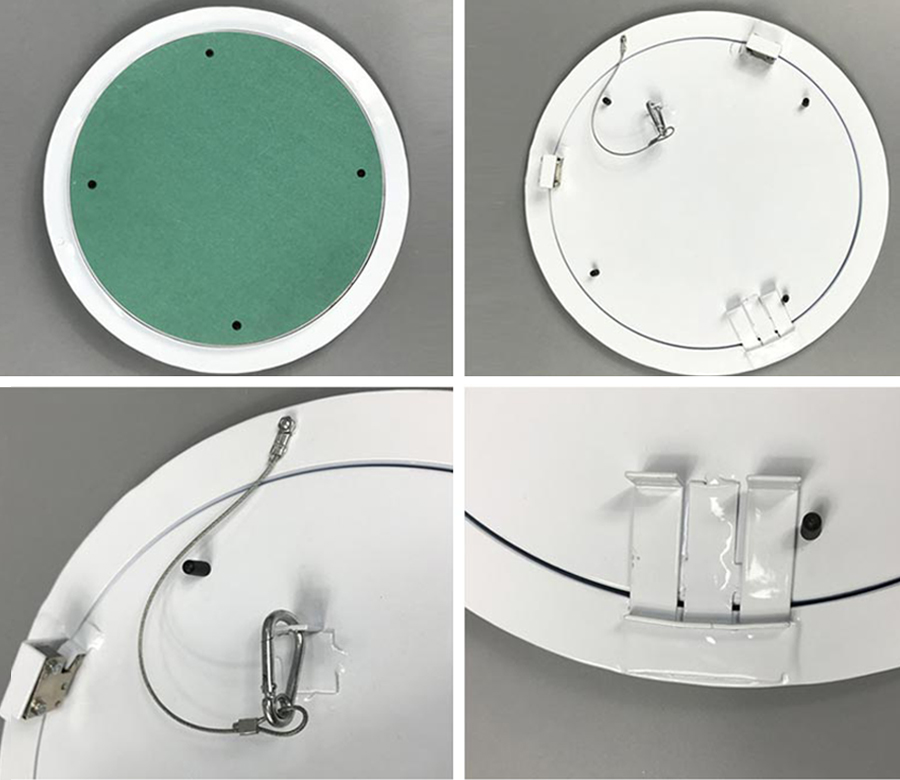

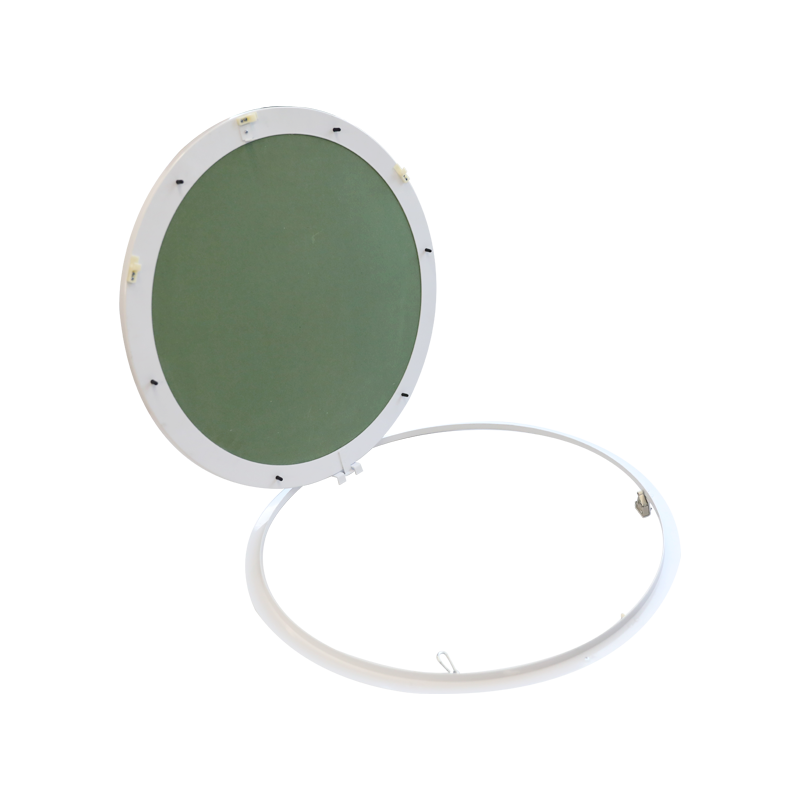

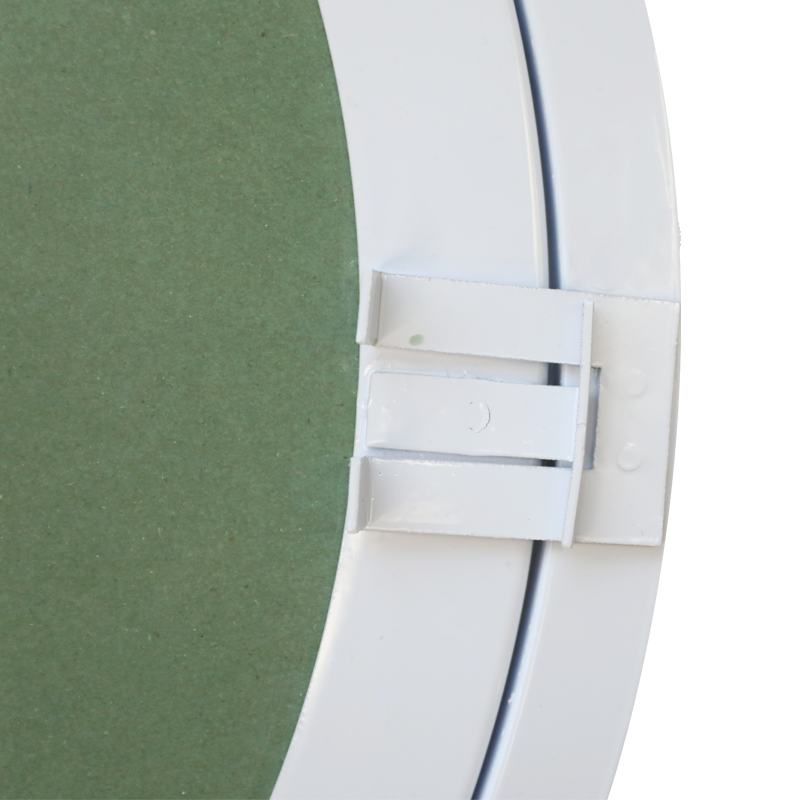

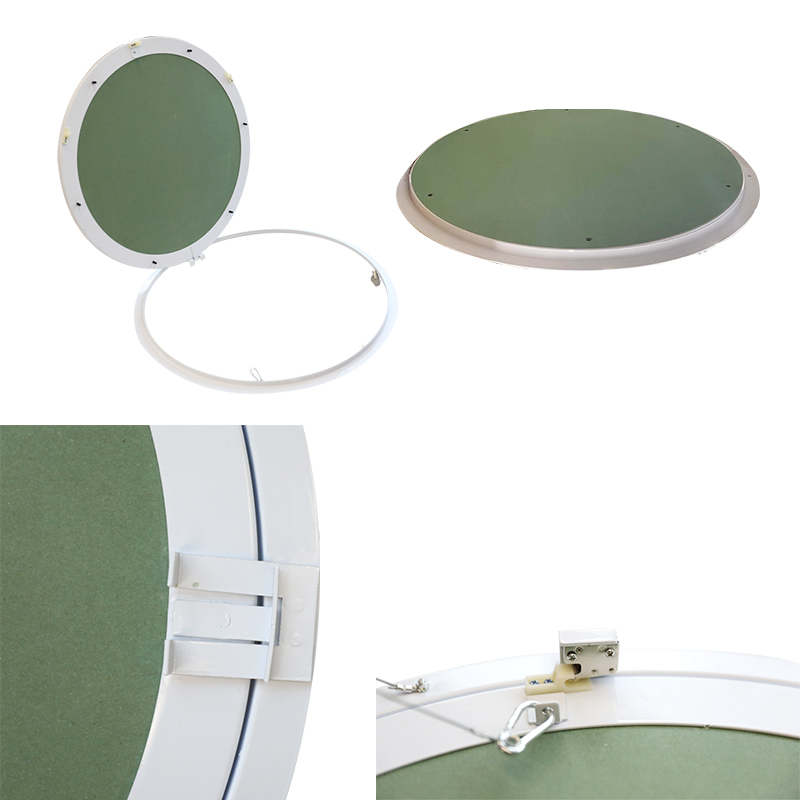

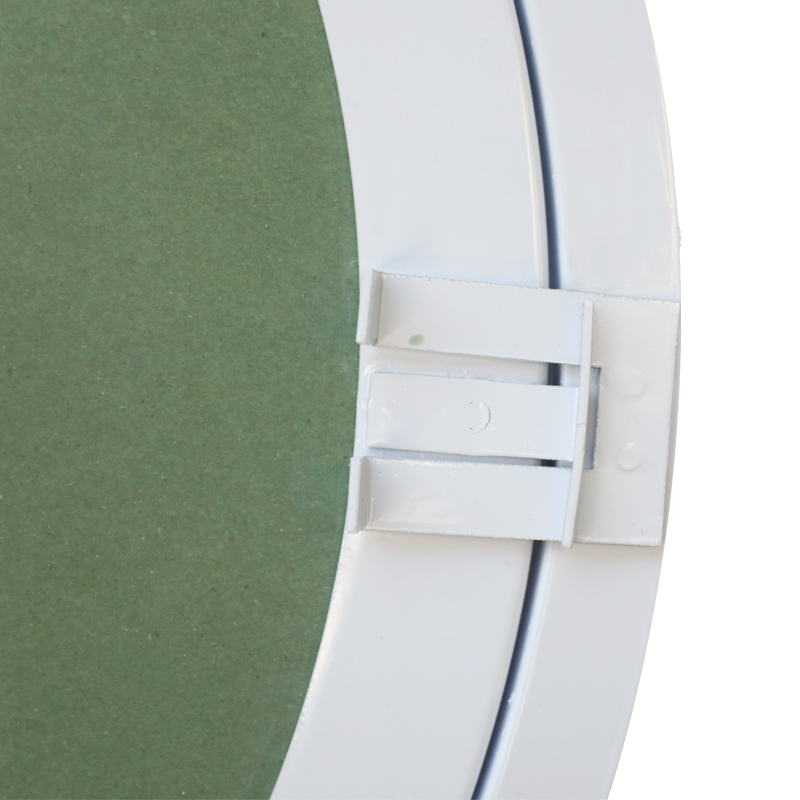

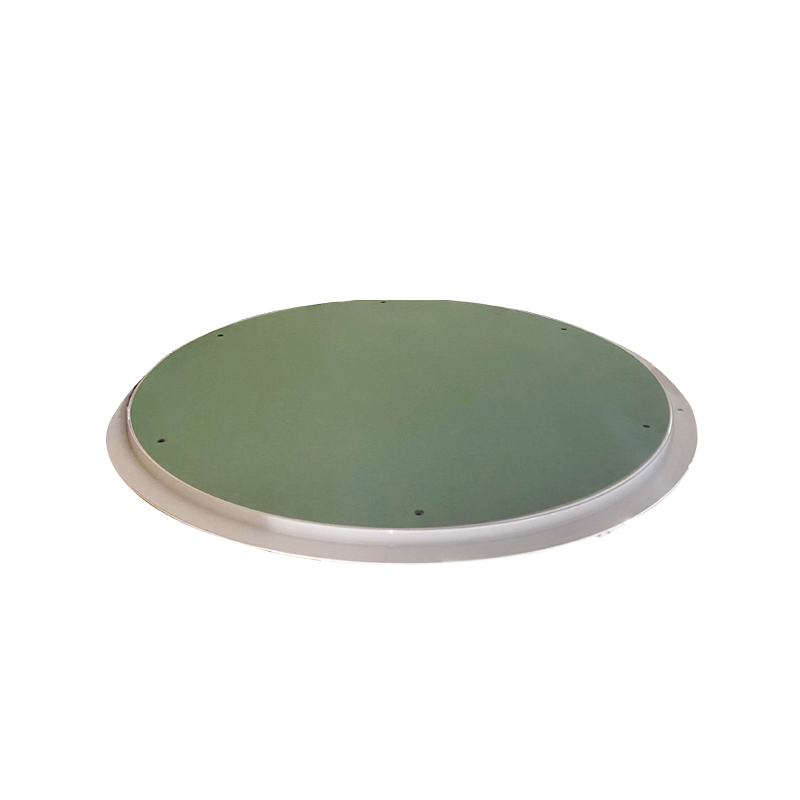

    Product details

    Packing
