OEM SS-AP111 Fire Rated Access Panel

We are focus on practical design and technology combination,
and make efforts to grow in the continuous upgrading.

Home / Product / STEEL ACCESS PANEL / SS-AP111 Fire Rated Access Panel
Products

Categories

  • SS-AP111 Fire Rated Access Panel
  • SS-AP111 Fire Rated Access Panel
  • SS-AP111 Fire Rated Access Panel
  • SS-AP111 Fire Rated Access Panel
  • SS-AP111 Fire Rated Access Panel

    • SS-AP111 Fire Rated Access Panel

    Location: Huzhou,China
    Packing details: PP bag ,white box, outer carton; Blister , carton
    Brands: OEM
    Certificate: CE,SONCAP SGS,CCC
    Terms of payment: Consultation
    Minimum order quantity: 1000pcs
    Delivery: By sea, by air , by courtier
    Delivery time: 25 days
    Contact Us

    Products Description

    NEW DESING FIRE RATED ACCESS PANEL

    Description:

    1. Fire rated access panel for wall or ceiling application
    2. 5mm galvanized steel frame
    3. White powder coating finish or special color available
    4. High durability and corrosion protection

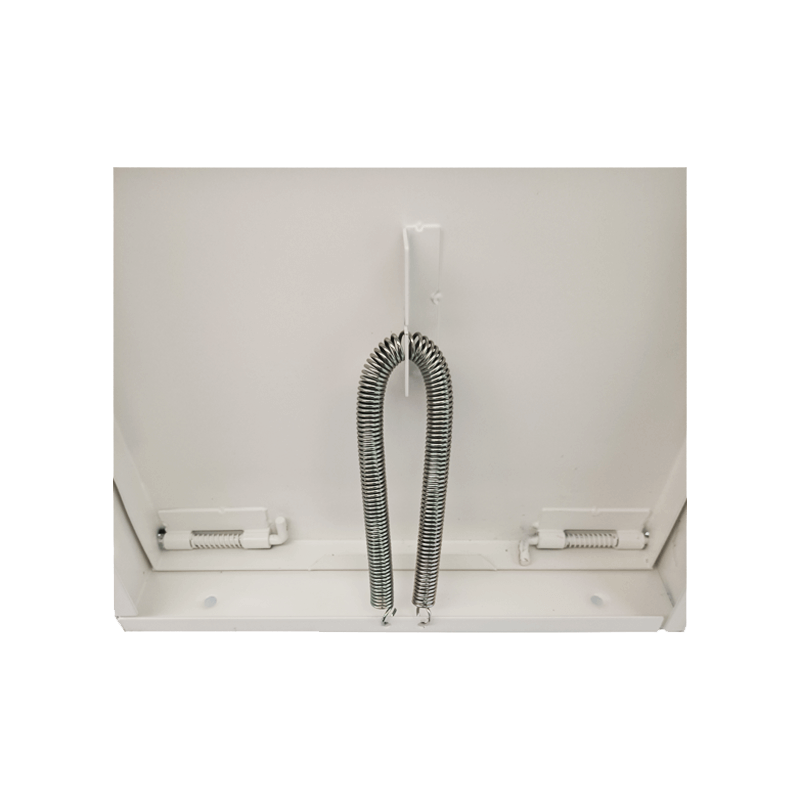

    5. Spring hinge, removable door
    6. Install by screws from the holes on the frame
    7. Lock: Spring lock with key
    8. Standard size: 20×20/30×30/40×40/50×50/60×60
    9. All size with welded frame
    10. Customized size available
    11. Packaging: Each piece with one bubble bag, then put into carton

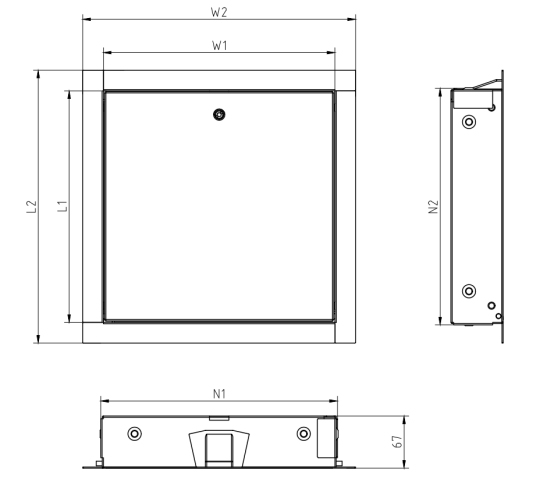

    SS-AP111
    Nominal size
    (mm)
    Neck size
    N1×N2(m)
    Opening size
    w1×L1(mm)
    Overall size
    W2×L2(mm)
    200×200 203×203 197×197 250×250
    300×300 303×303 297×297 350×350
    400×400 403×403 397×397 450×450
    500×500 503×503 497×497 550×550
    600×600 603×603 597×597 650×650
