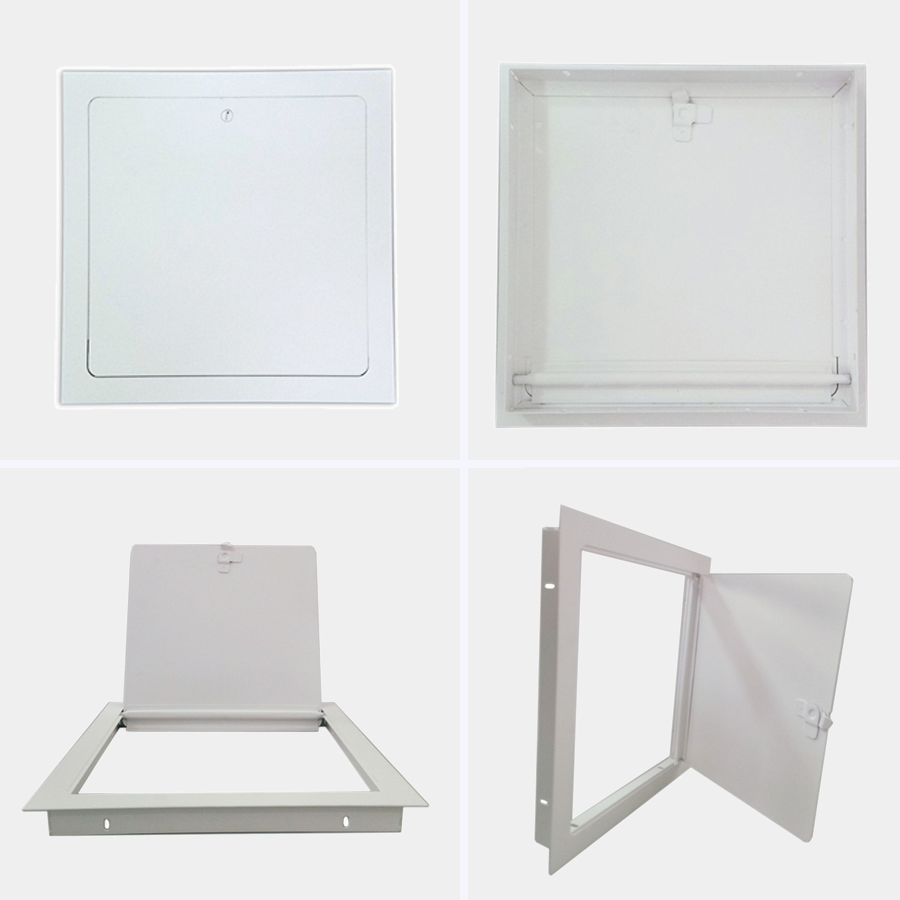

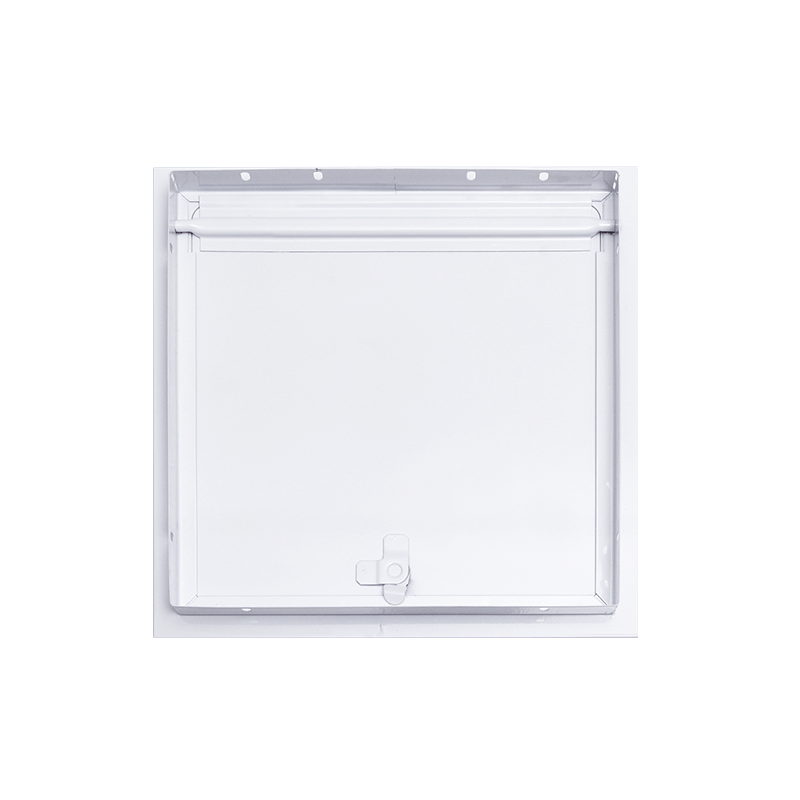

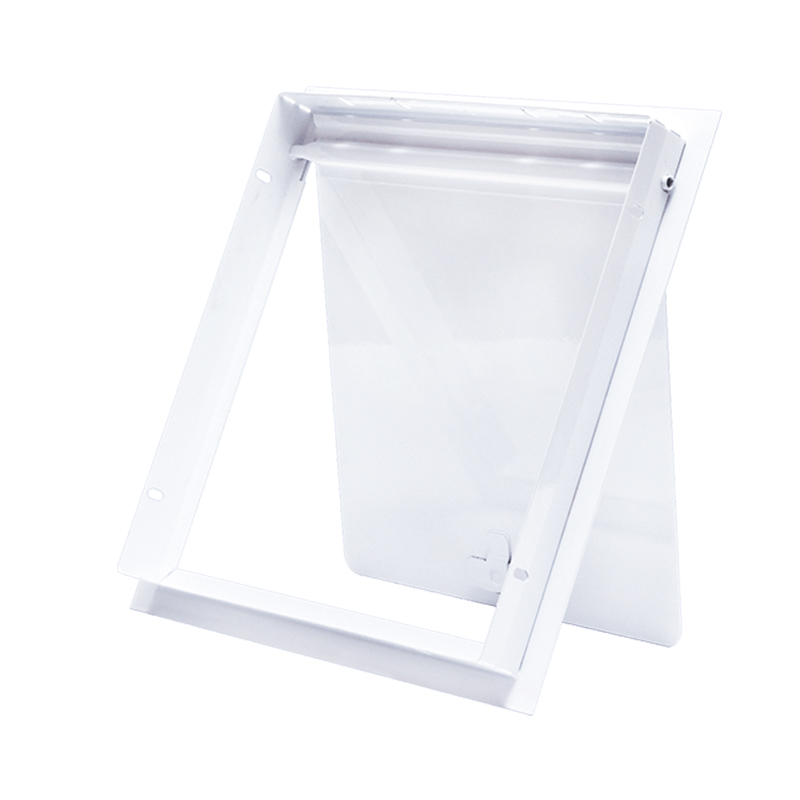

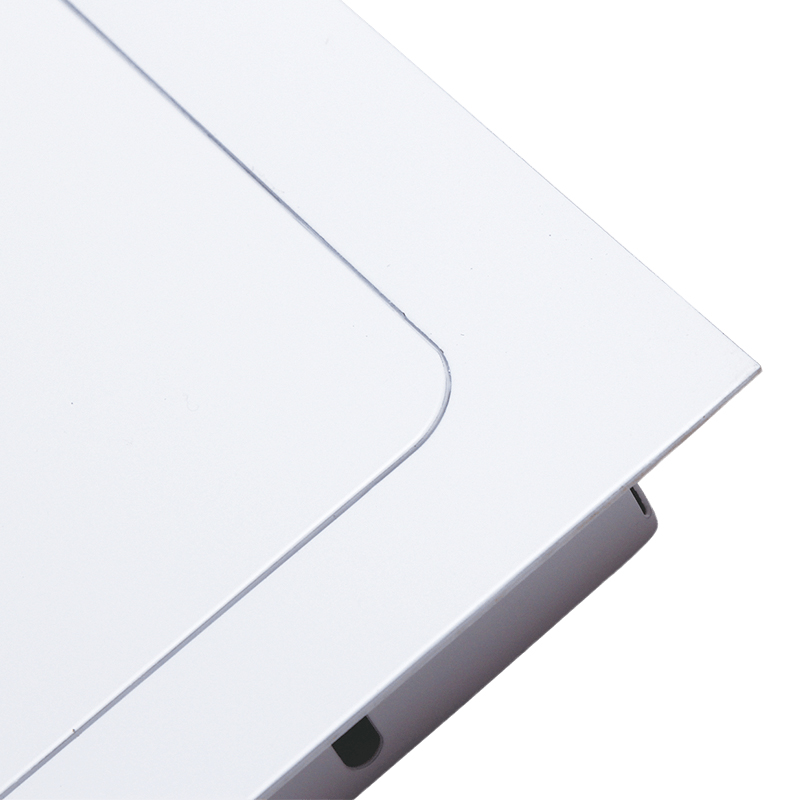

SS-AP240 Steel Access Panel In North America

HOT SALES STEEL ACCESS PANEL IN NORTH AMERICA

1. Designed for wall or ceiling installation.

2. Constructed with a sturdy galvanized steel frame and lid.

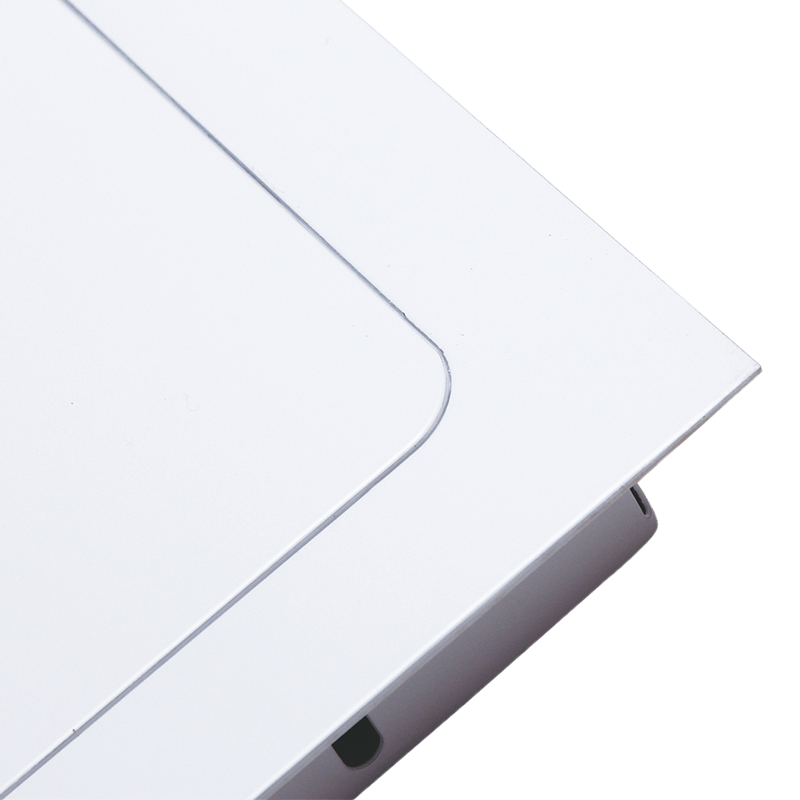

3. Features a flange frame finish.

4. Available in white powder coating or custom colors.

5. Offers high durability and corrosion resistance.

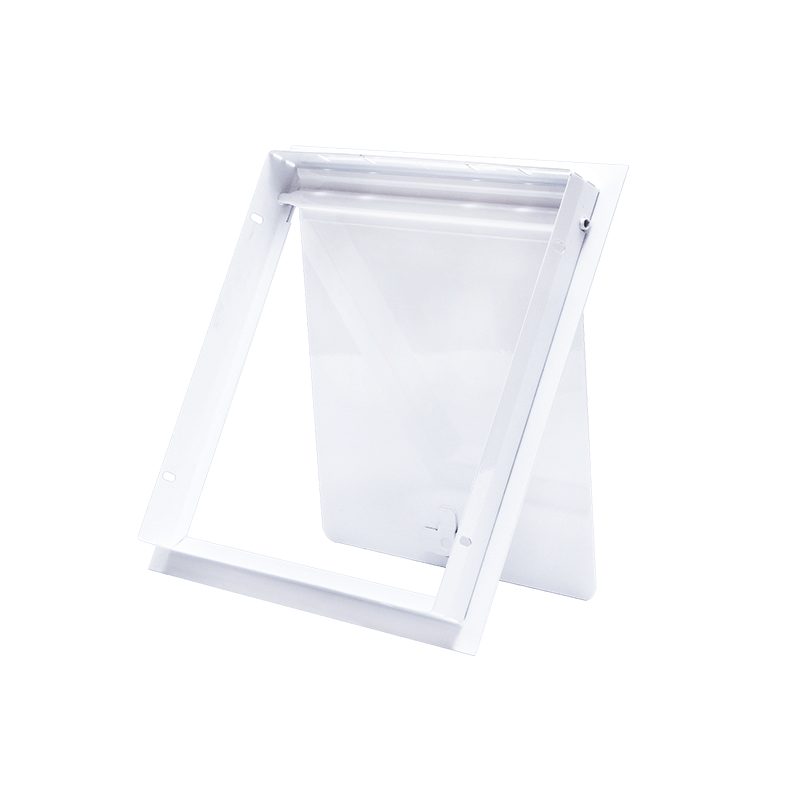

6. Equipped with a non-removable steel bar hinge door.

7. Installed using screws through pre-drilled frame holes.

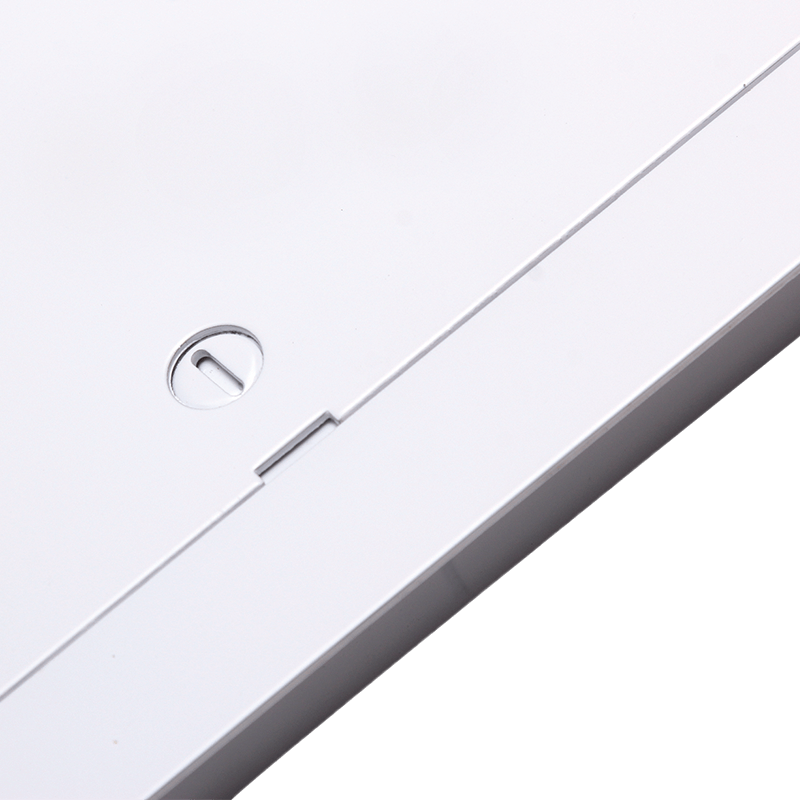

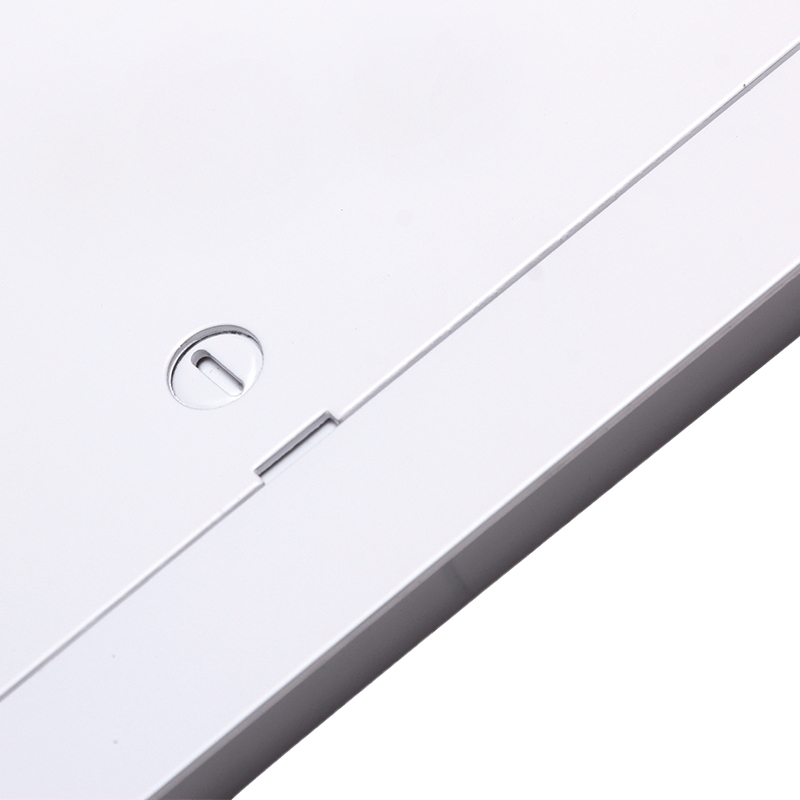

8. Includes a slotted lock mechanism.

9. Standard sizes: 20×20, 30×30, 40×40, 45×45, 50×50, 60×60.

10. All frames are welded for structural integrity.

11. Custom sizes are available upon request.

12. Packaging: Each unit is individually poly-bagged, shrink-wrapped, and boxed in cartons.

Advantage:

No painting required after installation.

PREV：SS-AP260 Set Bead Steel Access Panel With Gypsum Board NEXT：SS-AP001 Access Door

Product details
Product drawings
Inquiry

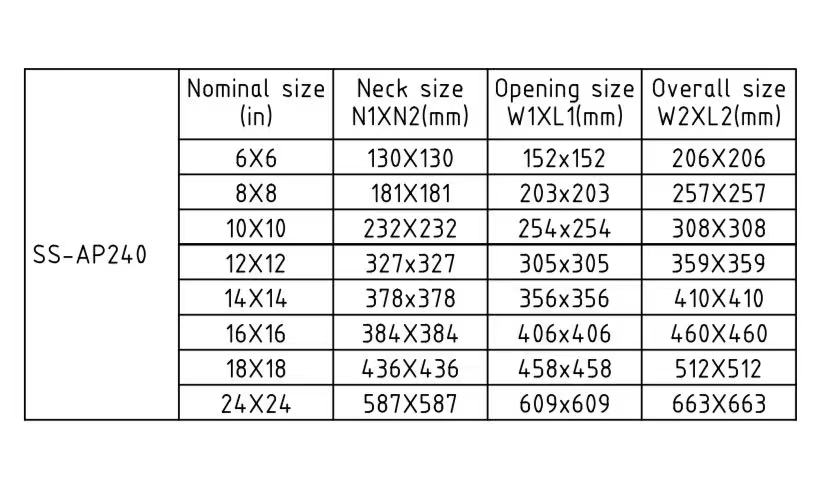

Regular size

Item	Neck Size(mm)	Neck size N1×N2(mm)	Opening size W1×L1(mm)	Overall size W2×L2(mm)
SS-AP240	6×6	130×130	152×152	206×206
	8×8	181×181	203×203	257×257
	10×10	232×232	254×254	308×308
	12×12	327×327	305×305	359×359
	14×14	378×378	356×356	410×410
	16×16	384×384	406×406	460×460
	18×18	436×436	458×458	512×512
	24×24	587×587	609×609	663×663
