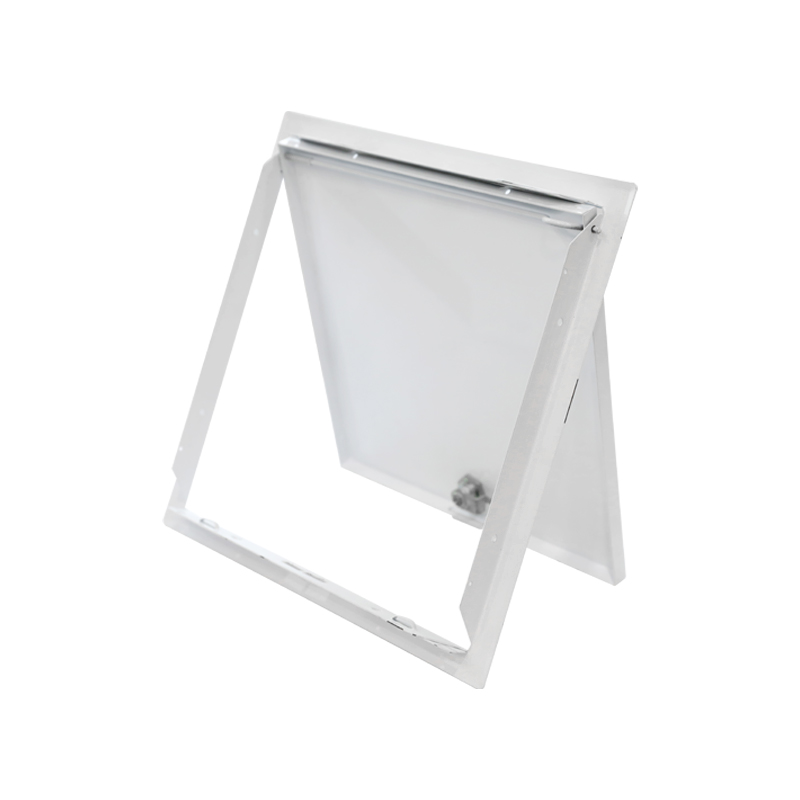

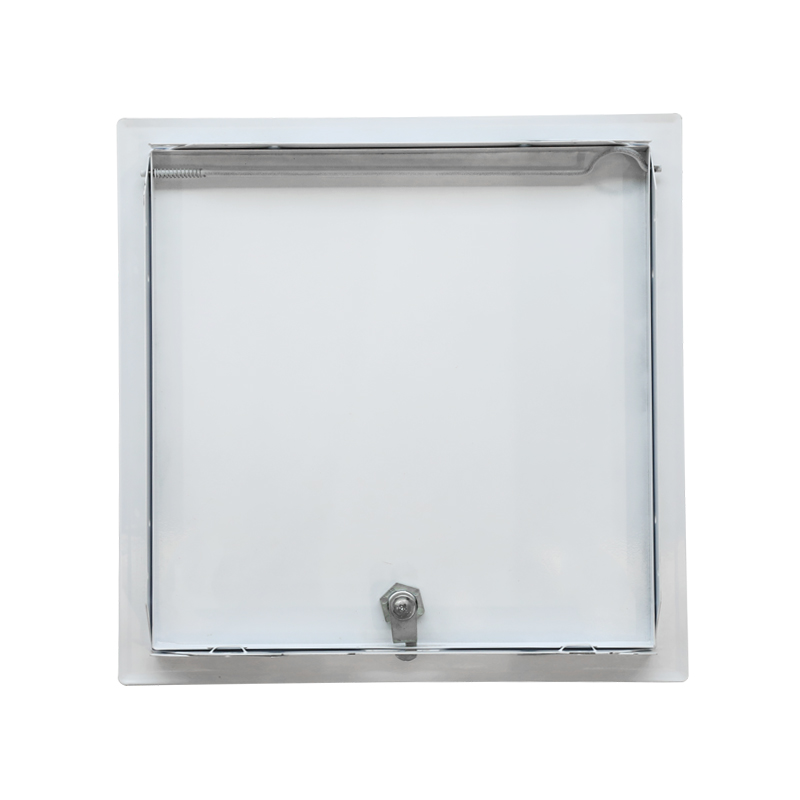

SS-AP210 Steel Access Panel With Key Lock

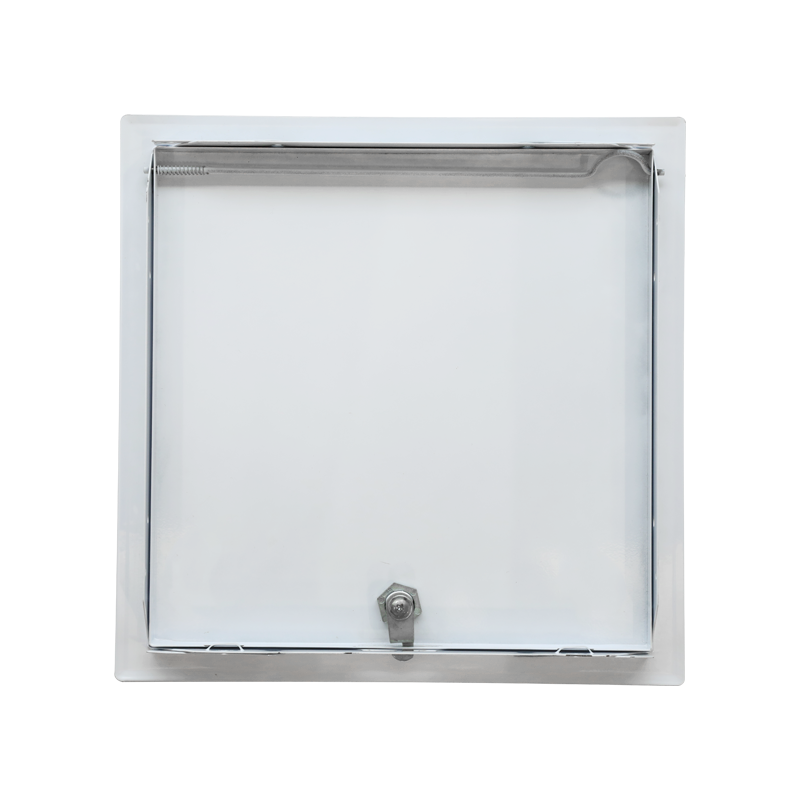

SS-AP210 STEEL ACCESS PANEL WITH KEY LOCK

1. Access panel for wall or ceiling application.

2. 1mm galvanized steel frame and lid.

3. Flange frame finish.

4. White powder coating finish or special color available.

5. High durability and corrosion protection.

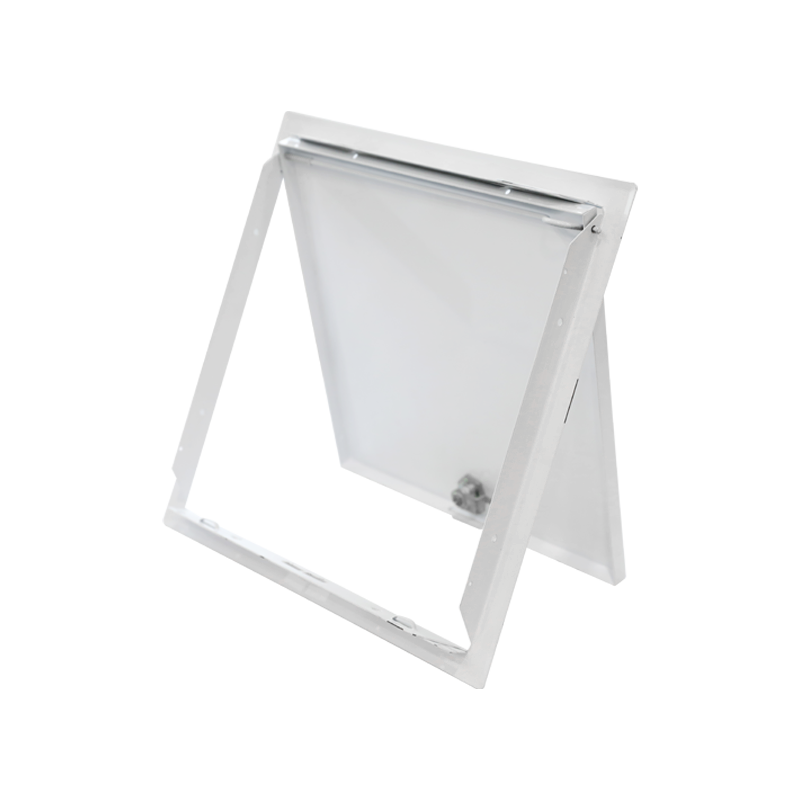

6. Steel bar hinge door removable.

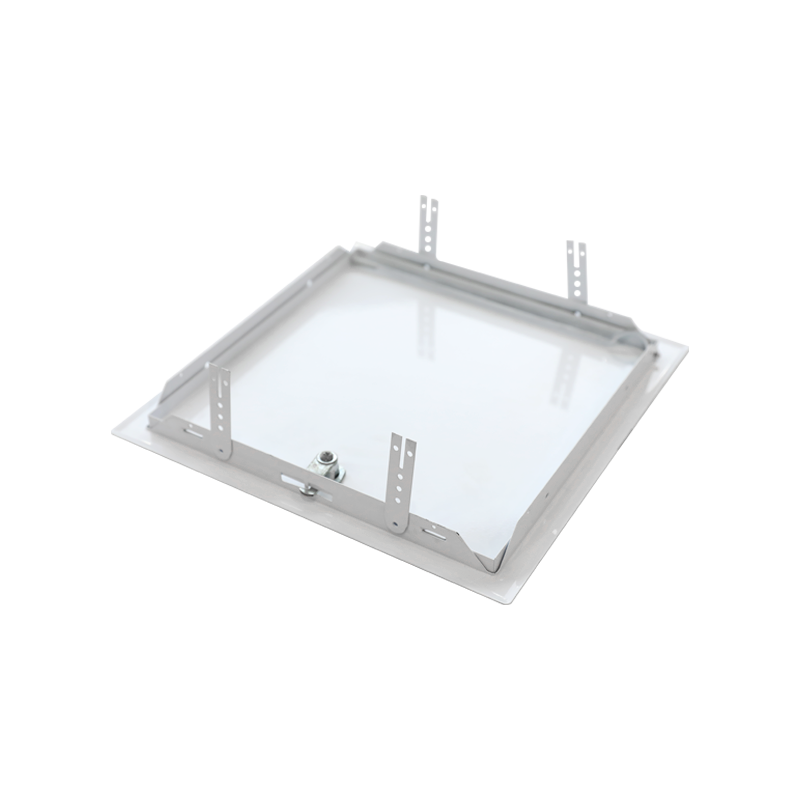

7. Swing tab for installation fixing screw.

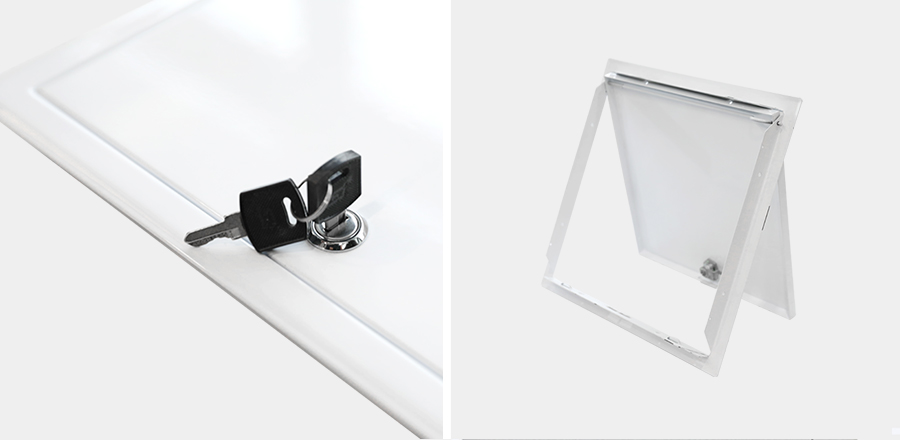

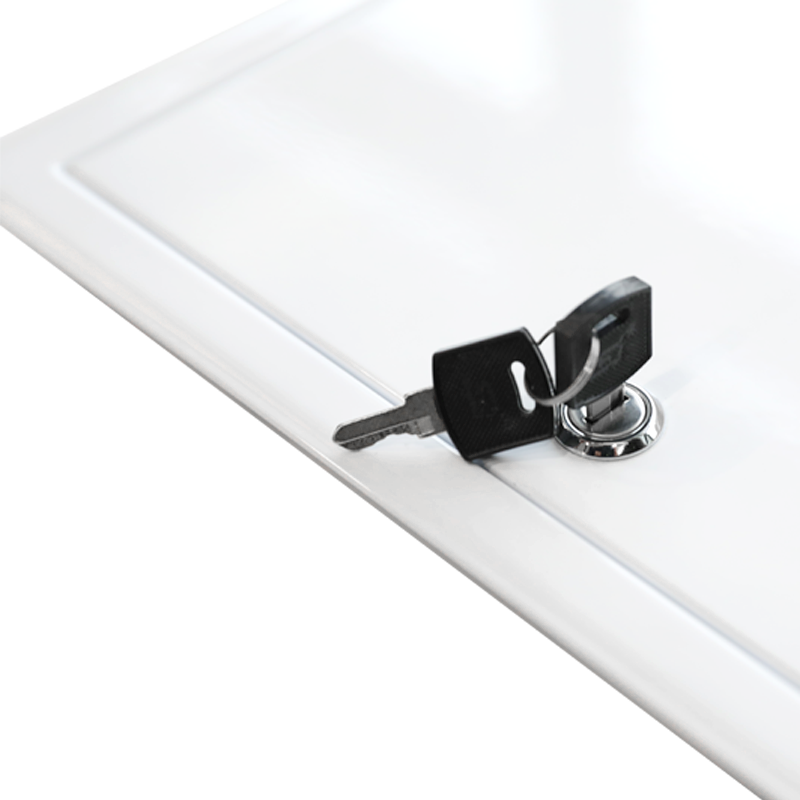

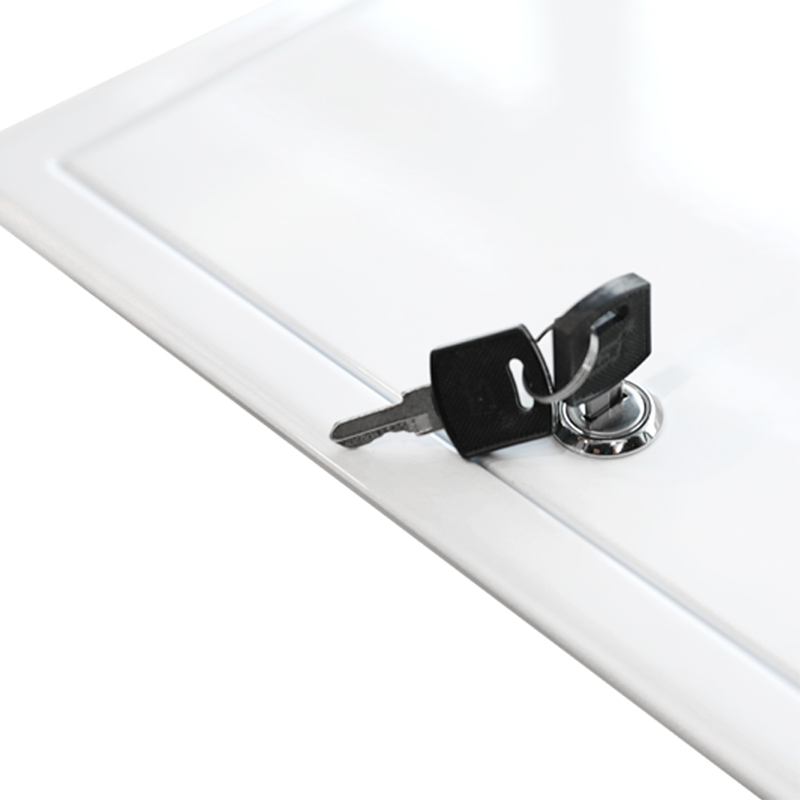

8. Lock: cam lock with key.

9. Standard size : 20x20/30x30/40x40/45x45/50x50/60x60.

10. 20x20/30x30/40x40 with one piece punched frame, 50x50/60x60 with welded frame.

11. Customized size available.

12. Packaging: Each piece with a key is put into a poly bag with shrink wrap, then put into a carton.

PREV：SS-AP300SB Australia New Design Set Bead Access Panel NEXT：SS-AP220 Steel Access Panel With Square Lock

Product details
Product drawings
Inquiry

Regular size

Item	Neck Size(mm)	Opening Size W1×L1(mm)	Overall Size W2×L2(mm)
SS-AP210	200×200	195×195	248×248
	300×300	295×295	348×348
	400×400	395×395	448×448
	500×500	495×495	548×548
	600×600	595×595	648×648
