SS-DP005 Square Pipeline Access Panel

Description

1. Access Doors are designed to provide quick and easy access to duct maintenance, smoke, and volume control dampers.
2. 0.5 mm galvanized steel and 1.5mm strong accessories cam latches.
3. Easy to be installation and maintenance.
4. Four around insulation with 3mm EVA seal.
5. Inside with the heat proof material, custom design also available.
6. Size: custom size is available.
7. Package: each product with one bag, then into carton, pallet available.

PREV：SS-A41R Circular Access Panel NEXT：SS-DP006 Oval Pipeline Access Panel

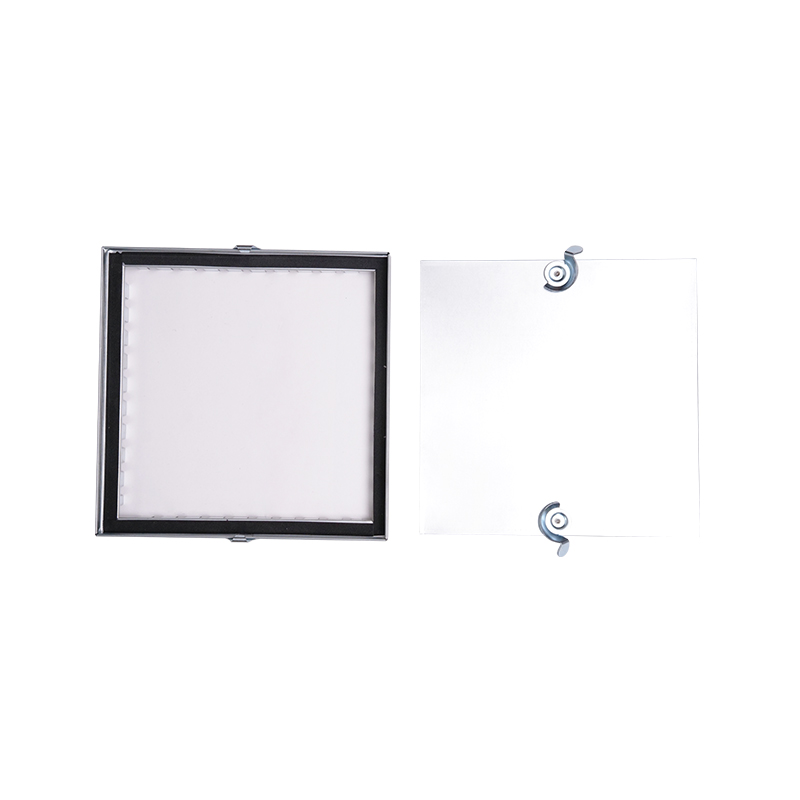

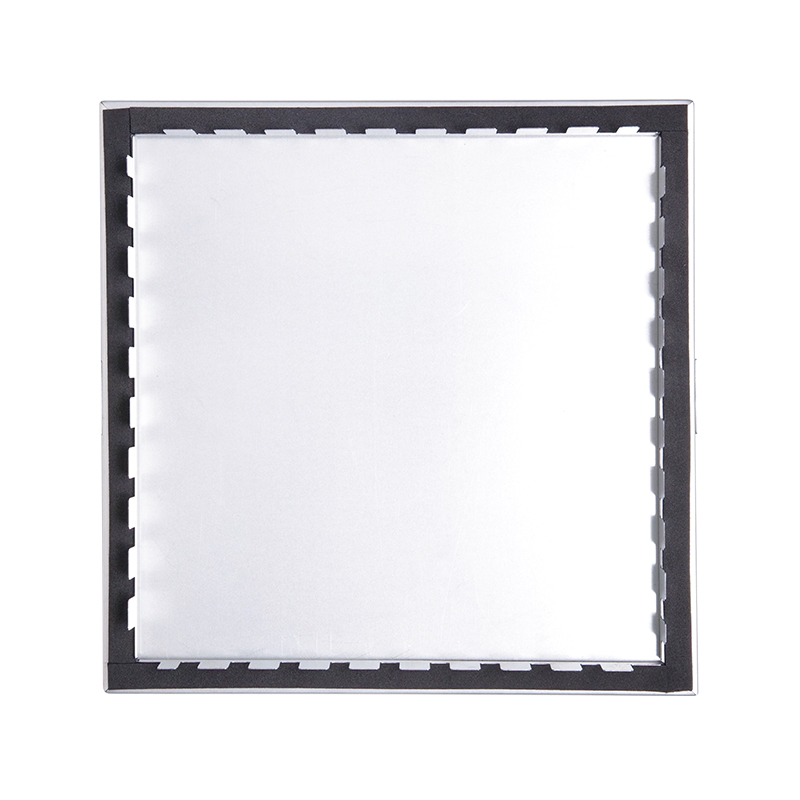

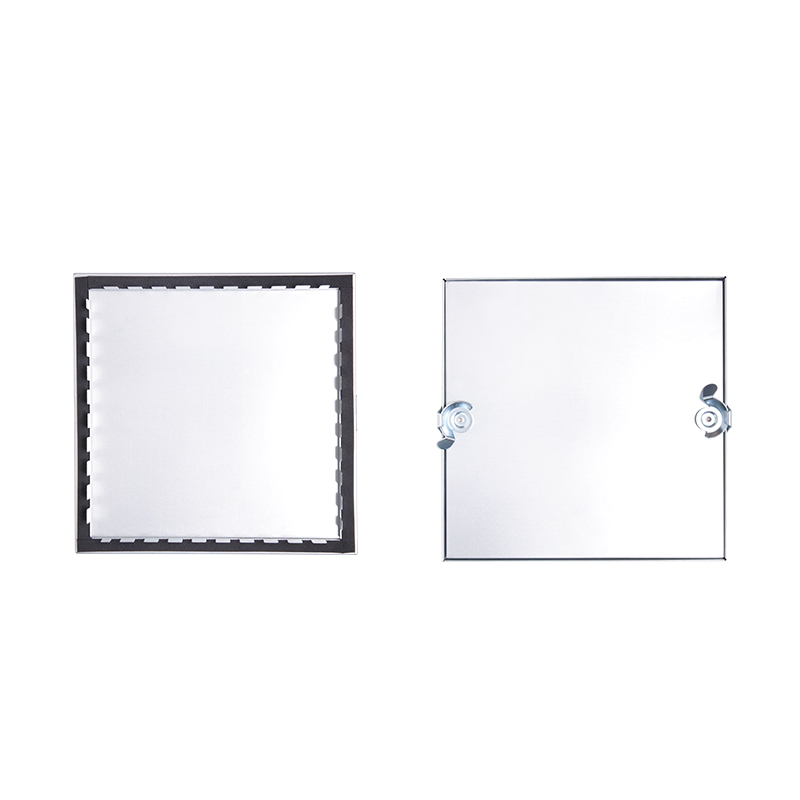

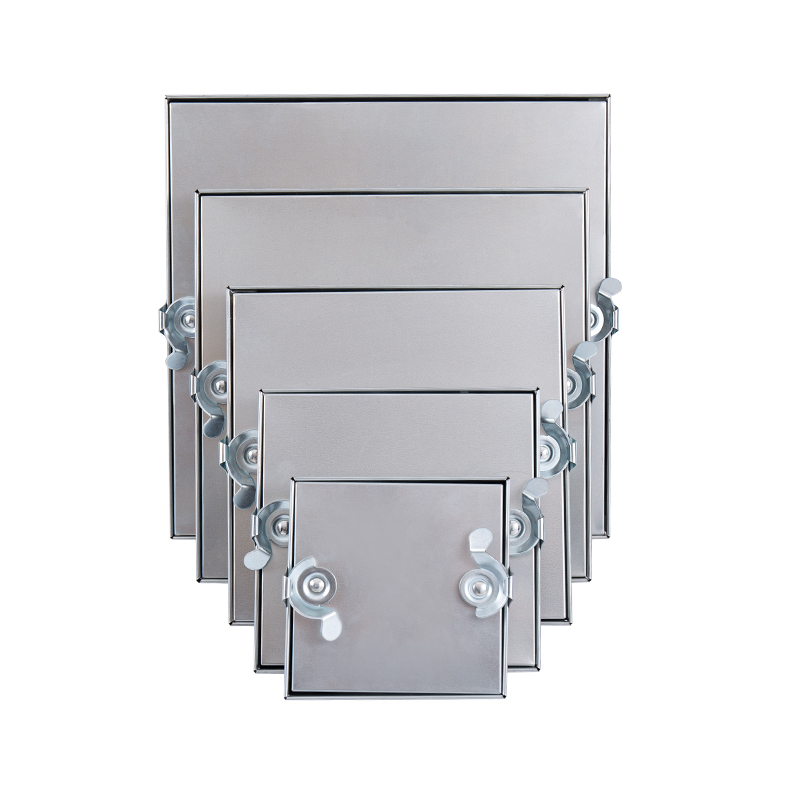

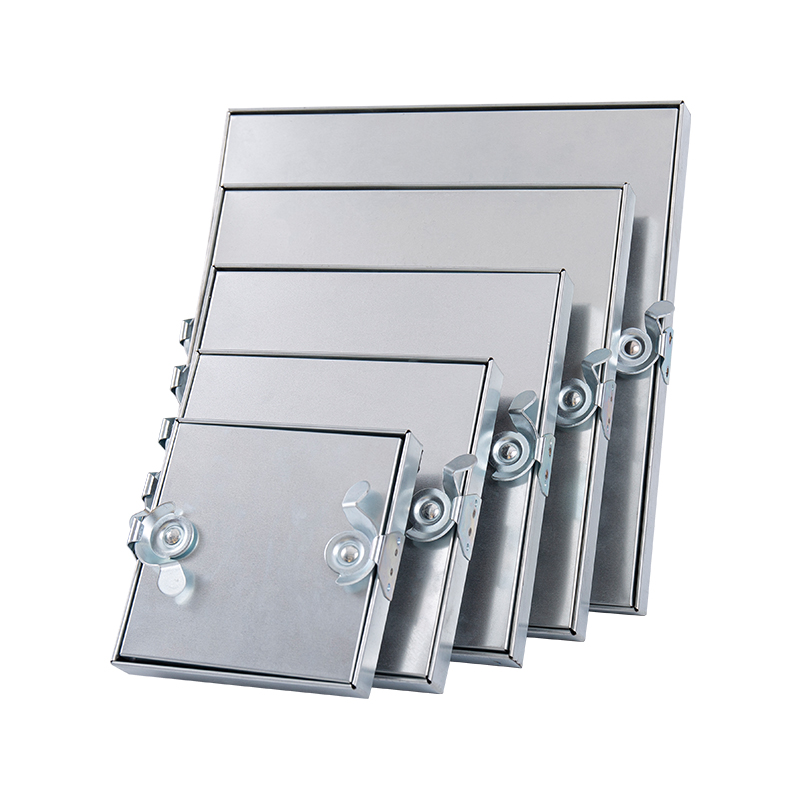

Product details

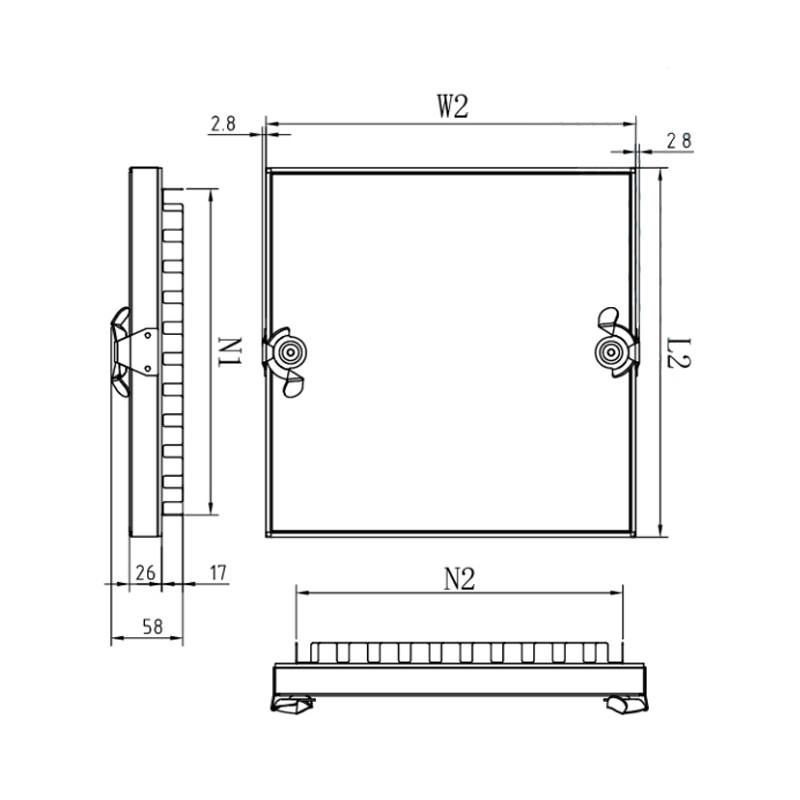

Product drawings
Inquiry

Regular size

Item	Size(mm)	Neck Size N1 x N1(mm)	Overall Size W2 x L2(mm)
SS-DPO05	150x150	115X115	150x150
	200x125	165X90	200x125
	200x200	165X165	200x200
	250x250	215X215	250x250
	300x150	265X115	300x150
	300x200	265X165	300x200
	300X300	265X265	300x300
	350x350	315X315	350x350
	400x200	365X165	400x200
	400x300	365X265	400x300
	400x400	365x365	400x400
	450x300	415X265	450x300
	450x450	415x415	450x450
	500x500	465x465	500x500
	600x300	565x265	600x300
	600x600	565x565	600x600
