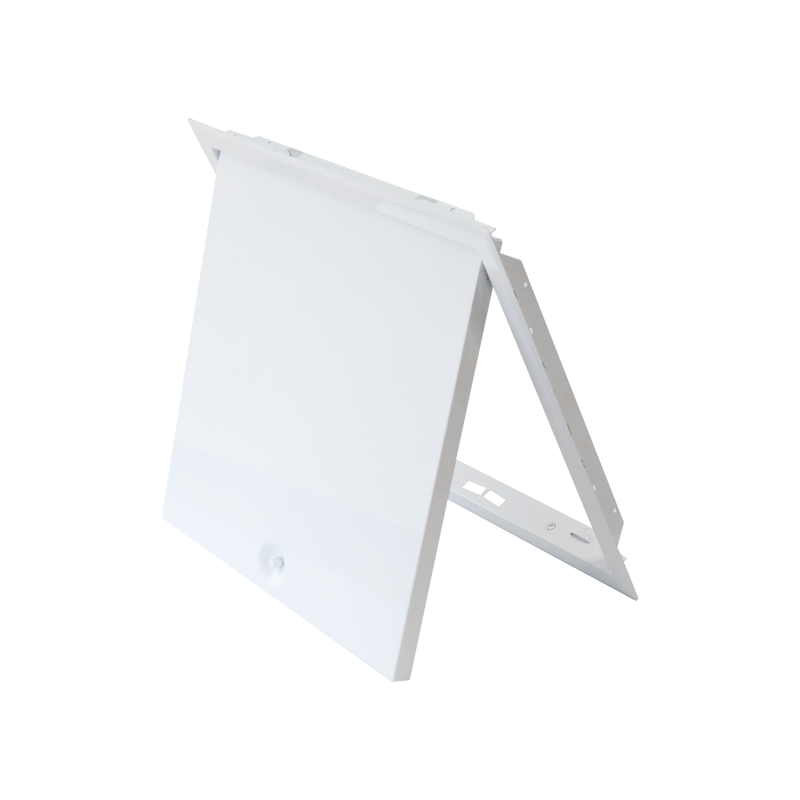

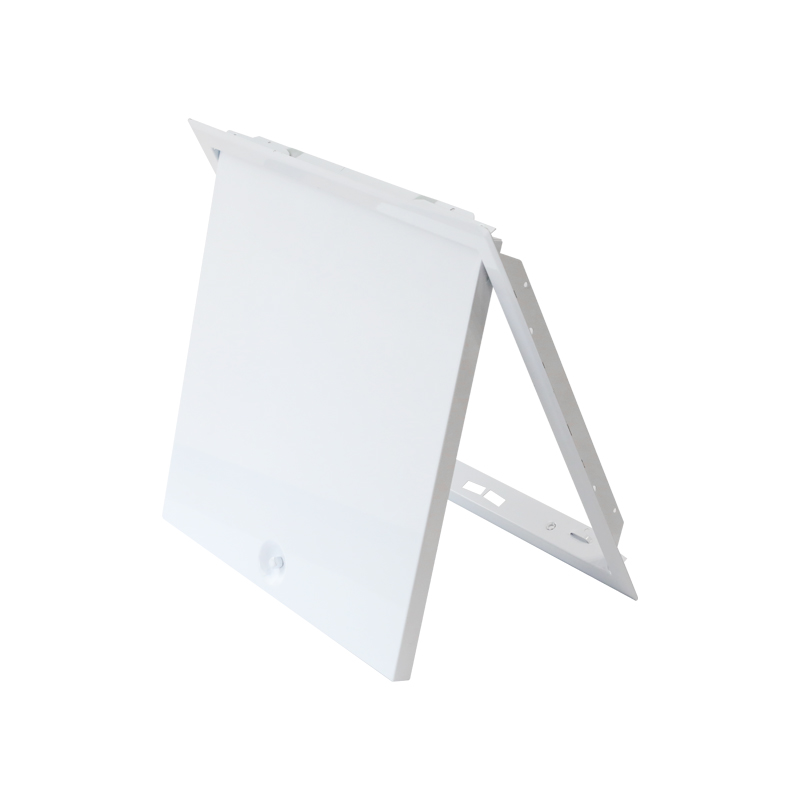

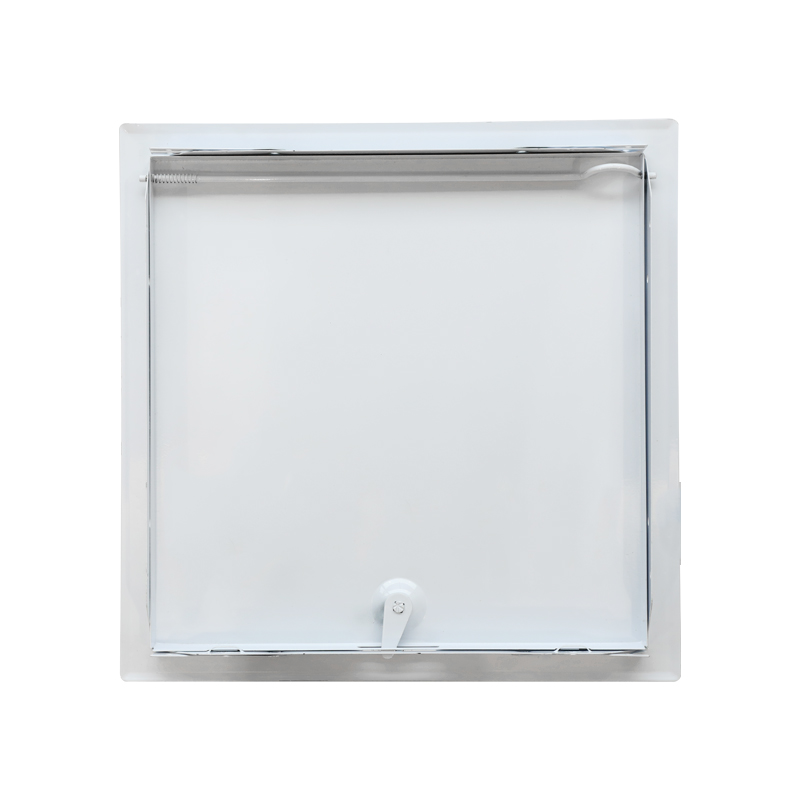

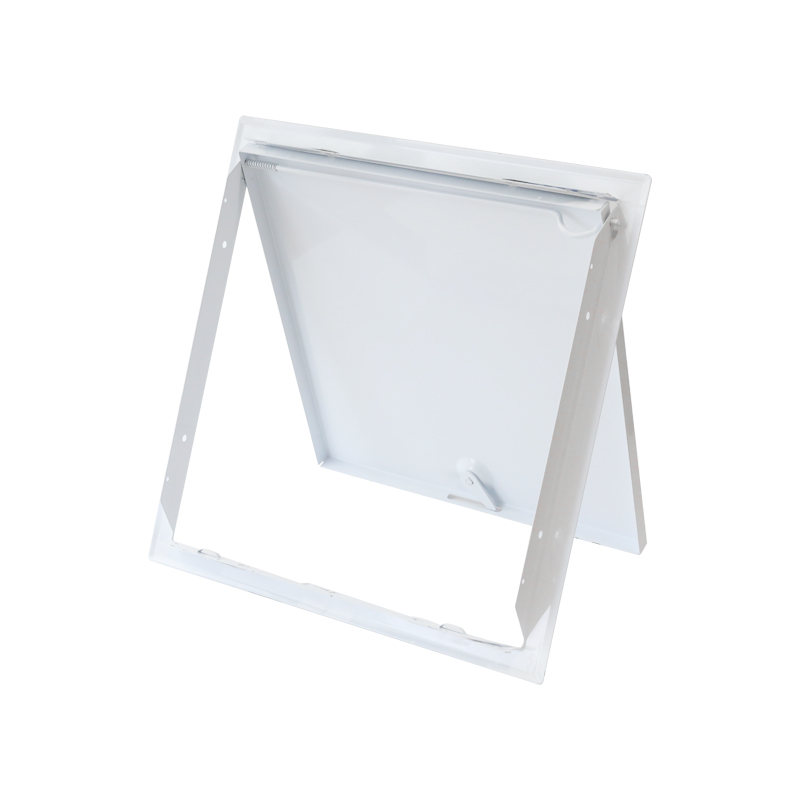

SS-AP220 Steel Access Panel With Square Lock

STEEL ACCESS PANEL WITH SQUARE LOCK

1. Access panel for wall or ceiling application.

2. 1mm galvanized steel frame and lid.

3 . Flange frame finish.

4. White powder-coated finishes or special colors are available.

5. High durability and corrosion protection.

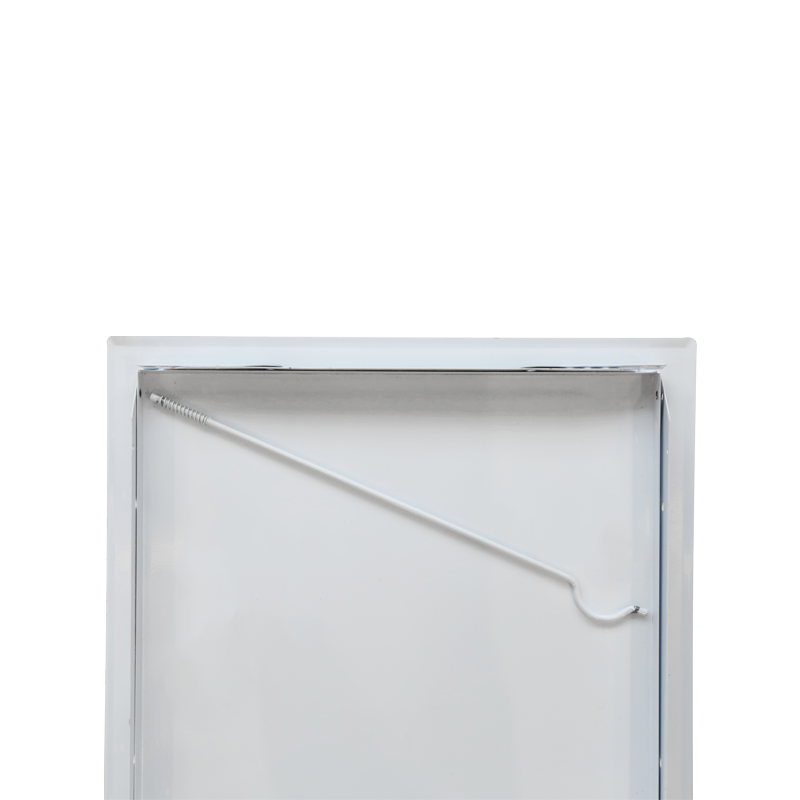

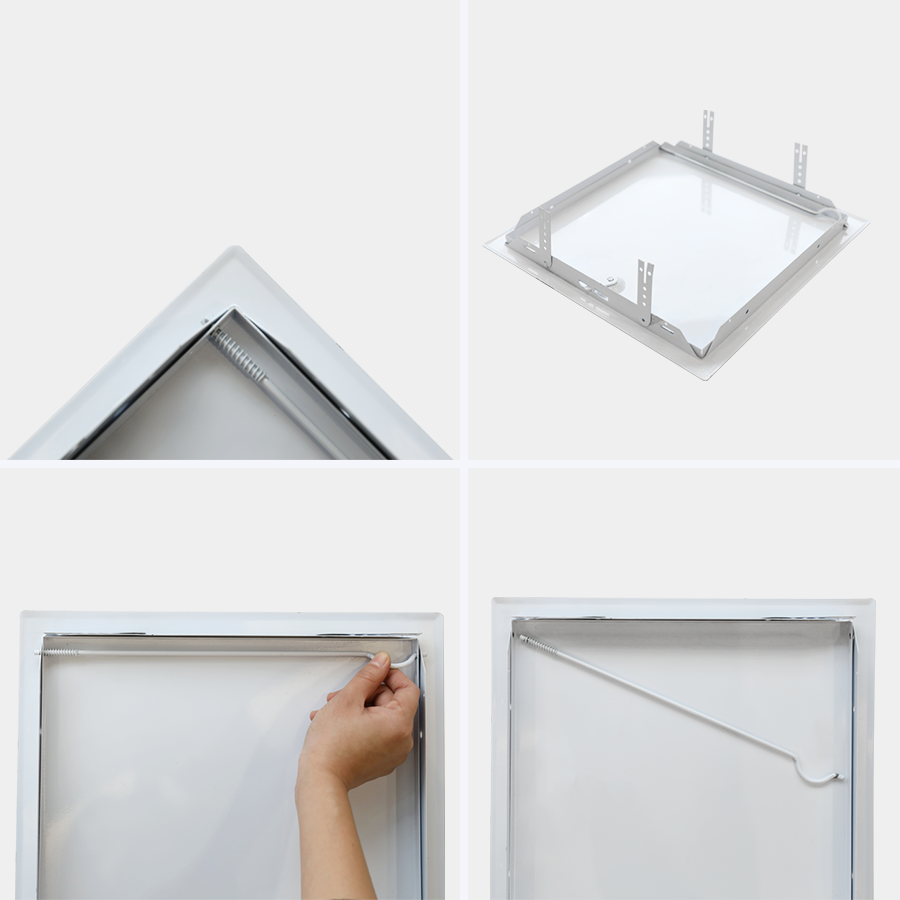

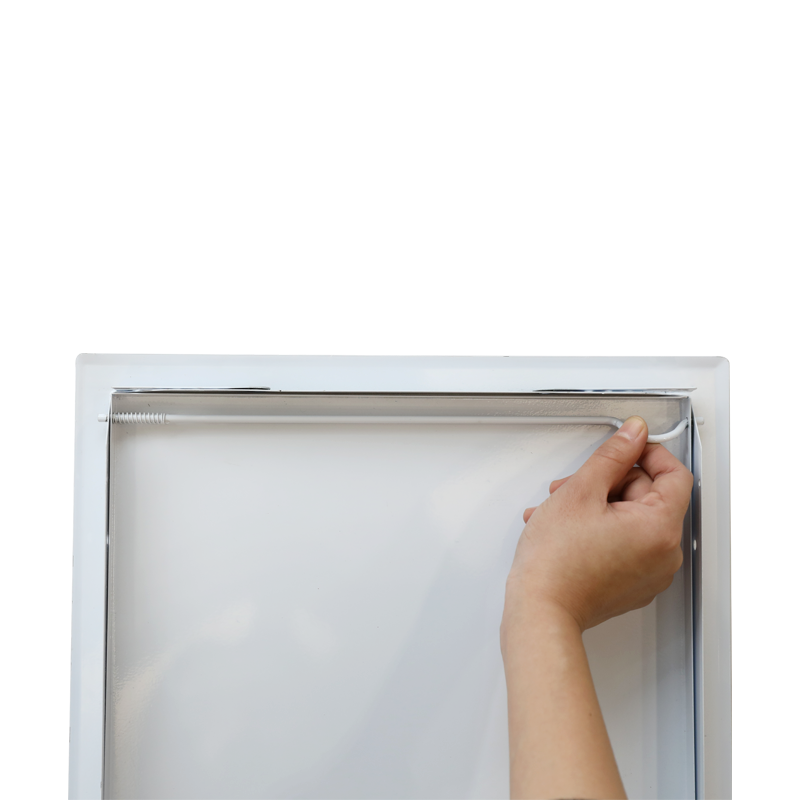

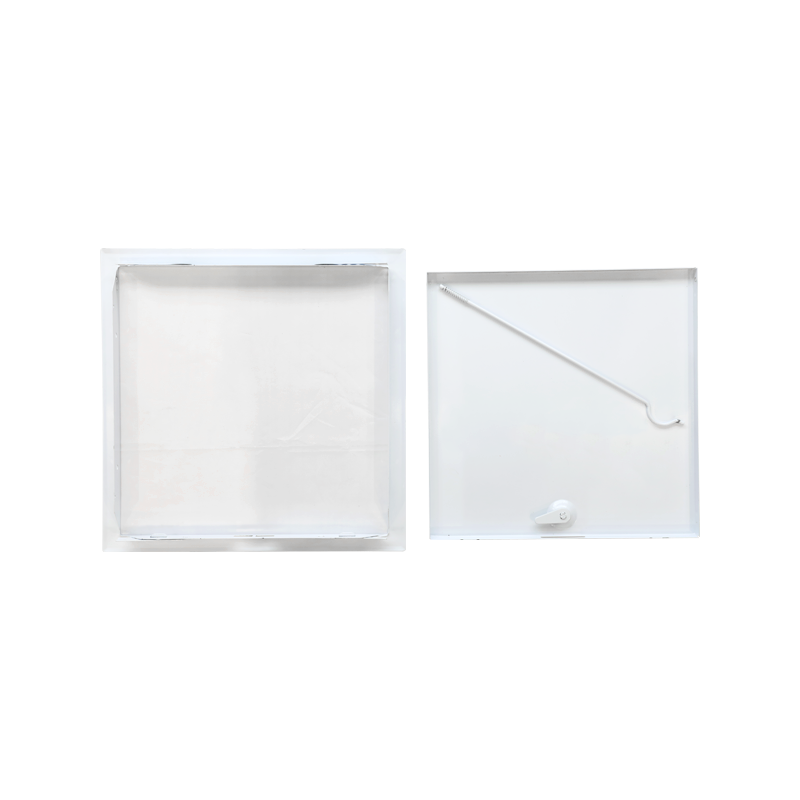

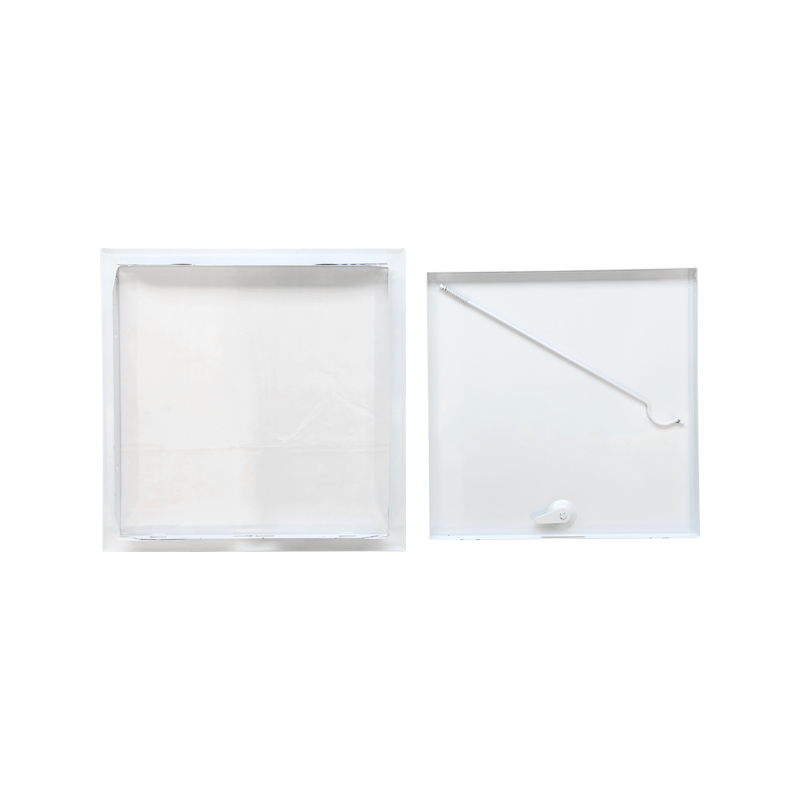

6. The steel-bar hinge doors are removable.

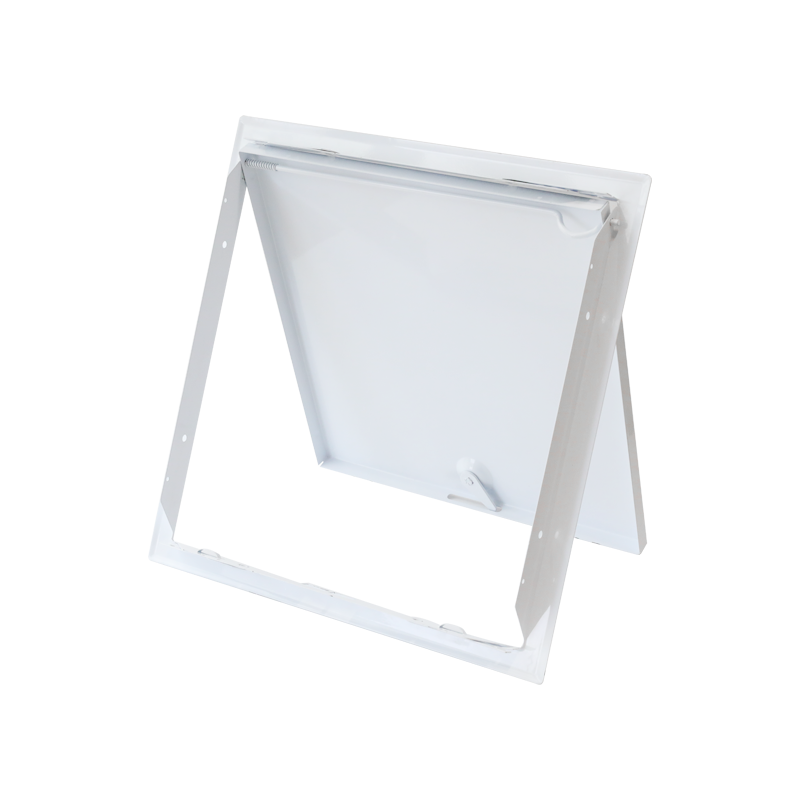

7. Swing tab for installation fixing screw.

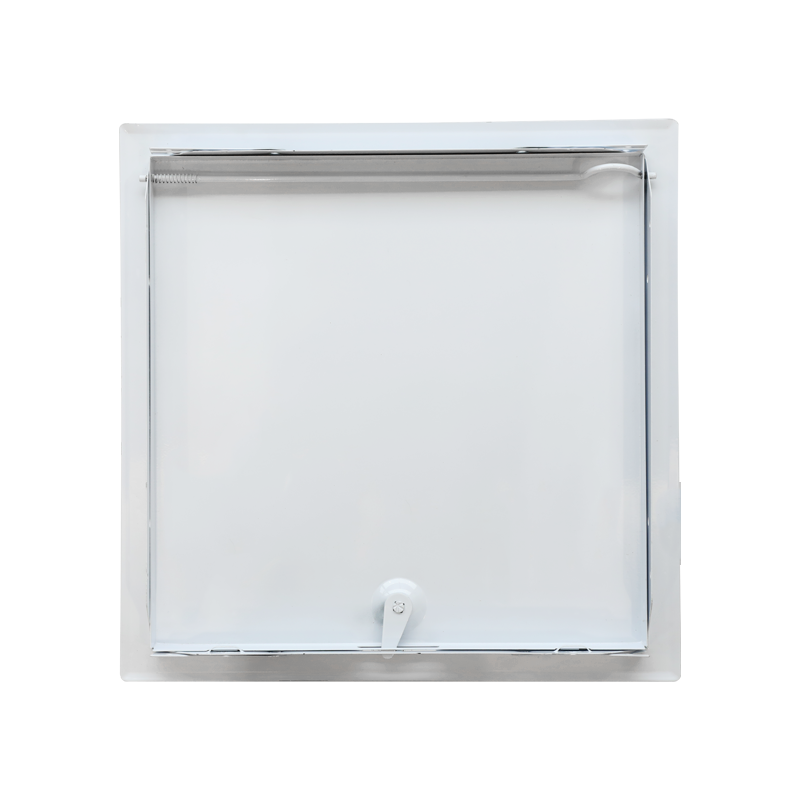

8. Lock: Square cam lock with a plastic key.

9. Standard size: 20x20/30x30/40x40/45x45/50x50/60x60.

10. 20x20/30x30/40x40 with a punched frame, 50x50/60x60 with a welded frame.

11 . Customized size available.

1 2. Packaging: Place each piece in a poly bag with shrink wrap, then into a cardboard box.

PREV：SS-AP210 Steel Access Panel With Key Lock NEXT：SS-AP230 Steel Access Panel With Push Lock

Product details
Product drawings
Inquiry

Regular size

Item	Neck Size(mm)	Opening Size W1×L1(mm)	Overall Size W2×L2(mm)
SS-AP220	200×200	195×195	235×235
	300×300	295×295	335×335
	400×400	395×395	435×435
	500×500	495×495	535×535
	600×600	595×595	635×635
