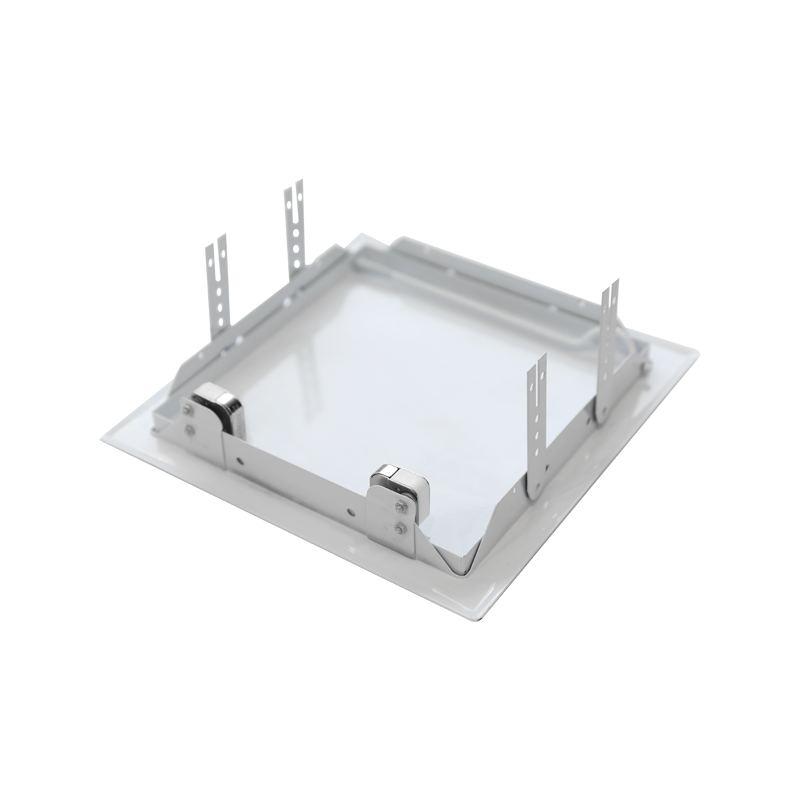

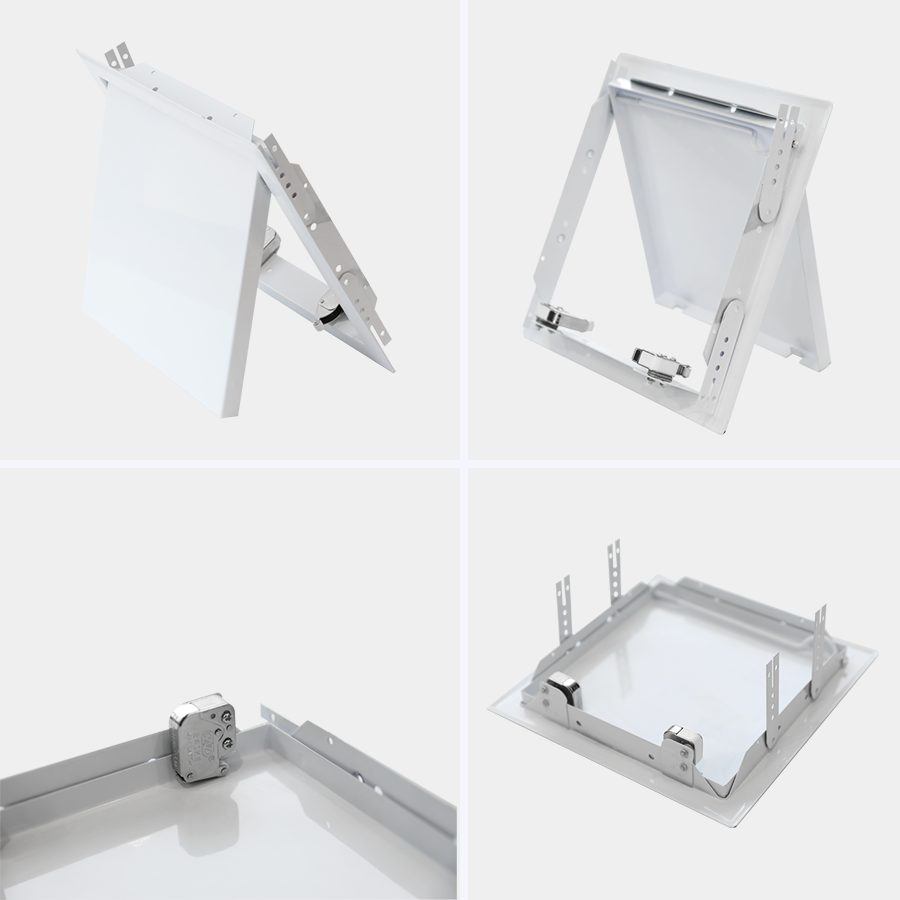

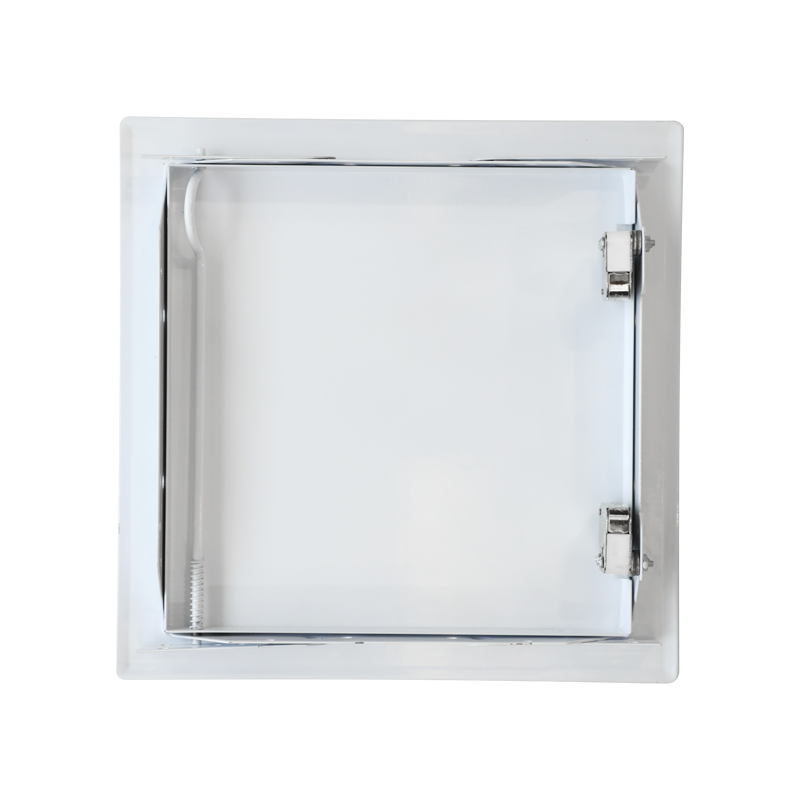

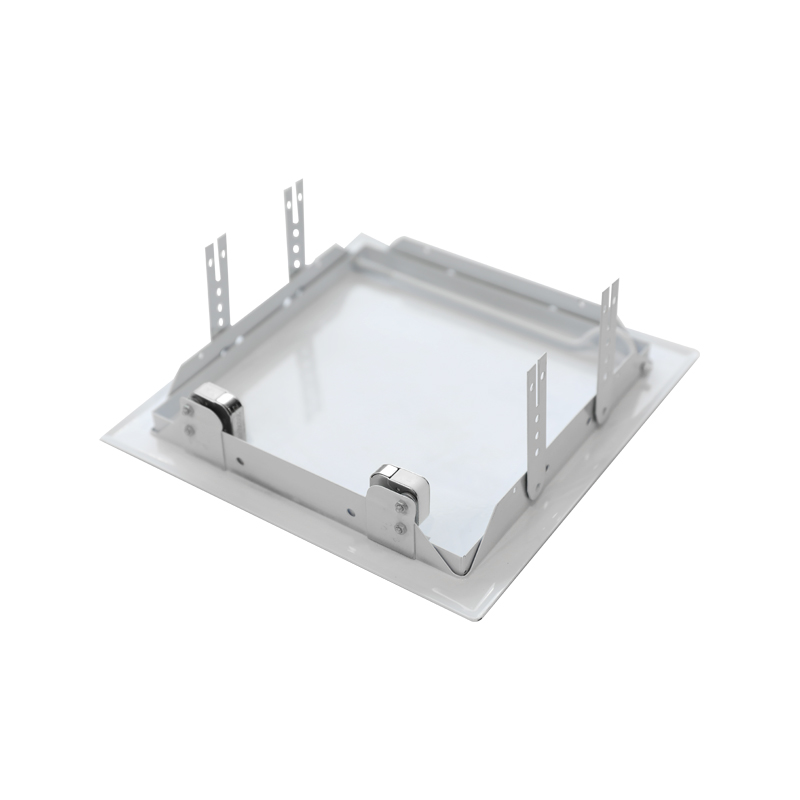

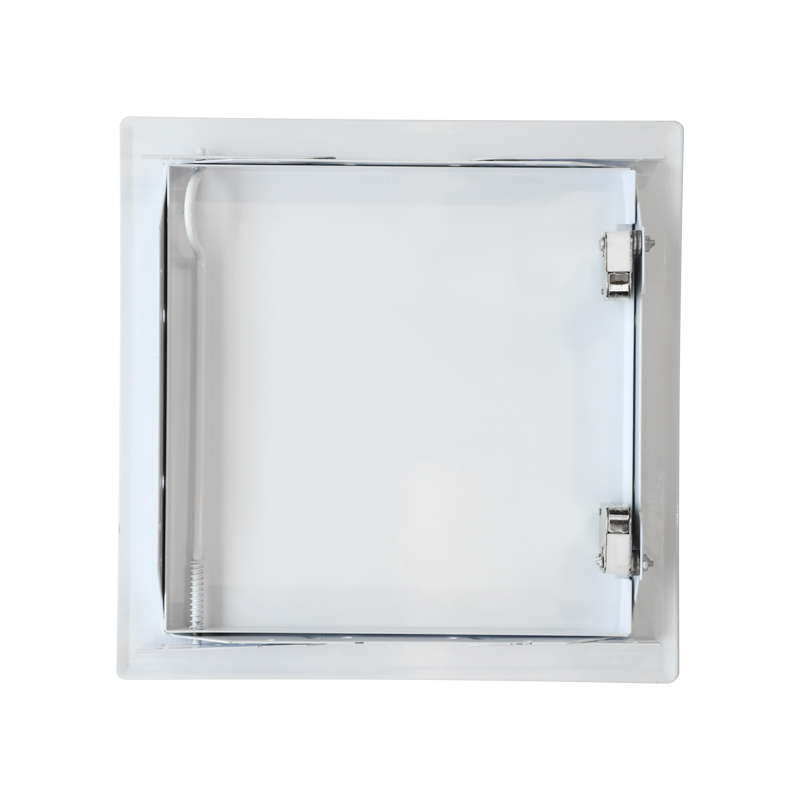

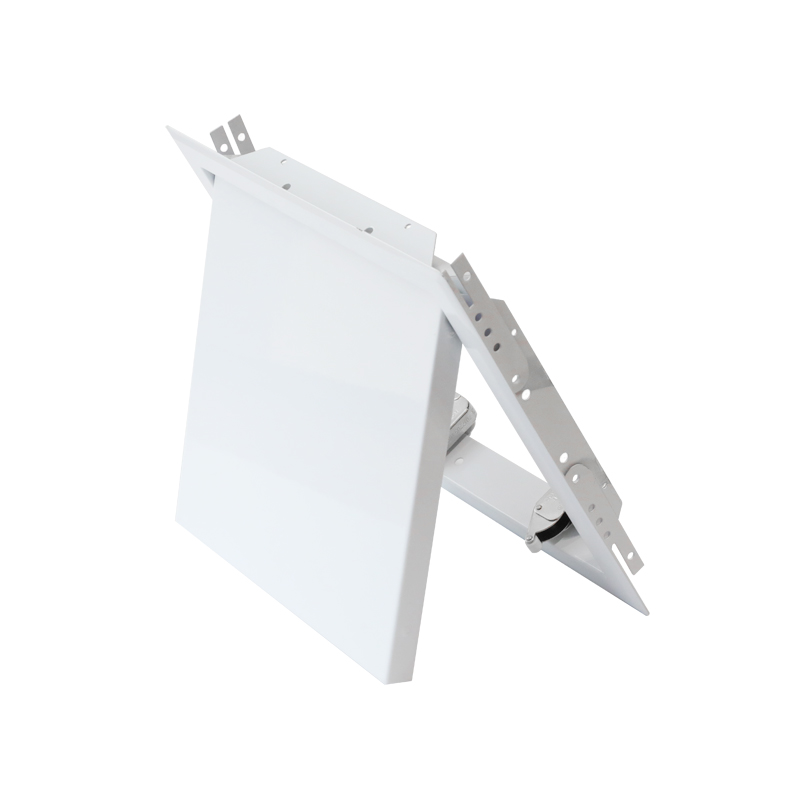

SS-AP230 Steel Access Panel With Push Lock

STEEL ACCESS PANEL WITH PUSH LOCK

1. Access panel for wall or ceiling application.

2. 1mm galvanized steel frame and lid.

3. Flange frame finish.

4. White powder-coated finishes or special colors are available.

5. High durability and corrosion protection.

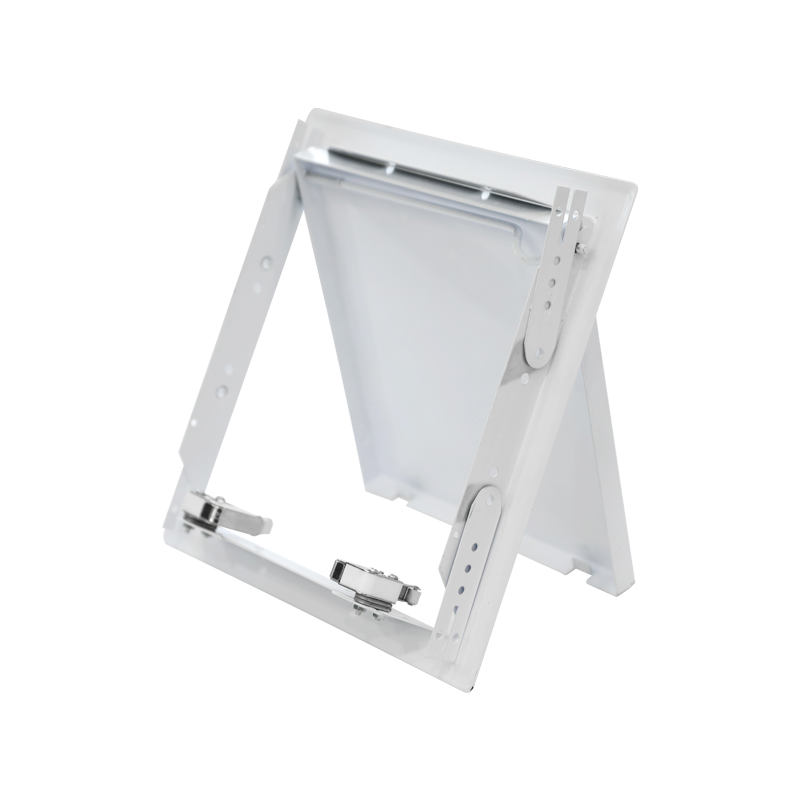

6. The steel-bar hinge doors are removable.

7. Swing tab for installation fixing screw.

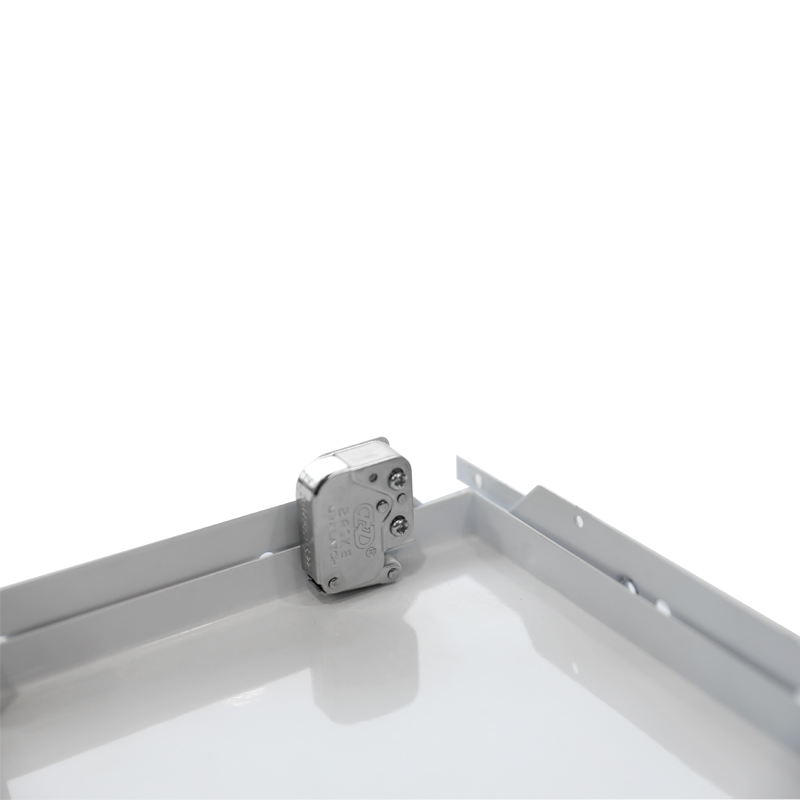

8. Lock: 2 touch locks.

9. Standard size: 20x20/30x30/40x40/45x45/50x50/60x60.

10. 20x20/30x30/40x40 with one piece punched frame 50x50/60x60 with welded frame.

11. Customized size available.

12. Packaging: Each piece is put into a poly bag with shrink wrap, then put into a carton.

Advantage

It can be opened without a key; push the key position to open.

PREV：SS-AP220 Steel Access Panel With Square Lock NEXT：Metal Access Door SS-AP250FF

Product details
Product drawings
Inquiry

Regular size

Item	Neck Size(mm)	Opening Size W1×L1(mm)	Overall Size W2×L2(mm)
SS-AP230	200×200	195×195	235×235
	300×300	295×295	335×335
	400×400	395×395	435×435
	500×500	495×495	535×535
	600×600	595×595	635×635
