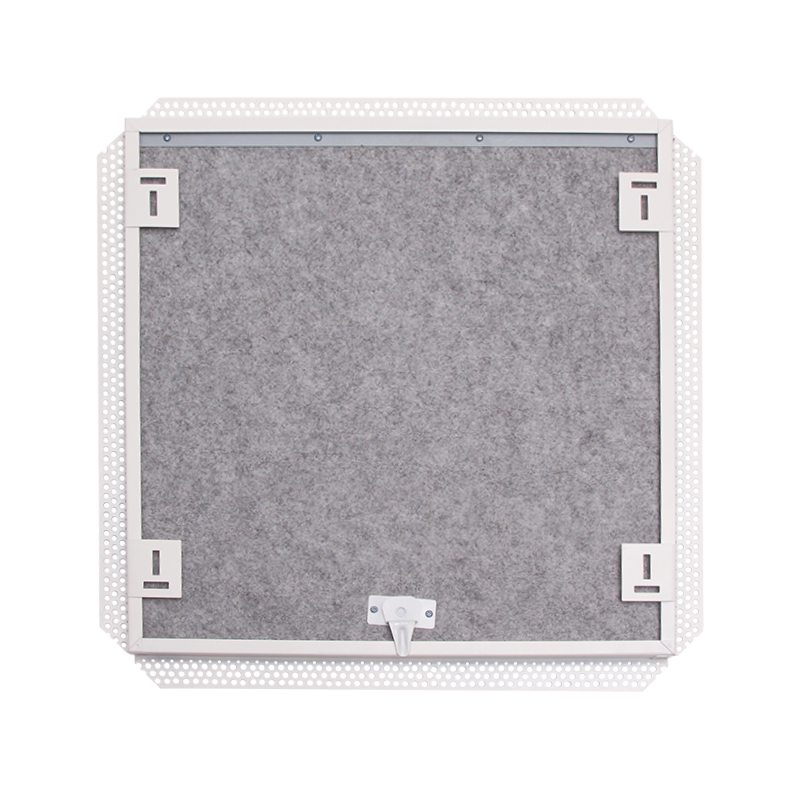

SS-AP280SB MDF Access Panel with Beaded Frame

Description:

1. MDF access panel for wall or ceiling application.

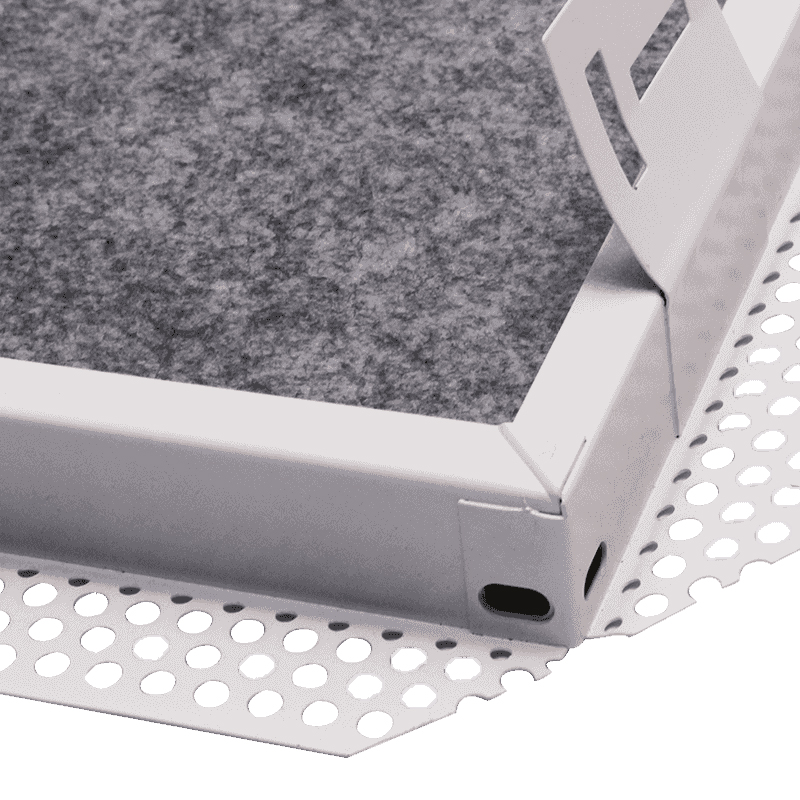

2. 1 mm galvanized steel frame.
3. 15mm MDF with felt coveringSoundprooff rubber sealing between door and frame.

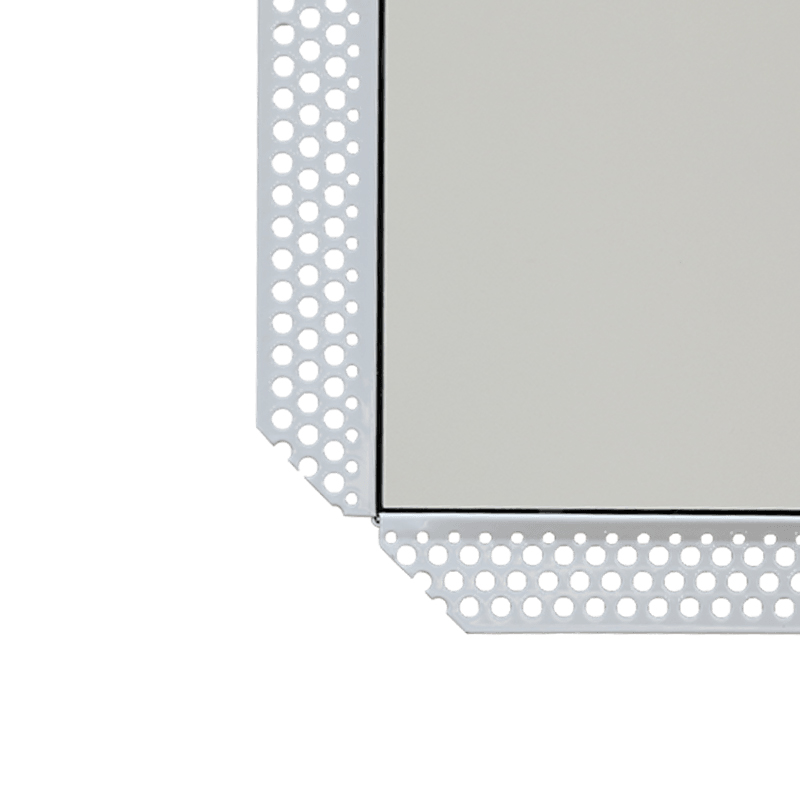

4. Set Bead frame.
5. White powder coating finish or special color available.
6. High durability and corrosion protection.

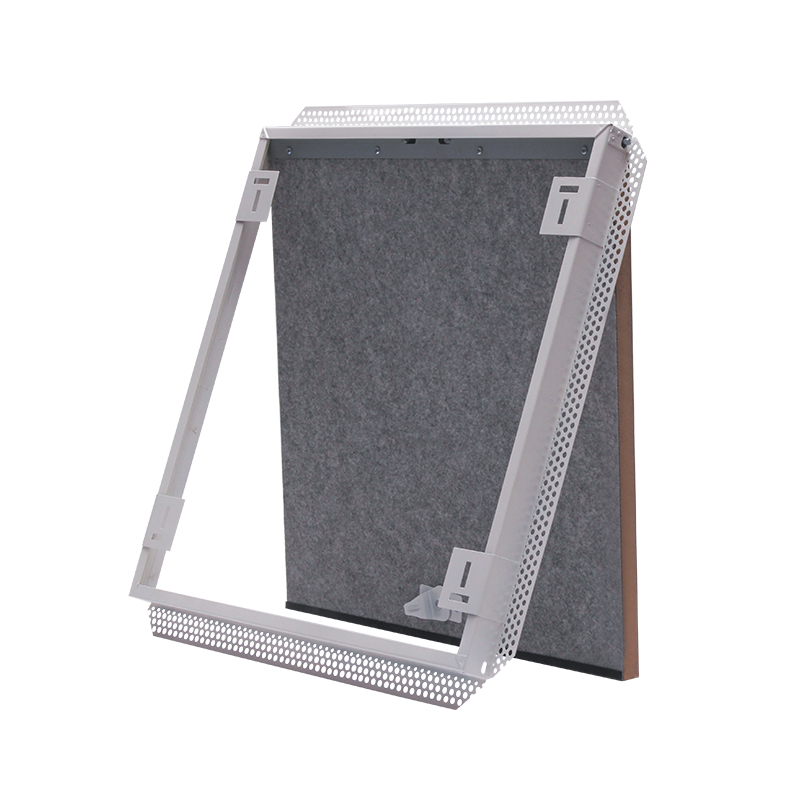

7. Steel bar with spring hinges door removable.
8. Four bendable ears for fixing screws.

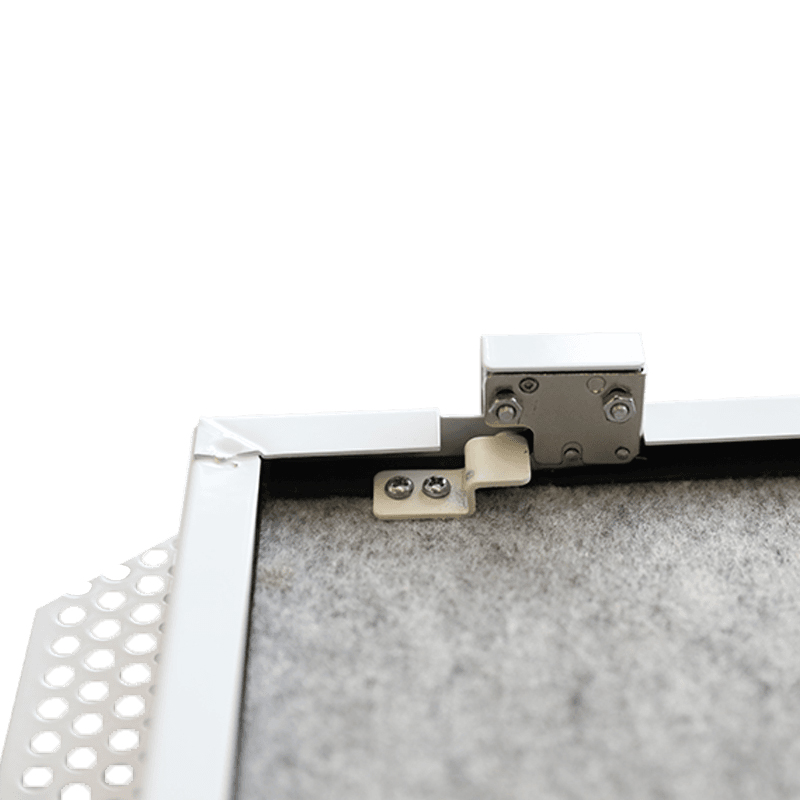

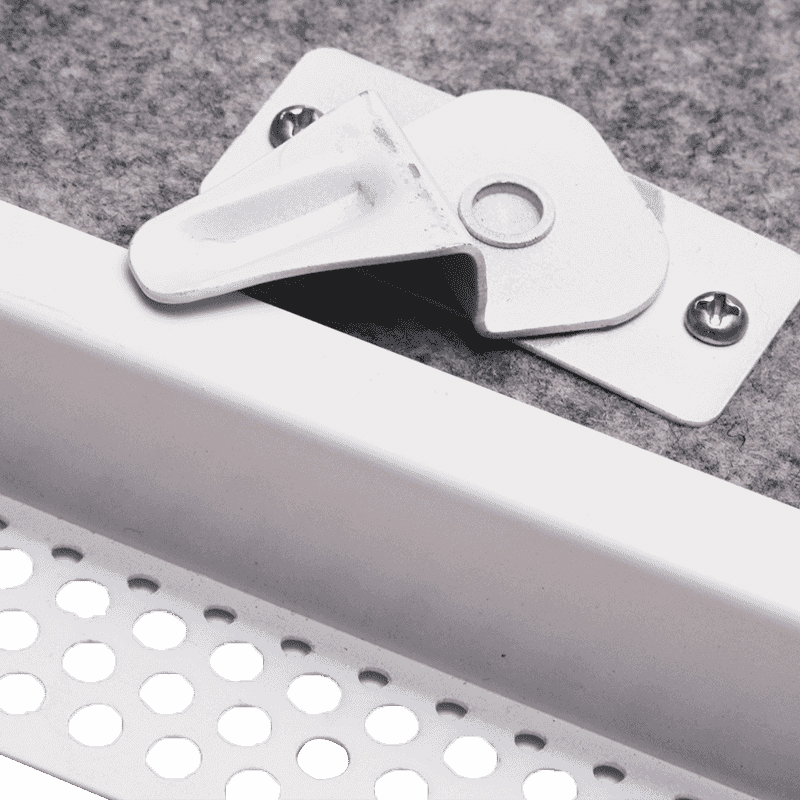

9. Lock: slotted lock / square lock/budget lock.
10. Standard size : 20x20/30x30/45x45/60x60.
11. All sizes are welded frame.
12. Customized size available.

Packaging:

1.Each piece is put into a poly bag with shrink wrap,
then put into a carton.

Advantage:

1.Different locks available.

2. Slotted lock operated by screwdriver or coin.

3. Square lock operated by L key.

4. Budget lock operated by T plastic key.

5. The access panel achieved a weighted sound reduction index rating of 30.

PREV：SS-AP525 Fire Rated Access Panel With Certification NEXT：SS-AP111 Fire Rated Access Panel

Product details
Product drawings
Inquiry

Regular size

Item	Neck Size(mm)	Opening Size W1×L1(mm)	Overall Size W2×L2(mm)
SS-AP280 SB	200×200	196x196	248x248
	300×300	296x296	348x348
	400×400	396x396	448x448
	500×500	496x496	548x548
	600×600	596x596	648x648
