SS-AP111 Fire Rated Access Panel

NEW DESIGN FIRE-RATED ACCESS PANEL

Description:

Fire-rated access panel for wall or ceiling application.
5mm galvanized steel frame.
White powder coating finish or special color available.
High durability and corrosion protection.

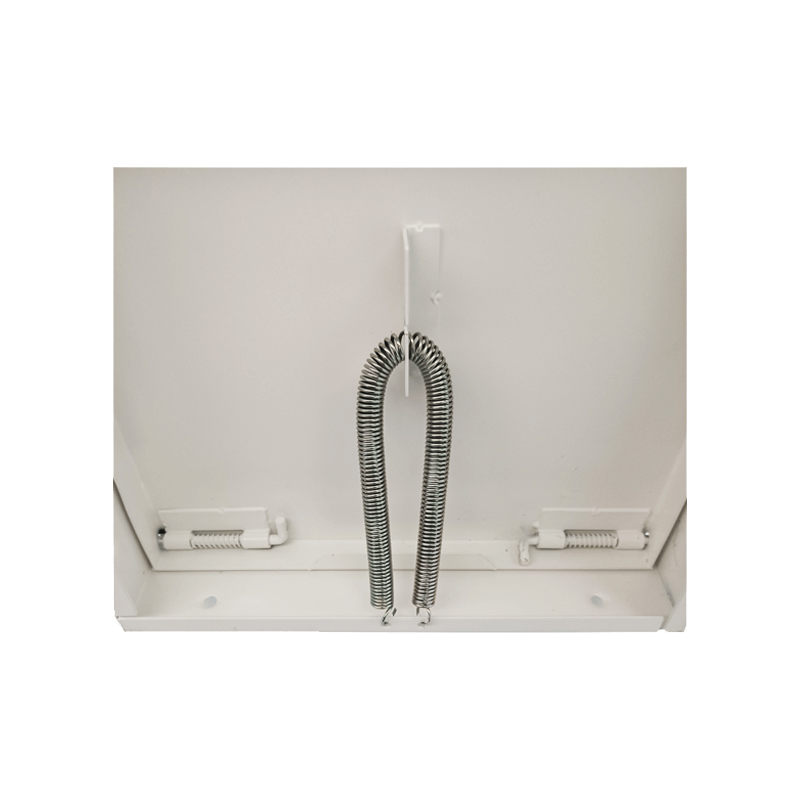

Spring hinge with removable door.
Install with screws through the holes in the frame.
Lock: Spring lock with key.
Standard sizes: 20×20, 30× 30, 40×40, 50×50, 60×60.
All sizes feature welded frames.
Customized sizes available.
Packaging: Each piece is placed in a bubble bag, then packed in a carton.

PREV：SS-AP280SB MDF Access Panel with Beaded Frame NEXT：SS-AP400 Heat Proof Access Panel

Product details
Product drawings
Inquiry

Regular size

SS-AP111	Nominal size (mm)	Neck size N1×N2(m)	Opening size w1×L1(mm)	Overall size W2×L2(mm)
	Nominal size (mm)	Neck size N1×N2(m)	Opening size w1×L1(mm)	Overall size W2×L2(mm)
	200×200	203×203	197×197	250×250
	300×300	303×303	297×297	350×350
	400×400	403×403	397×397	450×450
	500×500	503×503	497×497	550×550
	600×600	603×603	597×597	650×650
