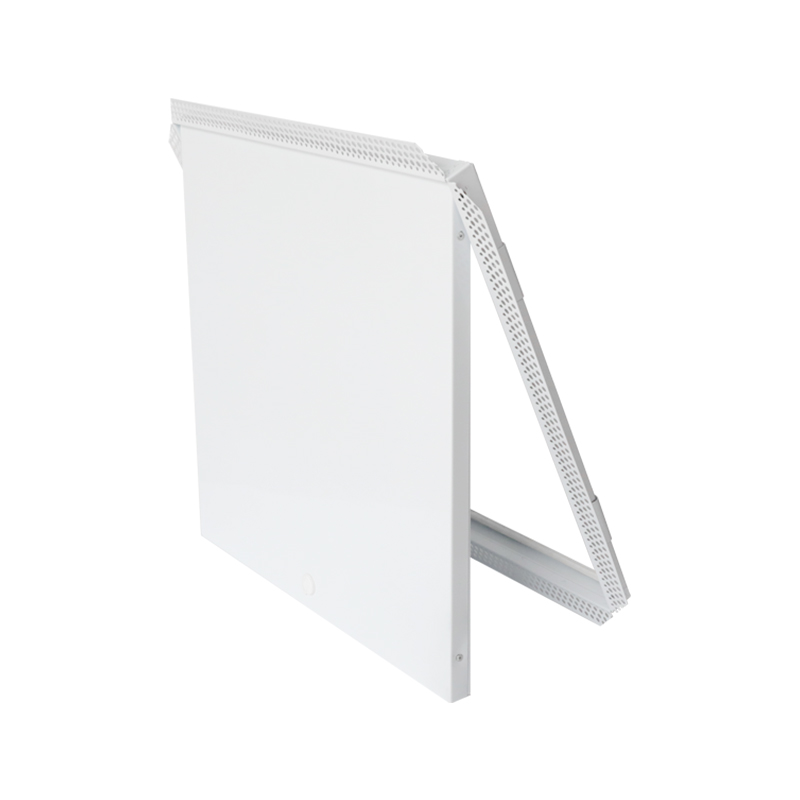

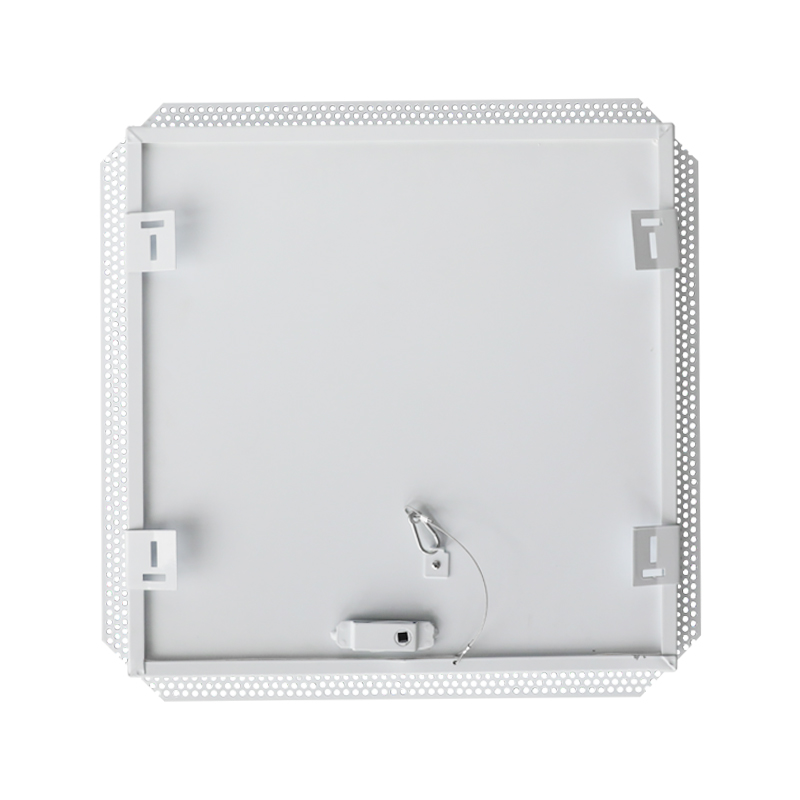

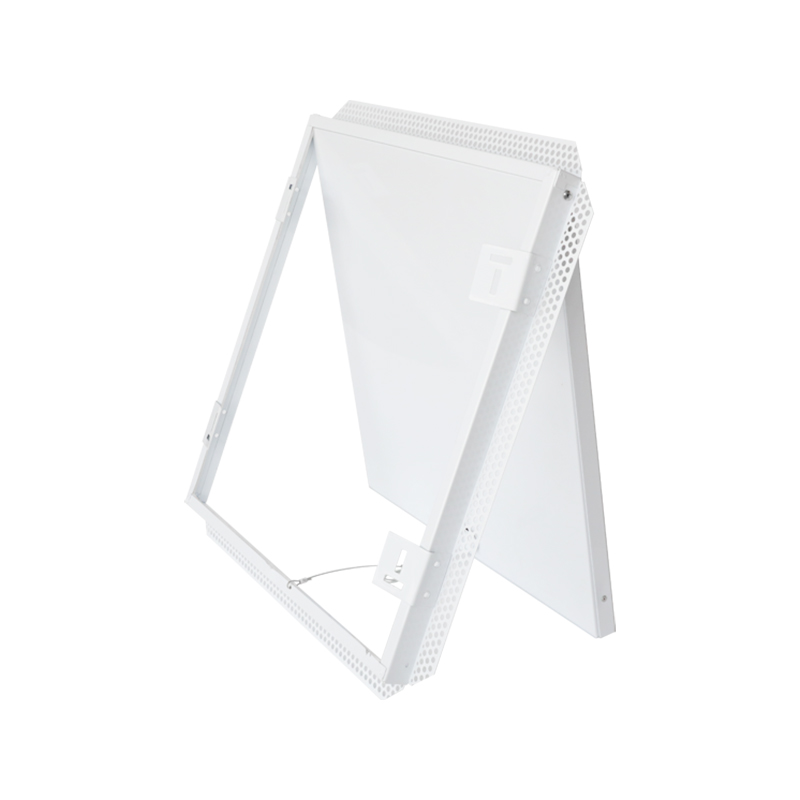

SS-AP251 Steel Access Panel

Description

1. Sound-rated access panel for wall or ceiling application.
2. 1 mm galvanized steel frame, lid, and back cover.
3. Soundproof material inside the panel.
4. Set beaded frame finish.
5. White powder coating finish or special color available.
6. High durability and corrosion protection.
7. Stainless steel rivet hinges door are not removable.

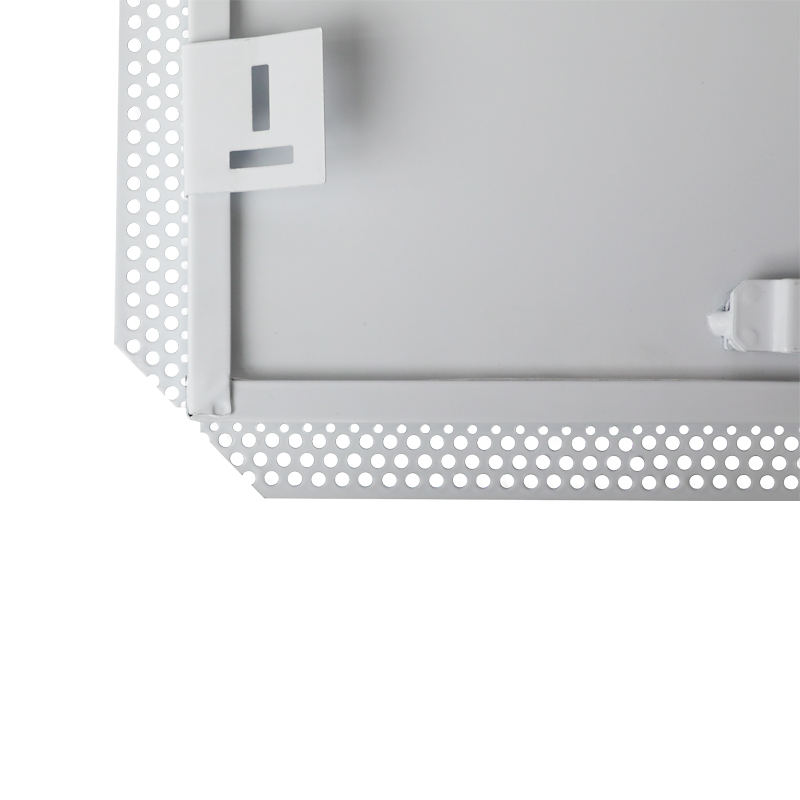

8. Four bendable ears for fixing screws.
9. Lock: slotted lock/square lock.
10. Standard size : 20x20/30x30/40X40/45x45/60x6011. All sizes are welded frame 122. Customized size available.
13. Package: each piece put into poly bag with shrink wrap, then put into a carton, pallet available.

Advantage

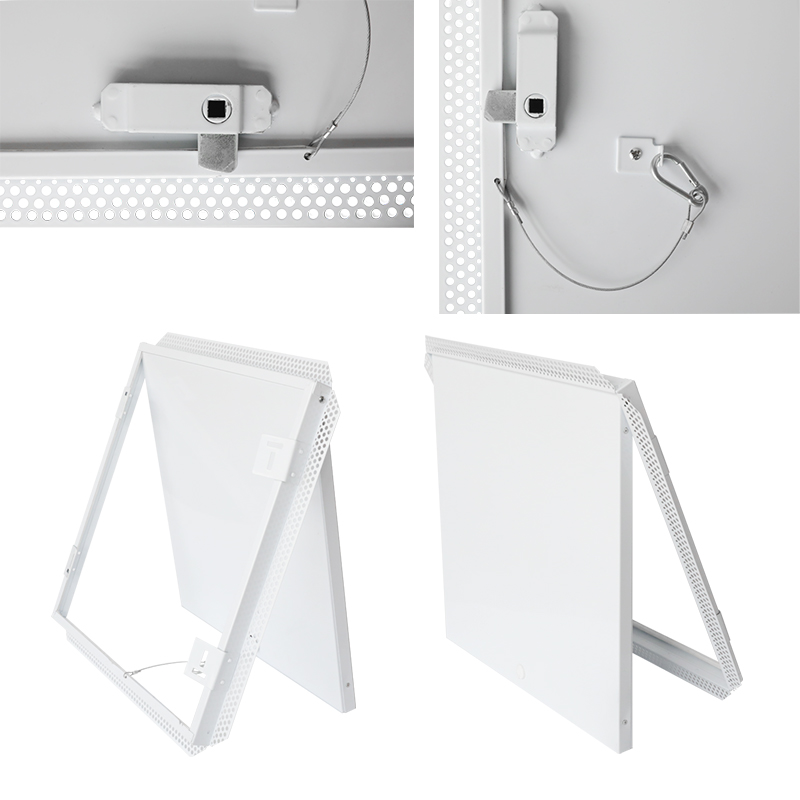

Different locks available:

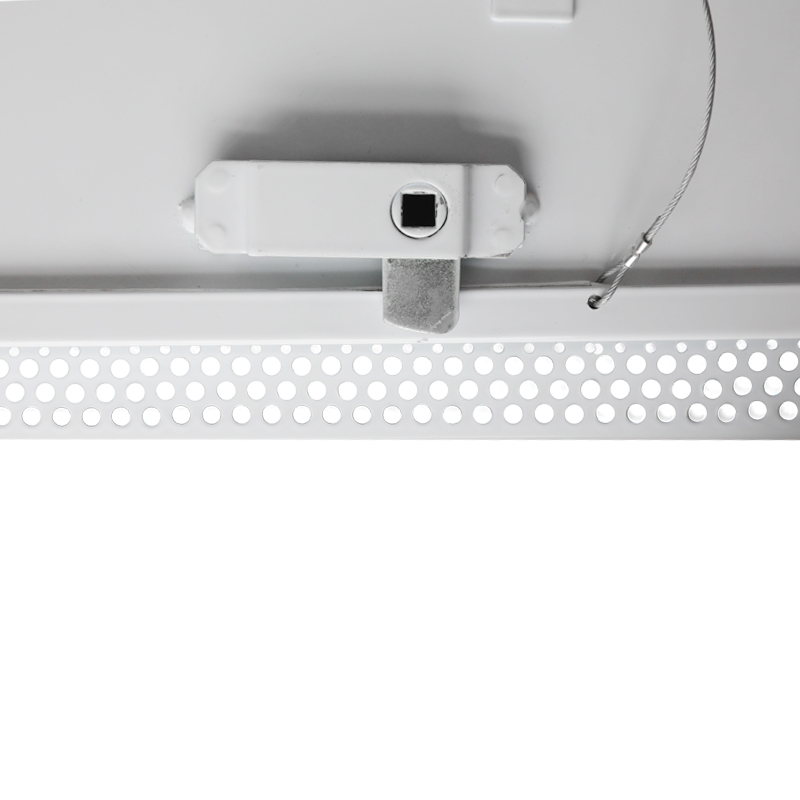

A: slotted lock operated by screwdriver or coin.

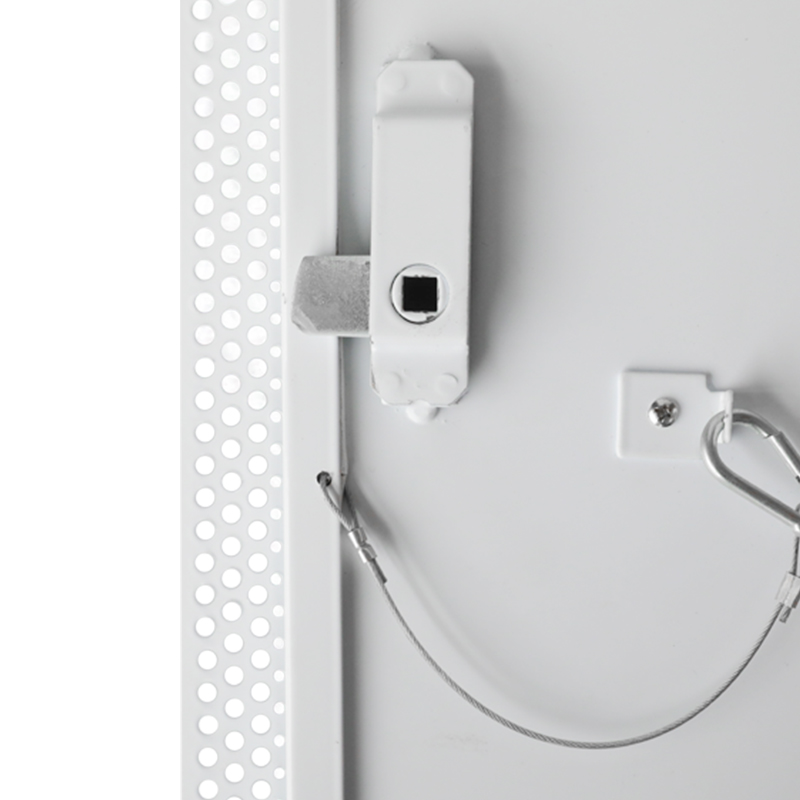

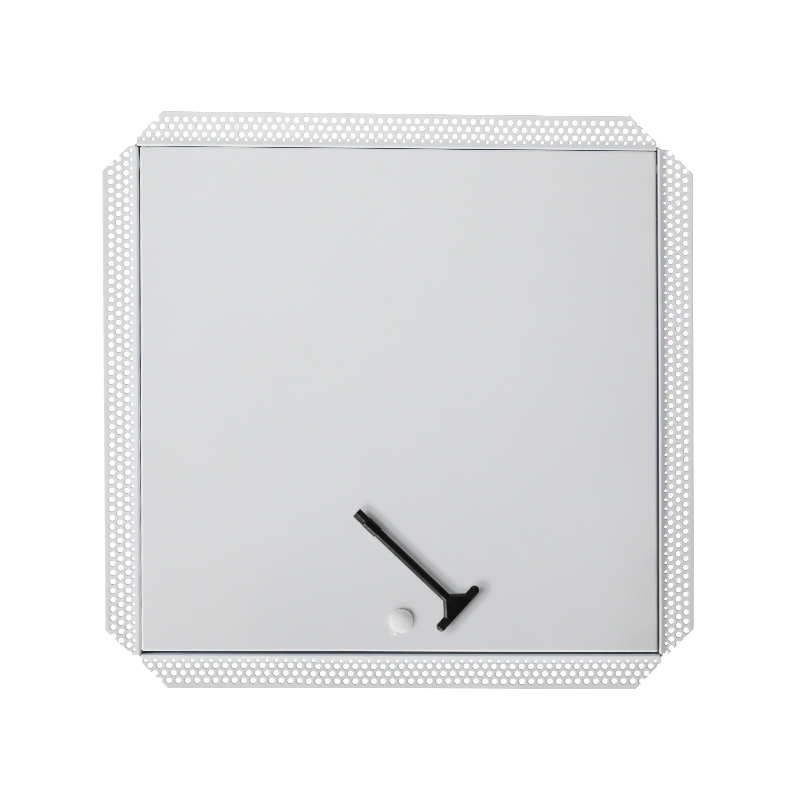

B: square lock operated by L key.
The access panel achieves a weighted sound reduction index
rating of 35.Best-selling in the Australia and New Zealand markets.

PREV：SS-AP510 Ceramic Access Panel Without Ceramic NEXT：SS-AP252SB Access Panel With Beaded Frame

Product details
Product drawings
Inquiry

Regular size

Item	Size(mm)	Opening size W1xL1(mm)	Overall size W2xL2(mm)
SS-AP251SB	300x300	298x298	358x358
	400x400	398x398	458x458
	450x450	448×448	508x508
	500x500	498×498	558x558
	600x600	598x598	658x658
