SS-AP252SB Access Panel With Beaded Frame

Description

1. Access panel for wall or ceiling application
2. 1 mm galvanized steel frame and PVC lid
3. Set Beaded frame
4. Concealed in the ceiling after installation
5. White powder coating finish or special color available
6. High durability and corrosion protection
7. Steel bar with spring hinges, door removable
8. Four bendable ears for fixing screws
9. Lock: slotted lock/square lock/touch lock
10. Standard size: 20x20/30x30/40x40/45x45/50x50/60x6011. All sizes with a welded frame
12. Customized size available
13. Package: each piece put into a poly bag with shrink wrap, then put into a carton, pallet available

Advantage

Different locks available:

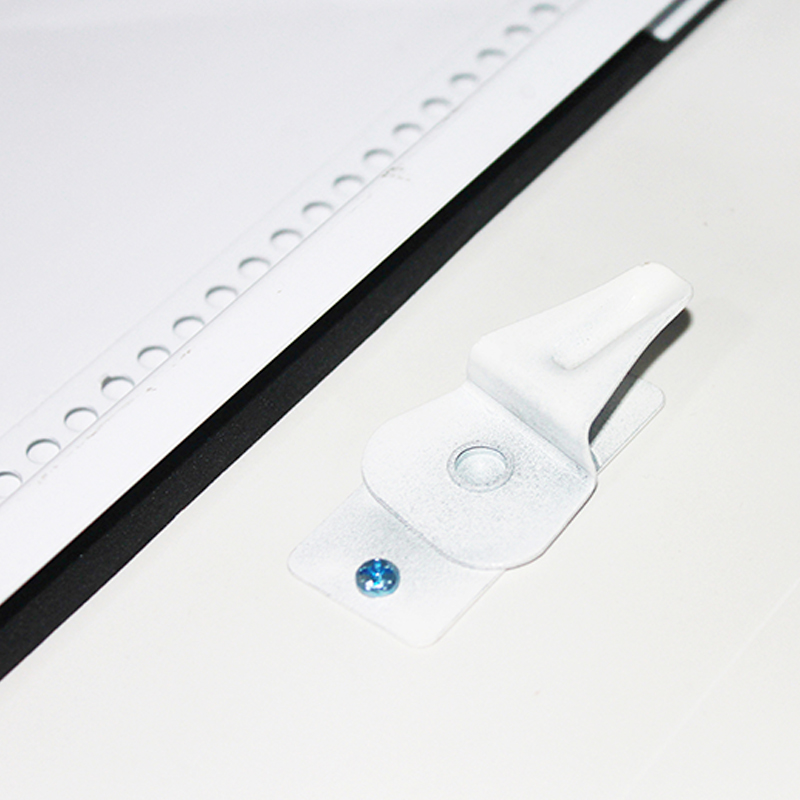

A: Slotted lock operated by screwdriver or coin
B: Square lock operated by L key
C: Touch lock push oopBest-sellingin the Australia and New Zealand markets

PREV：SS-AP251 Steel Access Panel NEXT：SS-AP210 Steel Access Panel With Key Lock

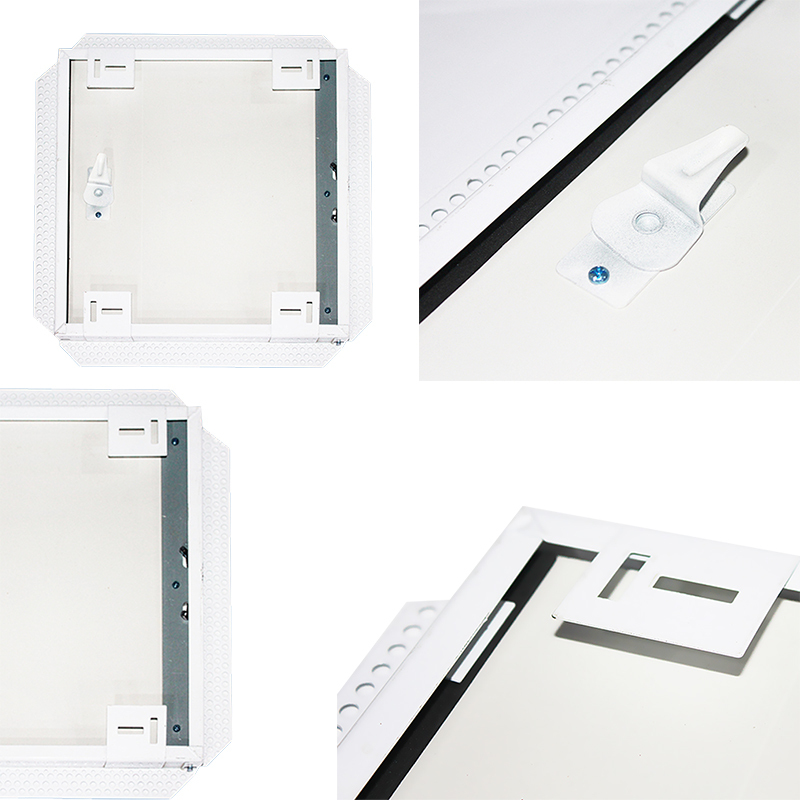

Product details

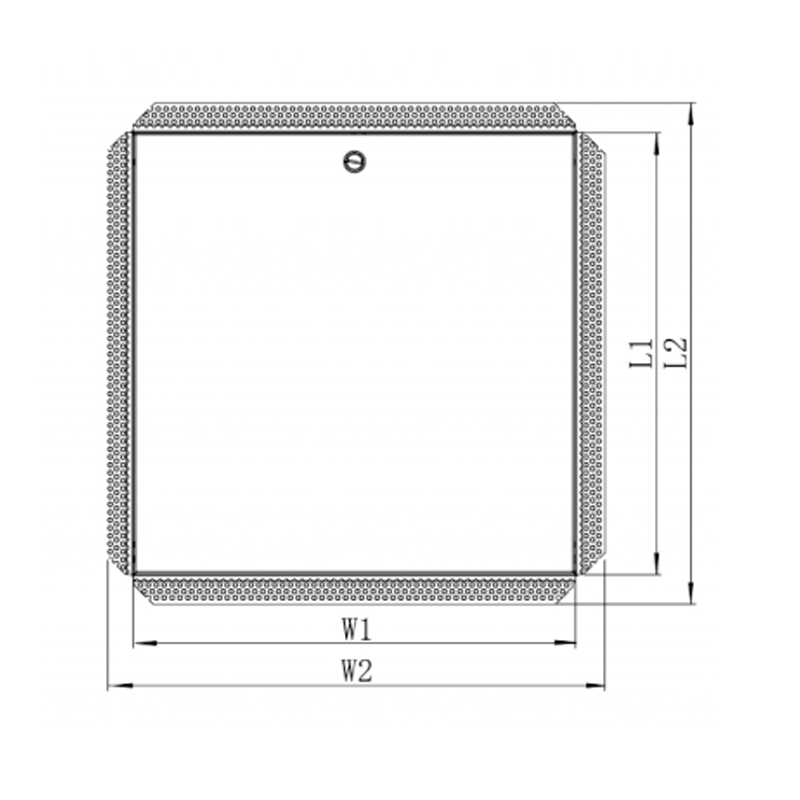

Product drawings
Inquiry

Regular size

Item	Size(mm)	Opening size W1xL1(mm)	Overall size W2xL2(mm)
SS-AP252SB	200X200	198X198	258X258
	300x300	298x298	338x338
	400x400	398x398	458X458
	450x450	448x448	508X508
	500x500	498x498	558X558
	600x600	598x598	658X658
