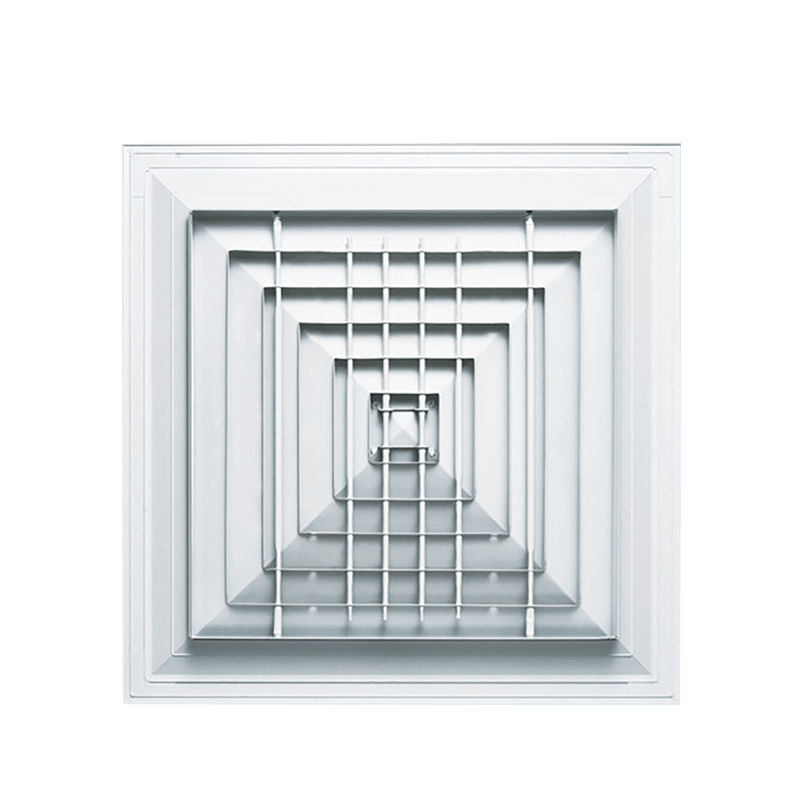

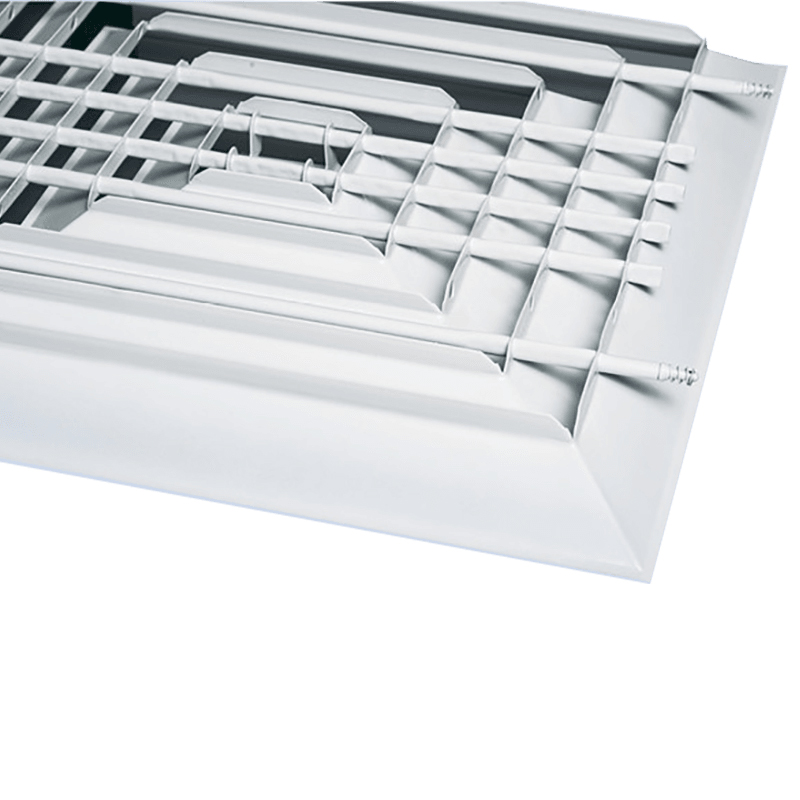

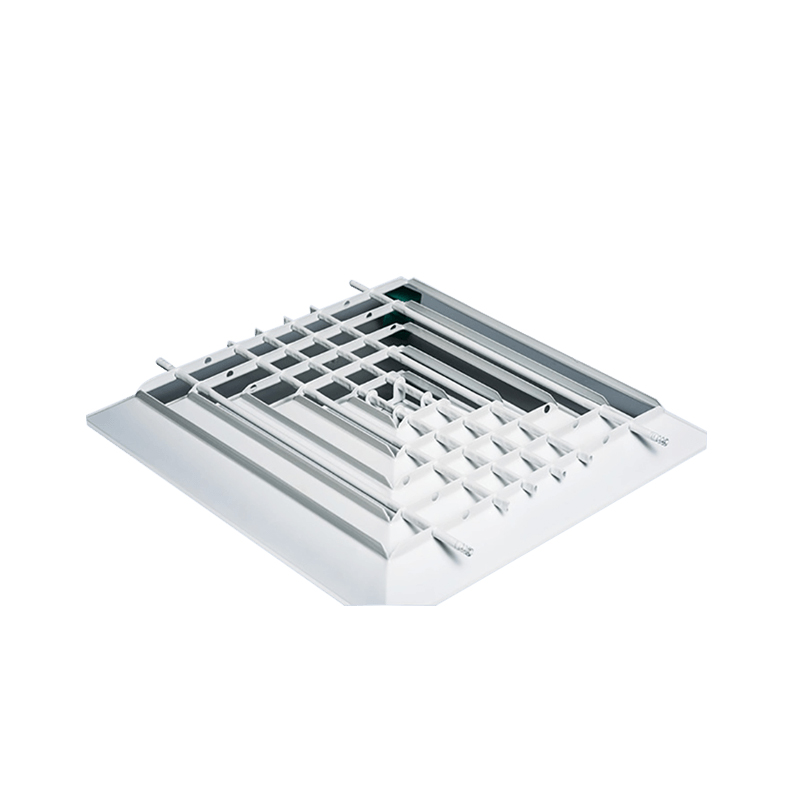

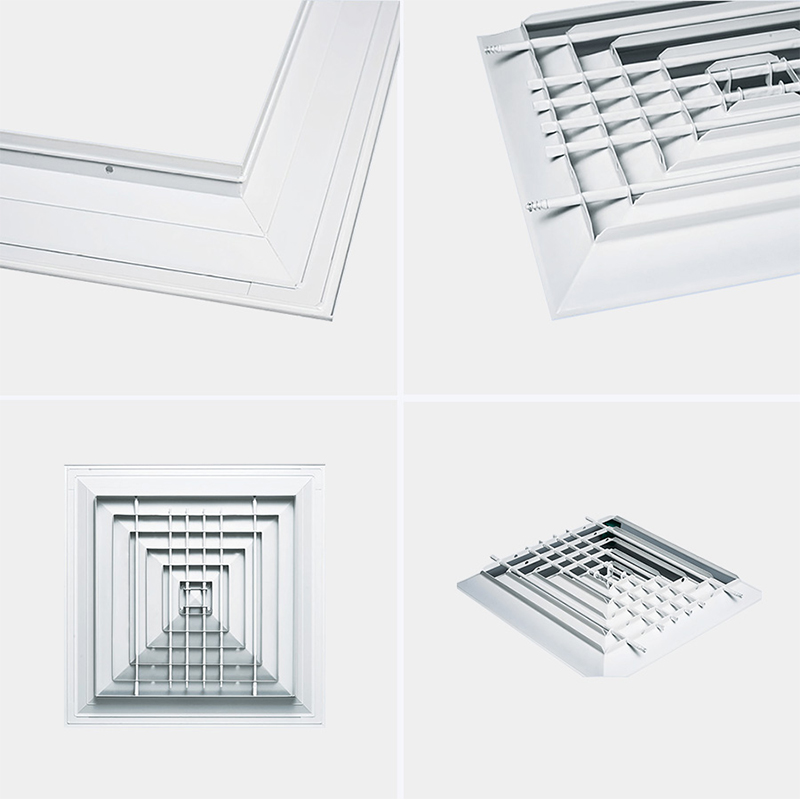

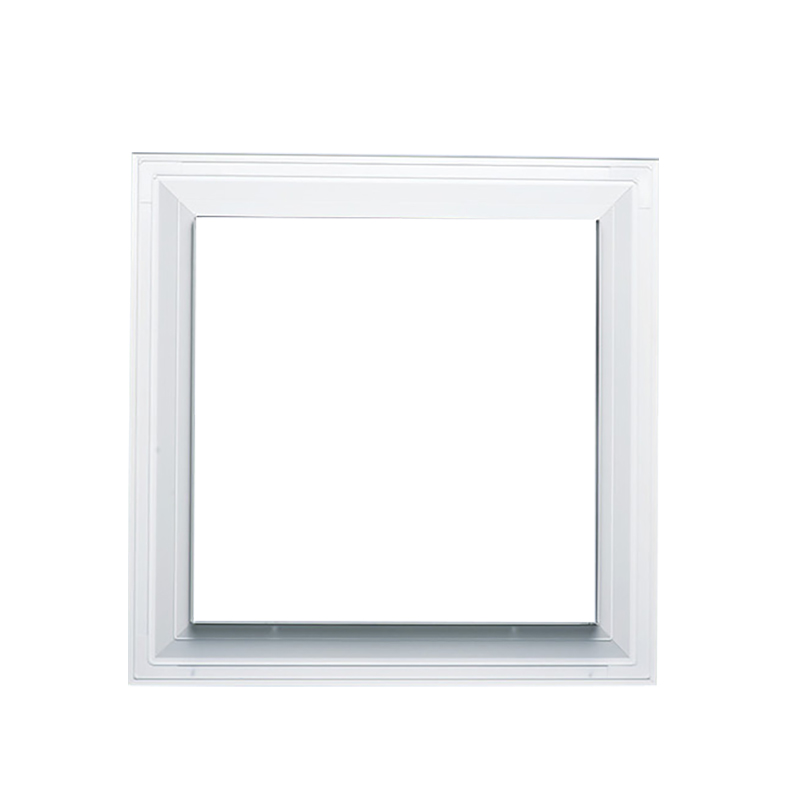

SA-SD Square Air Diffuser

SA-SD square air diffuser

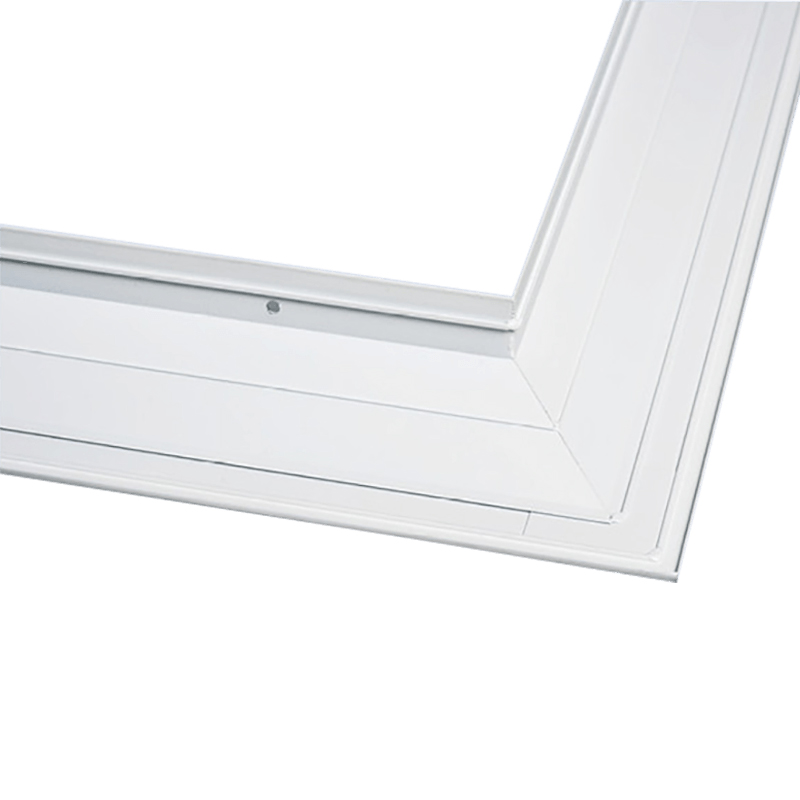

1. Frame thickness is 0.9mm.

2. Anodized or powder-coated in white; other custom colors available upon request.

3. Suitable for supply and exhaust of cool and heated air.

4. Horizontal blades are available in 15-degree or 0-degree fixed angles.

5. Fixed blade design.

6. Quick and easy installation.

7. Custom sizes available.

8. Packaging: Each piece packed in a bag, then placed in a carton; pallet packaging is available.

Advantage:

Easy to install and competitively priced.

PREV：SA-LG Aluminum Liner Grille NEXT：SA-EG Egg Grill With Push Lock

Product details
Product drawings
Inquiry

Regular size

Item	Neck size (mm) D	Face size (mm) A
SA-SD 001	150x150	300x300
	200x200	350x350
	225x225	375x375
	250x250	400x400
	300x300	450x450
	350x350	500x500
	375x375	525x525
	400x400	550x550
	450x450	600x600
