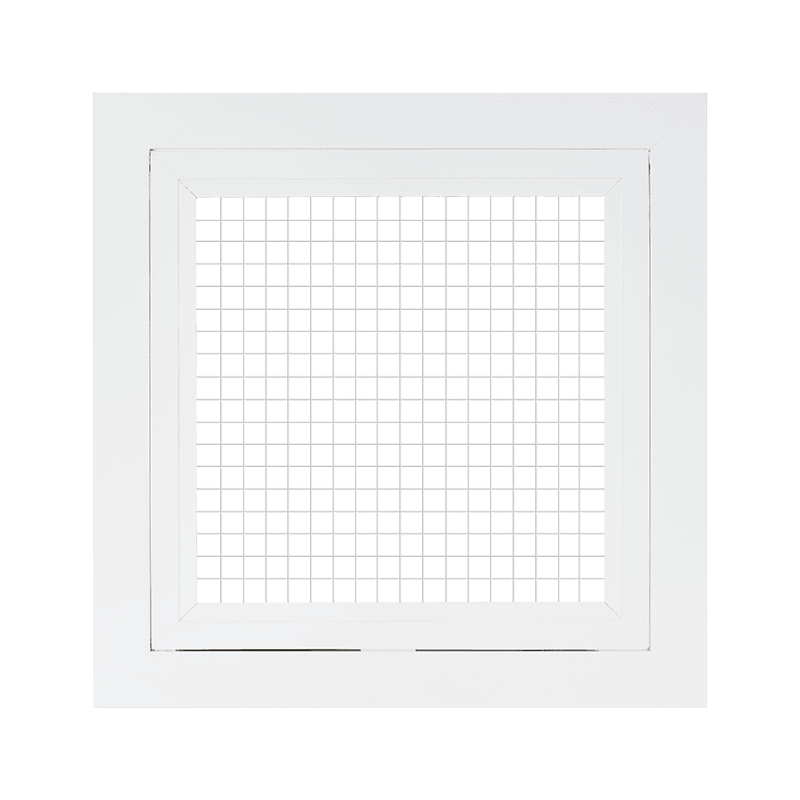

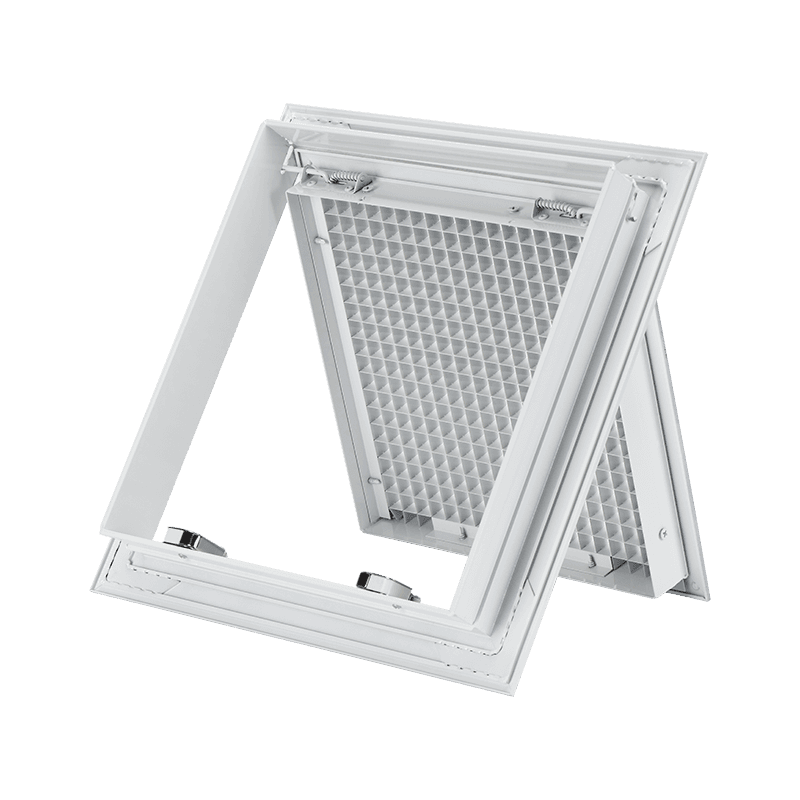

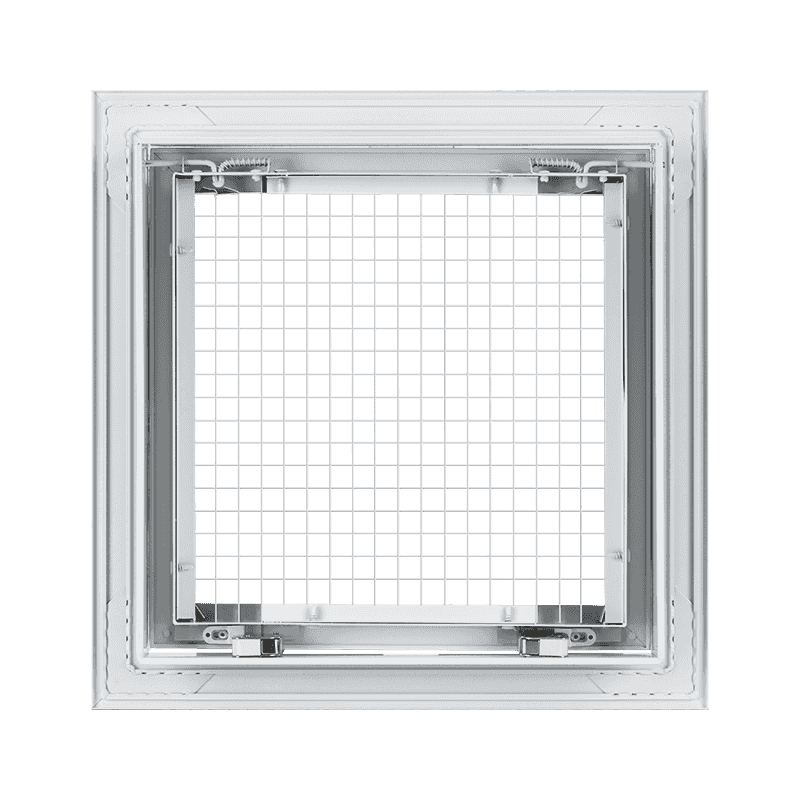

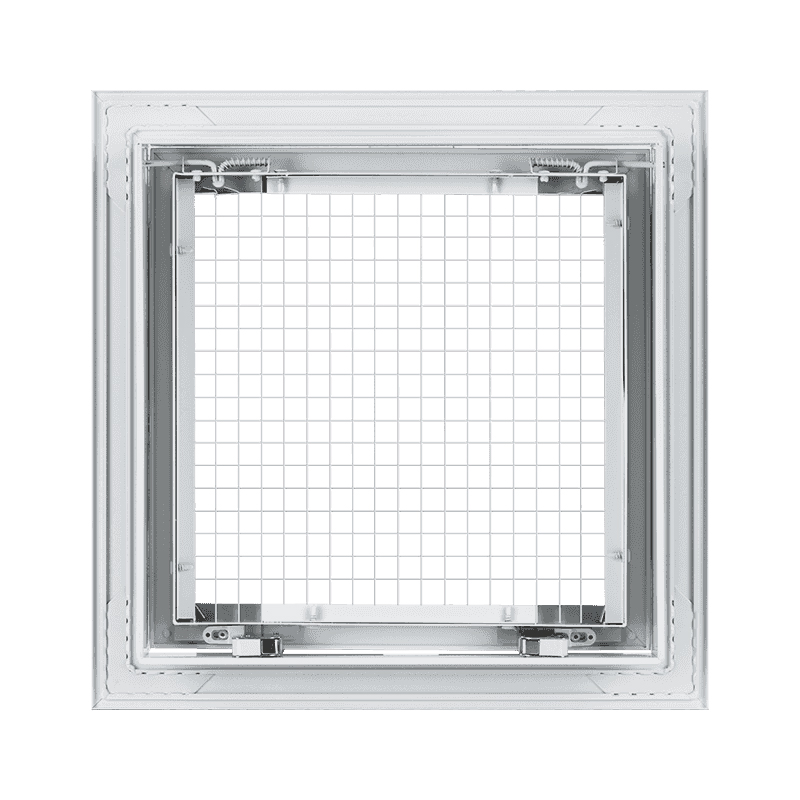

SA-EG Egg Grill With Push Lock

SA-EG Egg Grill With Push Lock

SA-EG EGG GRILL WITH PUSH LOCK

1. Frame thickness: 1.0mm; blade thickness: 0.5mm.

2. Anodized or powder-coated in white; other custom colors available upon request.

3. Suitable for supply and exhaust of cooled and heated air; compatible with central air conditioning and ventilation systems.

4. Bolt-type fastening.

5. White powder-coated finish.

6. Fixed blade design.

7. Quick and easy installation.

8. Custom sizes available.

9. Packaging: Each piece is packed in a plastic bag, then placed in a carton; pallet packaging is available.

10. Standard sizes: 200×200mm, 300×300mm, 400×400mm, 500×500mm, 600×600mm.



Advantage:

A black filter can be installed on the backside.

Easy to install.

Strong aluminum frame.

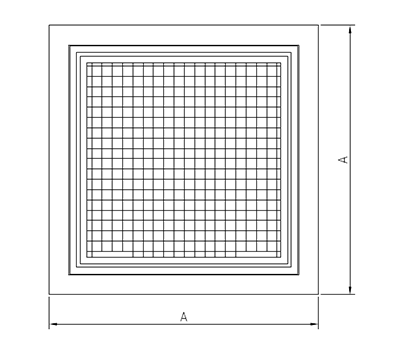

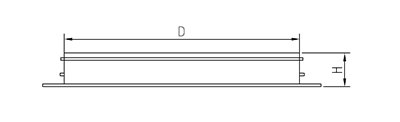

Regular size

SA-EG Neck Size
(mm)A
Face size
(mm) D
Blade space
(mm)B
Height (mm)H
190x190 247x247 12.7 45
290x290 347x347 12.7 45
390x390 447x447 12.7 45
490x490 547x547 12.7 45
590x590 647x647 12.7 45
