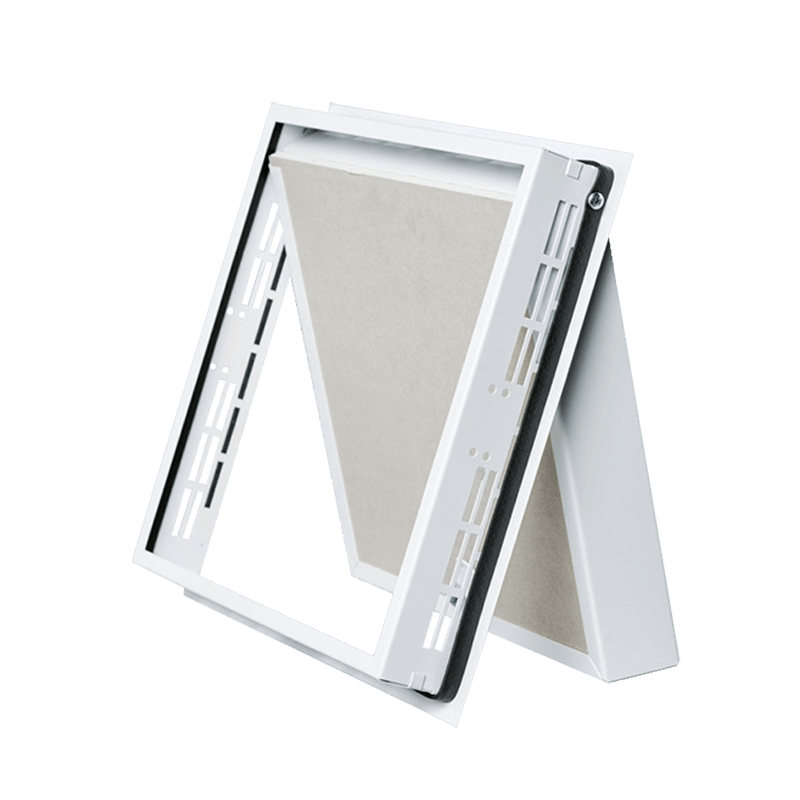

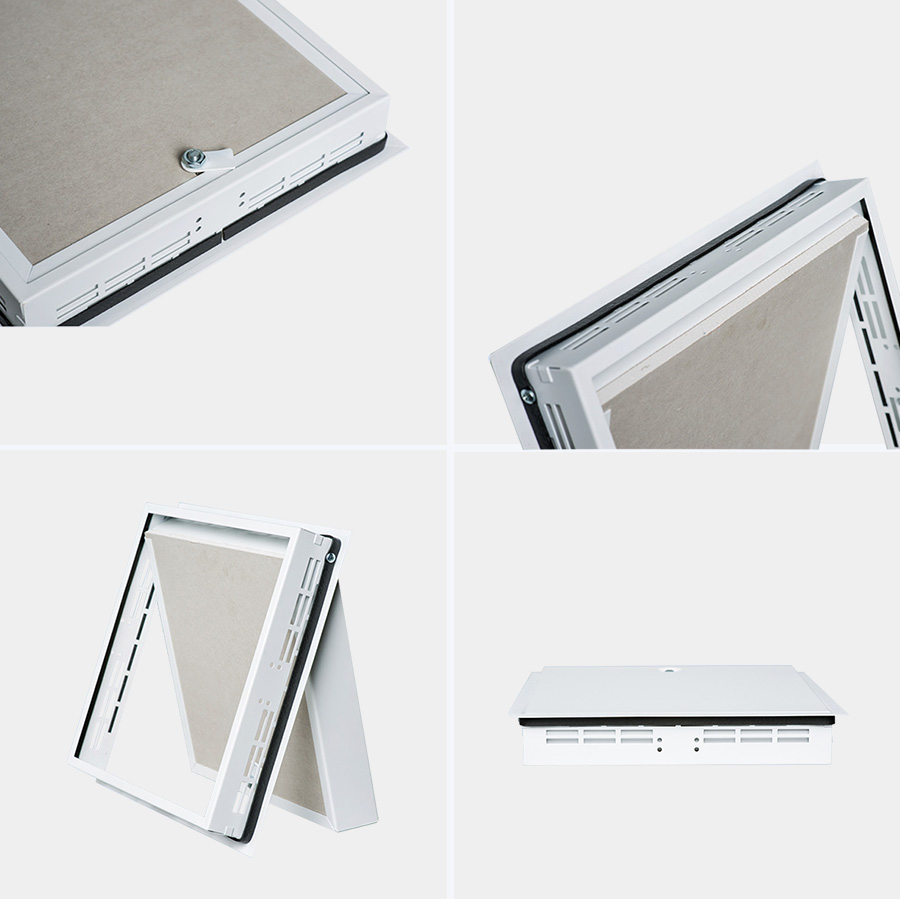

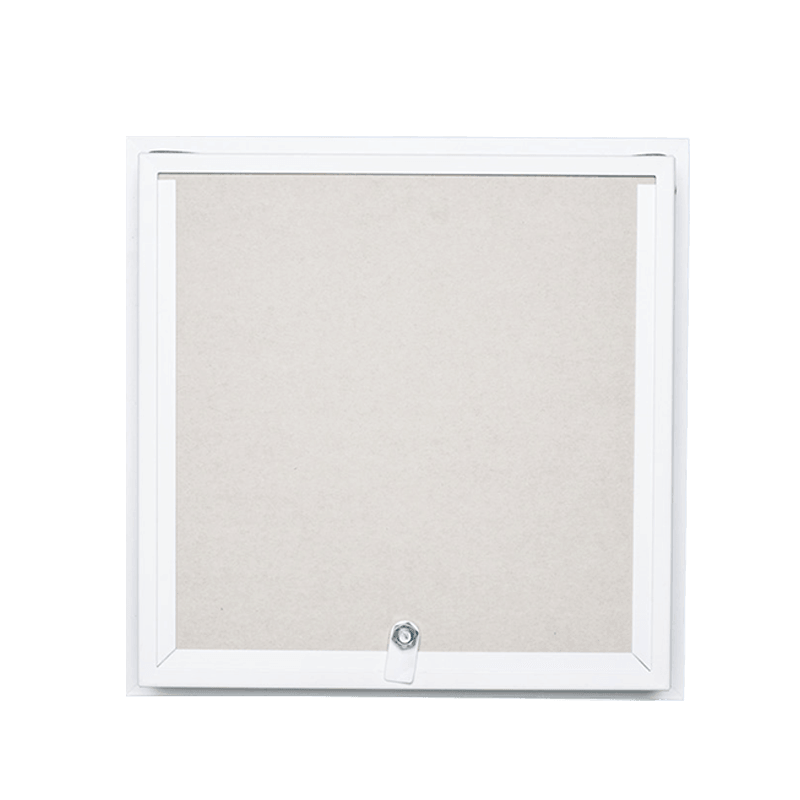

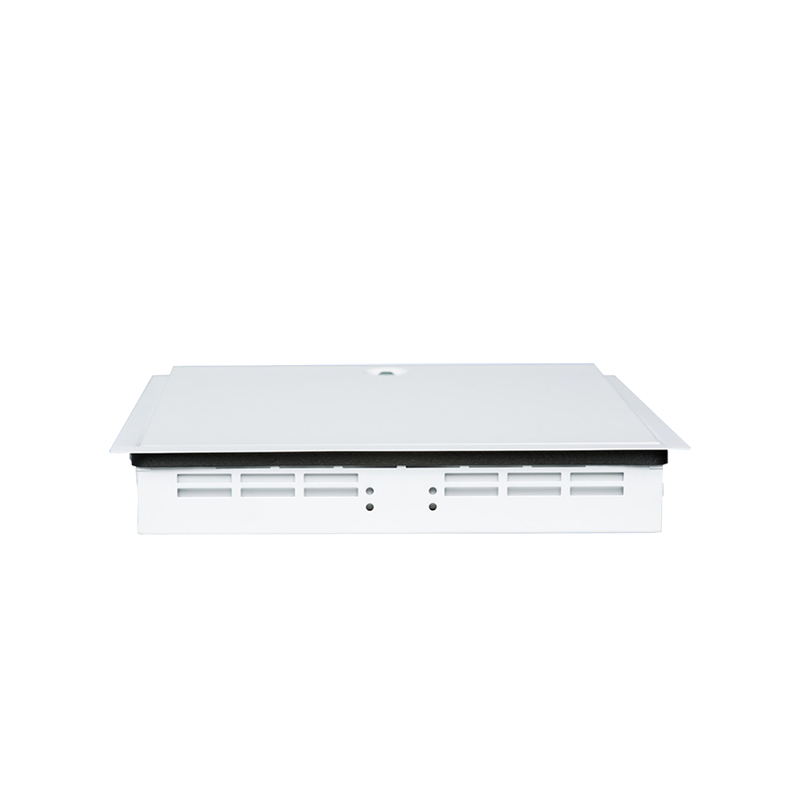

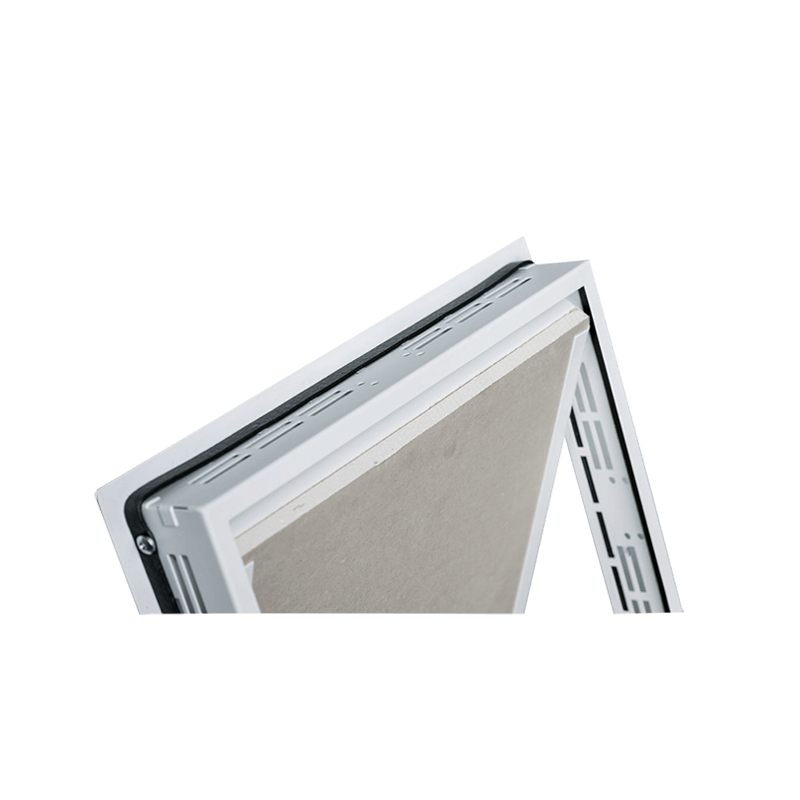

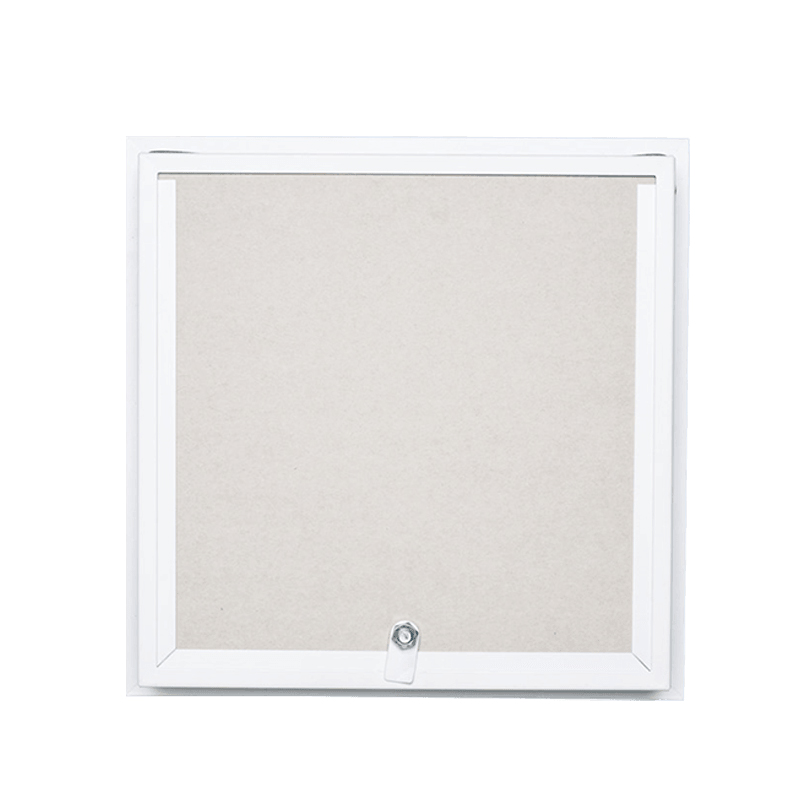

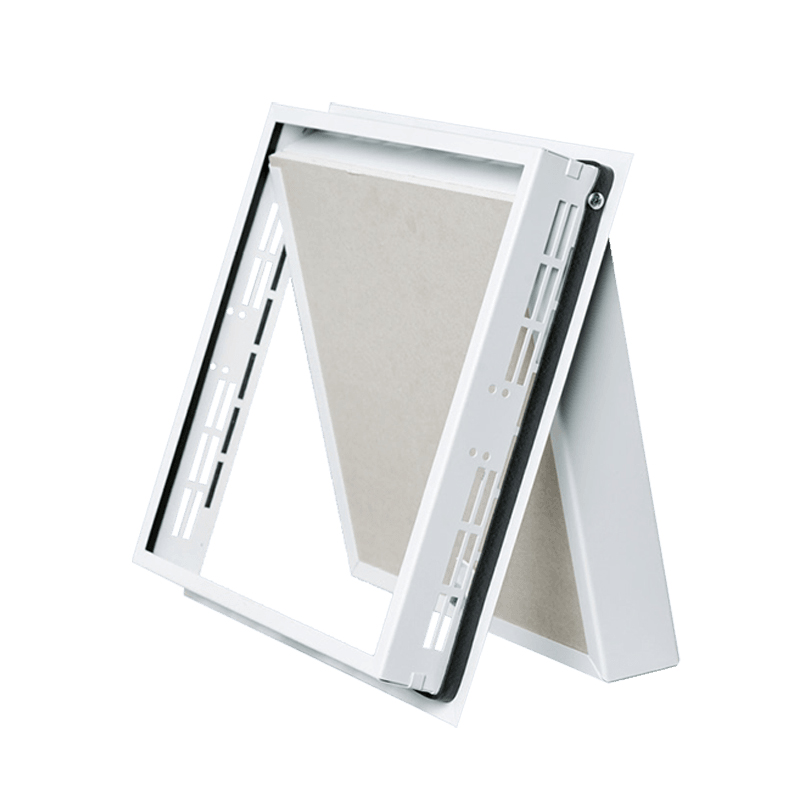

SS-AP525 Fire Rated Access Panel With Certification

SS-AP525 fire-rated access panel with certification

Feature:

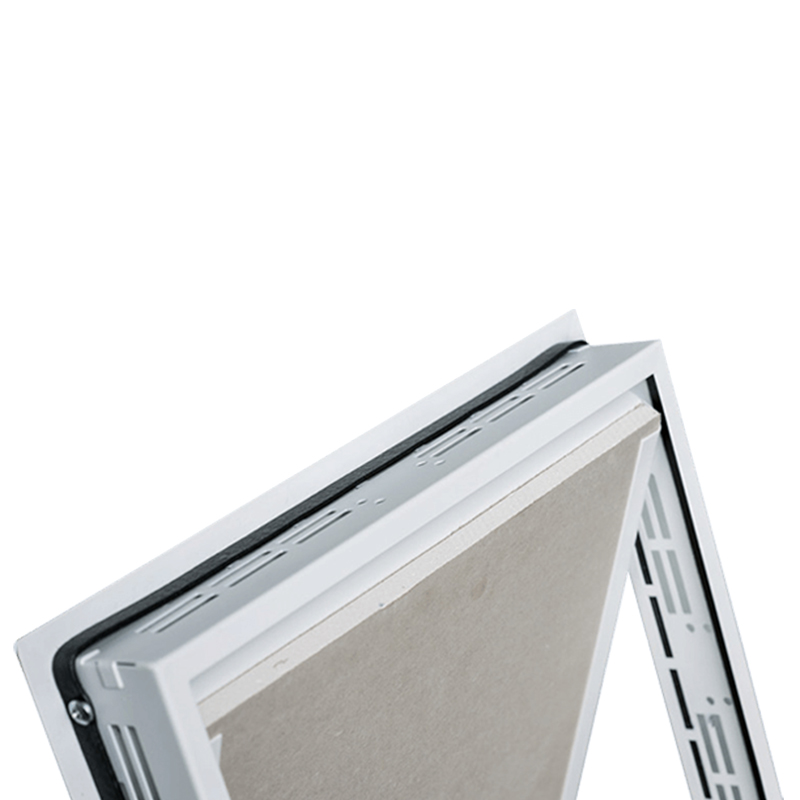

Fire-rated access panel for wall or ceiling applications.
1 mm galvanized steel frame.
Fire-rated rock wool and plasterboard interior.
White powder-coated finish or special colors available.
High durability and corrosion protection.
Installed with screws through pre-drilled frame holes.

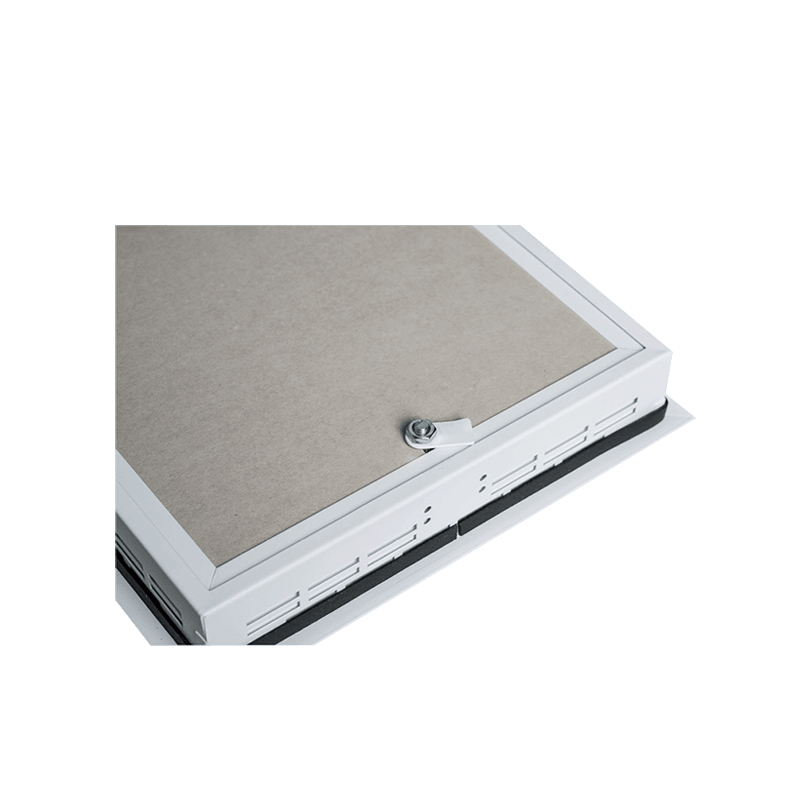

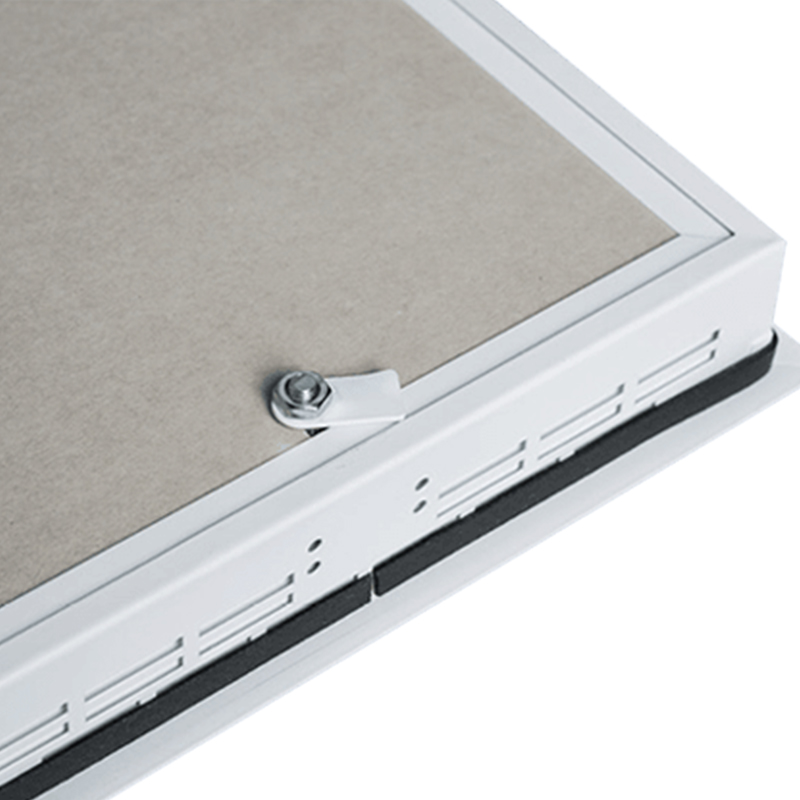

Square lock operated by L-key.
Standard sizes: 30×30 cm, 40×40 cm, 50×50 cm, 60×60 cm.
All frames are welded for structural integrity.
Packaging: Each unit is individually boxed, then packed in a master carton.

Advantage:

Heavy-duty construction with 30-minute and 60-minute fire ratings, backed by official certification.

PREV：SS-AP301SB Steel Access Panel With Pvc Board NEXT：SS-AP280SB MDF Access Panel with Beaded Frame

Product details
Product drawings
Inquiry

Regular size

Item	Neck Size(mm)	Opening Size W1×L1(mm)	Overall Size W2×L2(mm)
SS-AP525	200×200	189.9×189.9	219.5×219.5
	300×300	289.9×289.9	319.5×319.5
	300×400	289.9×389.9	319.5×419.5
	400×400	389.9×389.9	419.5×419.5
	500×500	489.9×489.9	519.5×519.5
	600×600	589.9×589.9	619.5×619.5
