SS-AP300SB Australia New Design Set Bead Access Panel

AUSTRALIA NEW DESIGN SET BEAD ACCESS PANEL

1. Access Panel for wall or ceiling application.

2.1mm galvanized steel frame and MDF lid.

3 .Set a bead frame.

4.Concealed in the ceiling after installation.

5.White powder coating finish or special color available.

6.High durability and corrosion protection.

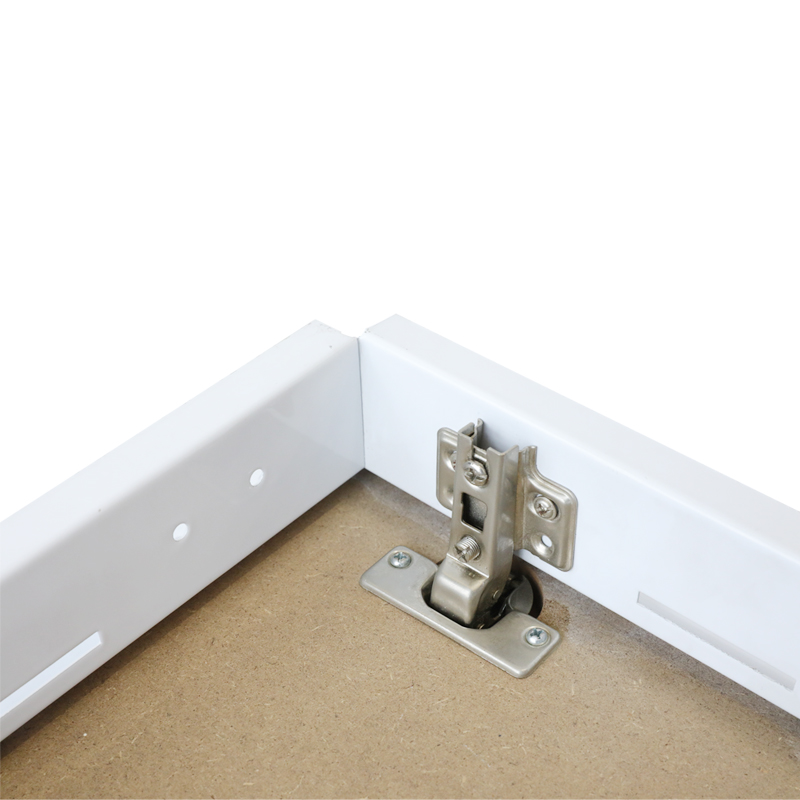

7.Stainless steel rivet hinges door are not removable.

8. Four bendable ears for fixing screws.

9 .Lock: Slotted lock/square lock/touch lock.

10.Standard size: 20x20/30x30/40x40/50x50/60x60.

1 1. All sizes are welded frames.

12.Customized size available.

13. Packaging: Each piece is put into a poly bag with shrink wrap, then put into a carton.

Advantage:

1. Multiple lock types are available.

2 . Slotted locks can be operated with a screwdriver or a coin.

3.Square locks are operated with an L-key.

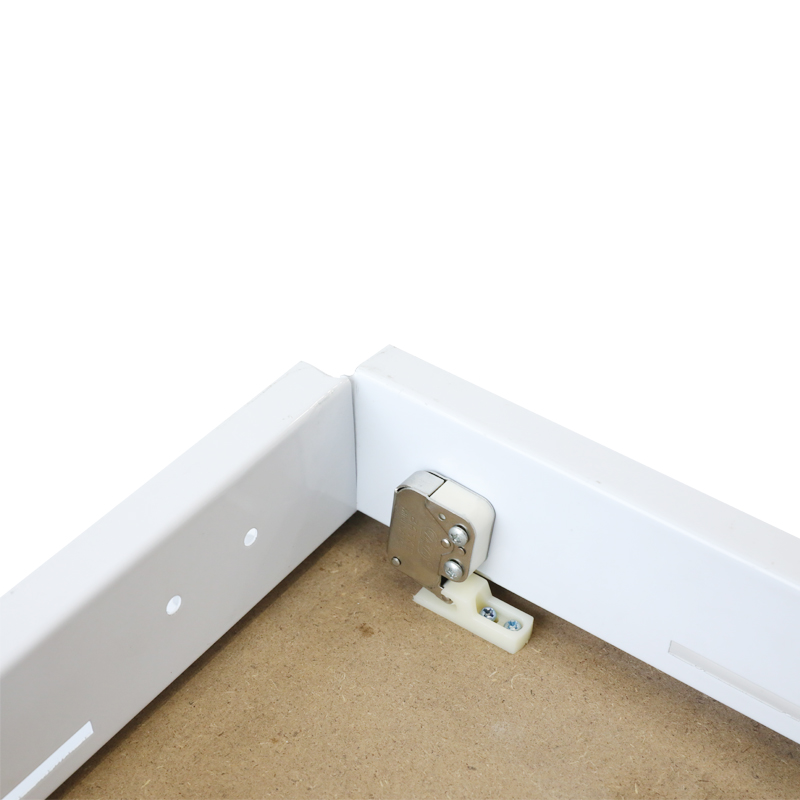

4.Touch locks feature a push-open mechanism.

5.The frame is robust/durable/sturdy.

PREV：SS-AP280FF MDF Access Panel With Flange Frame NEXT：No next article

Product details
Product drawings
Inquiry

Regular size

Item	Neck Size(mm)	Opening Size W1×L1(mm)	Overall Size W2×L2(mm)
SS-AP300 SB	300×300	295×295	358×358
	400×400	395×395	458×458
	450×450	445×445	508×508
	500×500	525×525	588×588
	600×600	595×595	658×658
