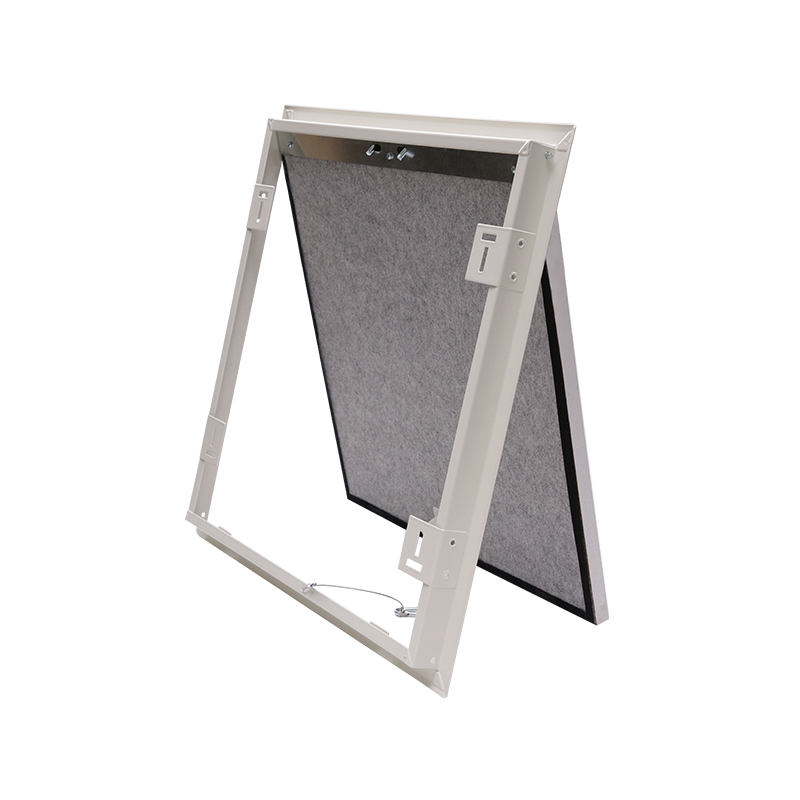

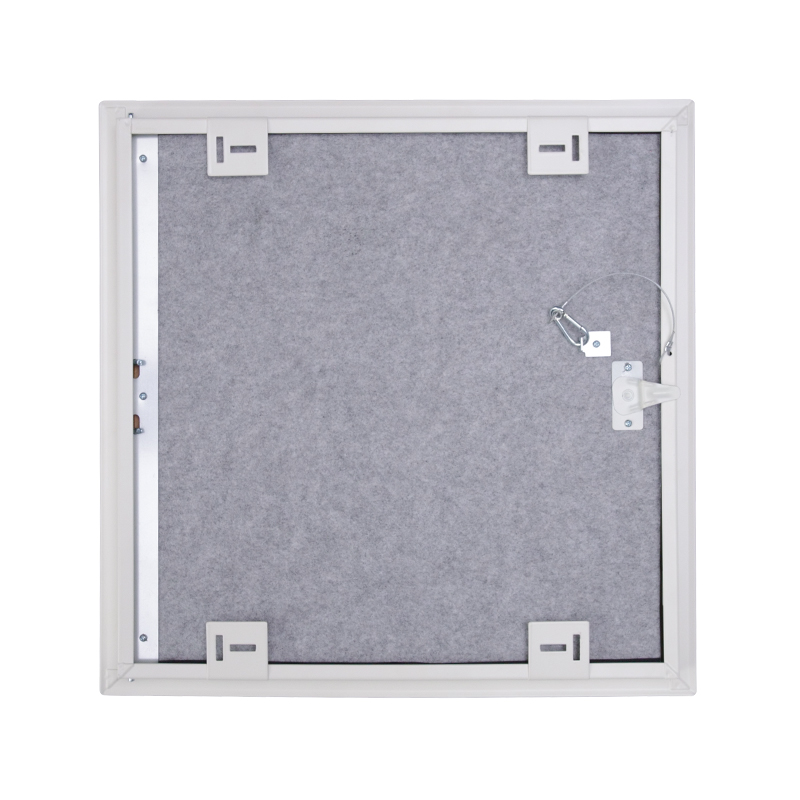

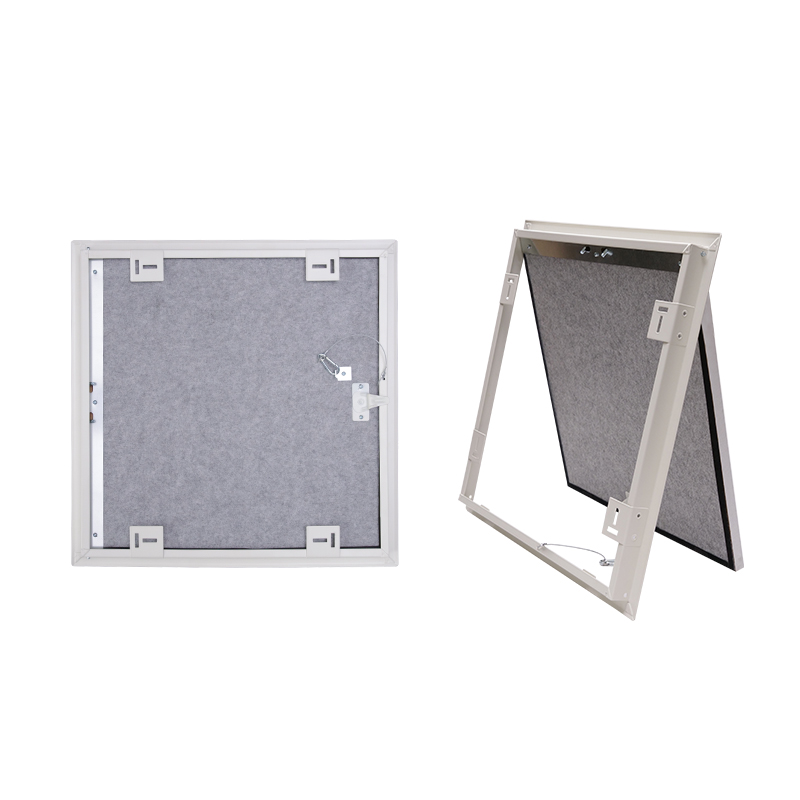

SS-AP280FF MDF Access Panel With Flange Frame

Description

1. MDF access panel for wall or ceiling application.
2. 1 mm galvanized steel frame.
3. 15mm MDF with felt-covered.
4. Soundproof rubber sealing between the floor and frame.
5. Flange frame finish.
6. White powder coating finish or special color available.
7. High durability and corrosion protection.
8. Steel bar with spring hinges, door removable.
9. Four bendable ears for fixing screws.
10. Lock: slotted lock/square lock /budget lock.
11. Standard size: 20x20/30x30/45x45/60x6012. All sizes are well-fitted. Customized size available.
13. Package: each piece put into to poly bag with shrink wrap, then put into a carton, pallet available.

Advantage

Different locks are available.
Slotted lock operated by screwdriver or coin.
Square lock operated by the L key.
Budget lock operated by a T plastic key.
The access panel achieves a weighted sound reduction index rating
of 30.
Best-selling in the Australia and New Zealand markets.

PREV：SS-AP252SB Access Panel With Beaded Frame NEXT：SS-AP300SB Australia New Design Set Bead Access Panel

Product details
Product drawings
Inquiry

Regular size

Item	Size(mm)	Opening size W1xL1(mm)	Overall size W2xL2(mm)
SS-AP280FF	300x300	298x298	338x338
	400x400	398x398	438x438
	450x450	448x448	488x488
	500x500	498x498	538x538
	600x600	598x598	638x638
