Ceiling Access Panel SA-AP330

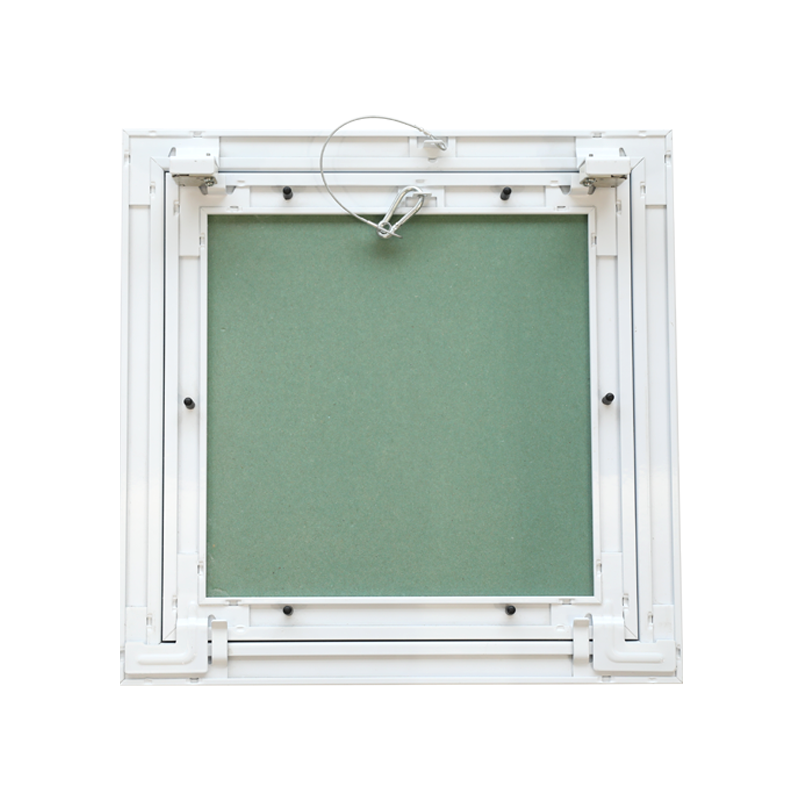

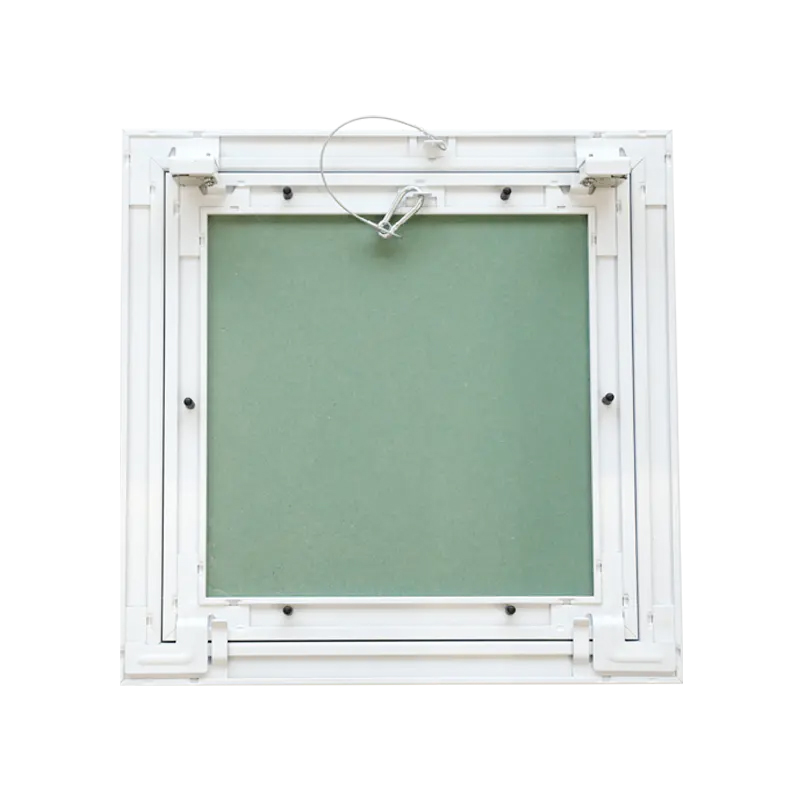

SA-AP330 PUSH OPEN CEILING ACCESS PANEL

1. Available in ceiling or drywall maintenance panel

2. Strong aluminum profile and strong hardware

3. White powder coated finish

4. With sealing strips between inner and outer frames

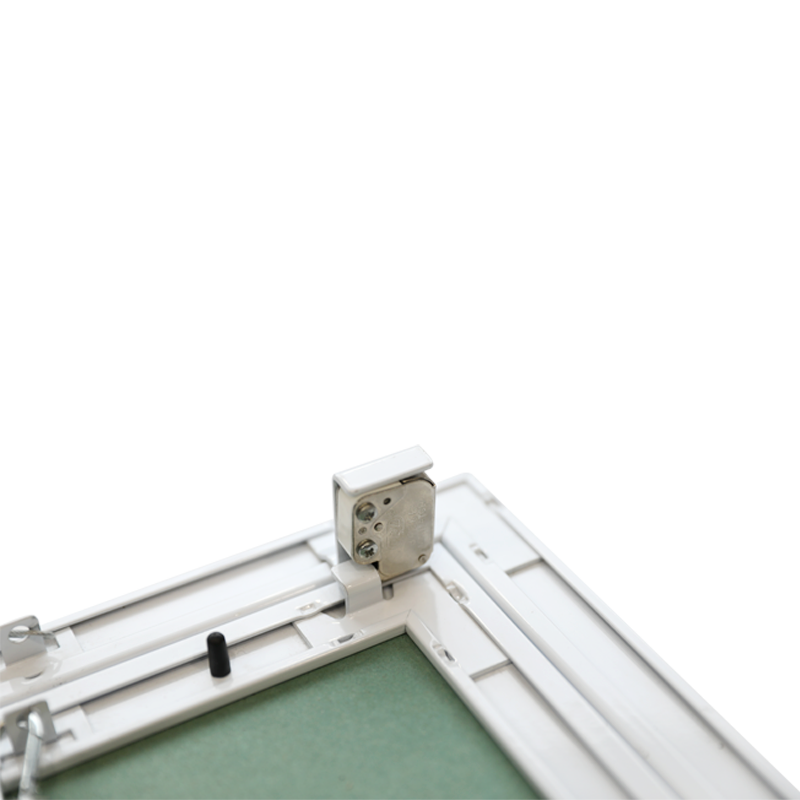

5. Concealed snap lock, push open

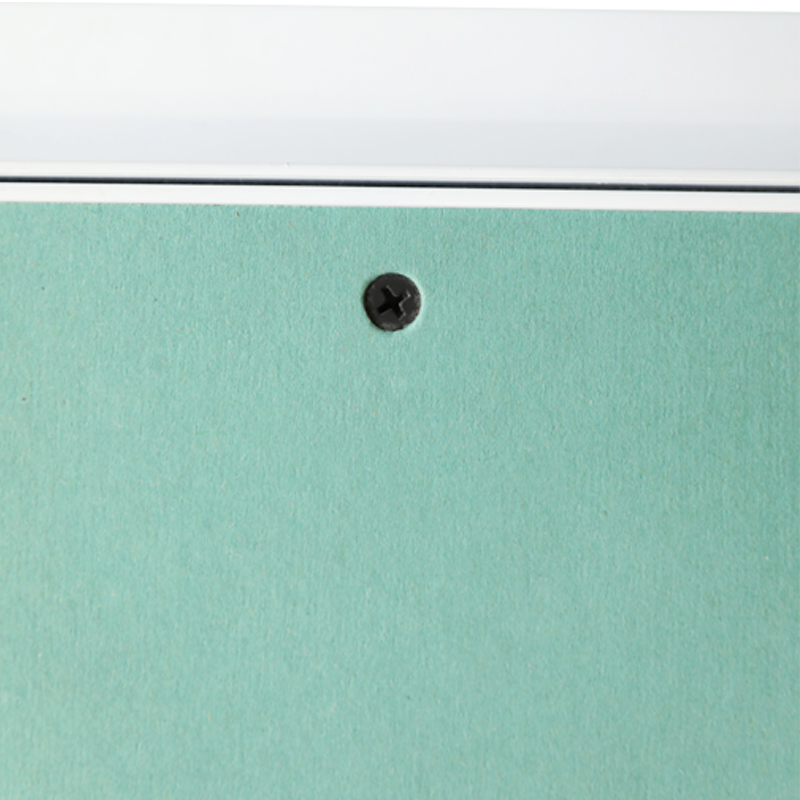

6. 12mm moisture-resistant gypsum board inlay optional: 9mm/12.5mm/15mm/25mm moisture-resistant gypsum board inlay

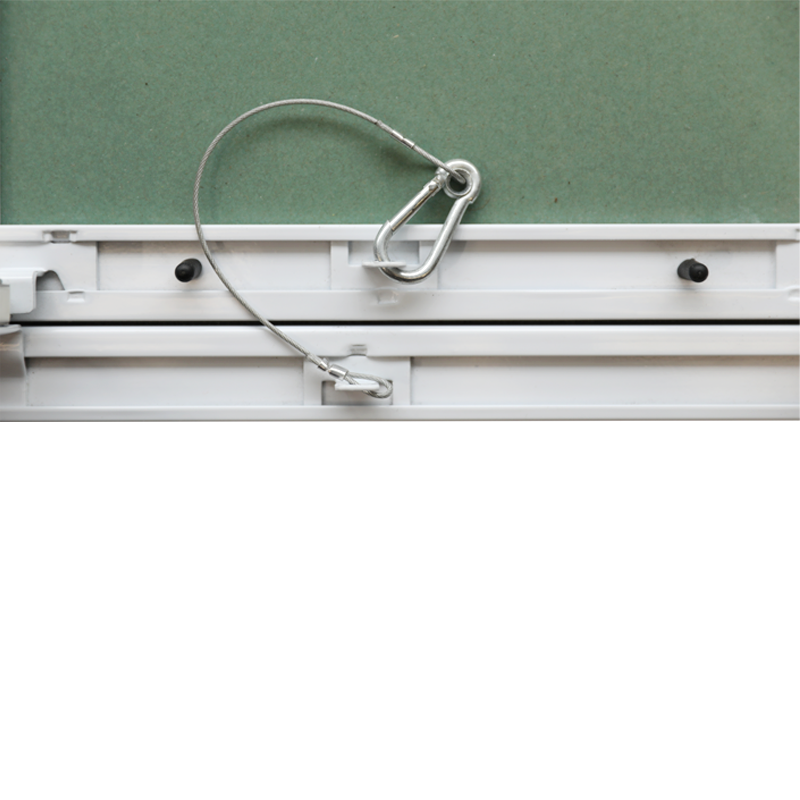

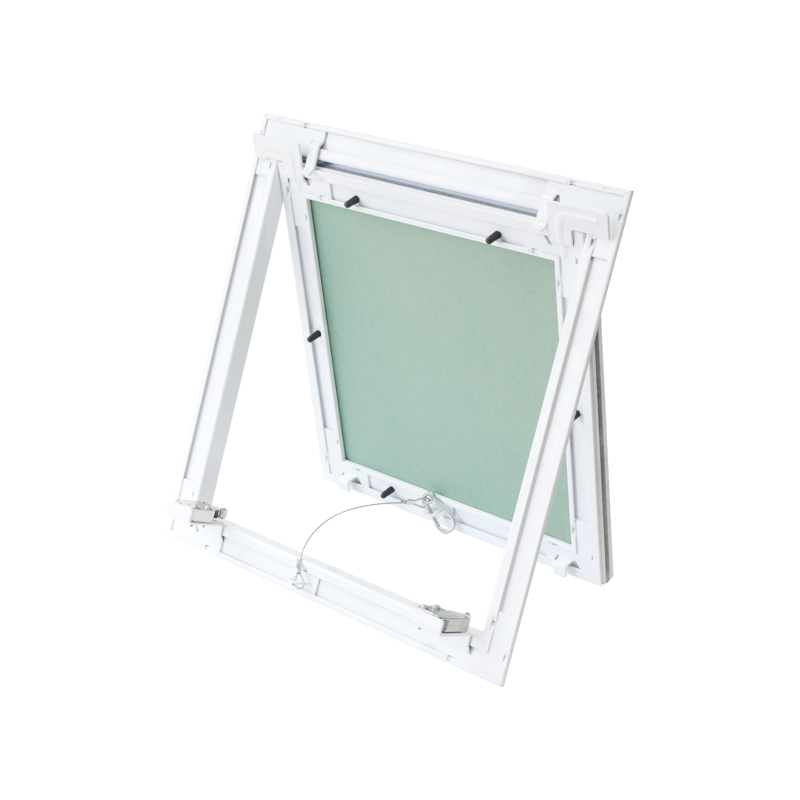

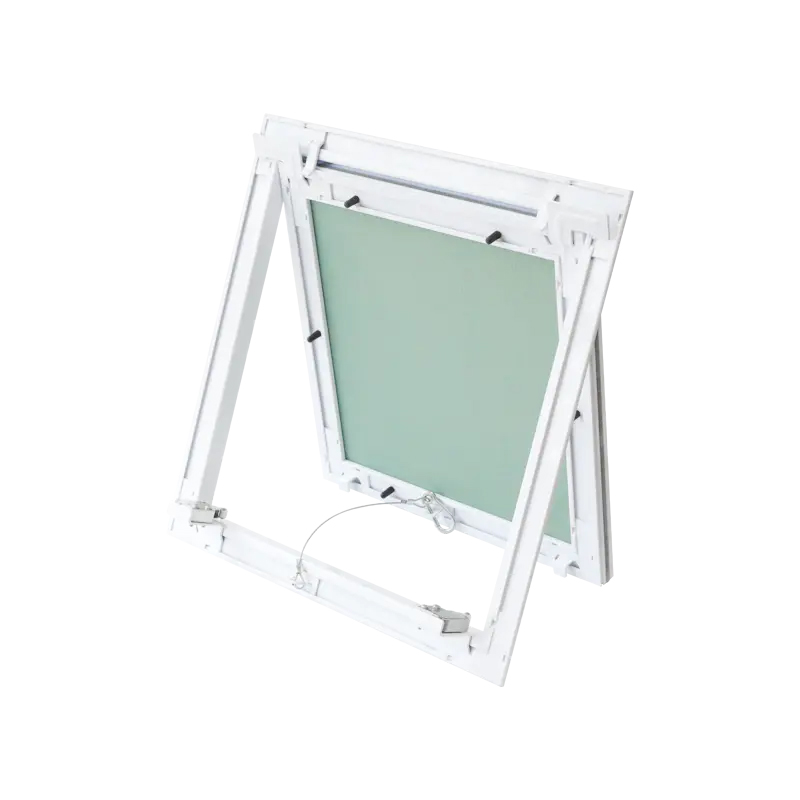

7. Removable door panel with safety

8. Quick installation without difficulty

9. Standard size: 20x20cm, 30x30cm, 40x40cm, 45x45cm, 50x50cm, 60x60cm, 60x120cm

10. Customized sizes and colors are available

11. Package: 1pc/bubble bag, then put into carton, pallet is available.

Advantage:

Concealed snap lock, push open.

Star products in the UAE&KSA market

Frameless access panel after installation

PREV：SA-AP338 Sliding Open Aluminum Access Panel NEXT：SA-AP41R Circular Aluminum Access Panel

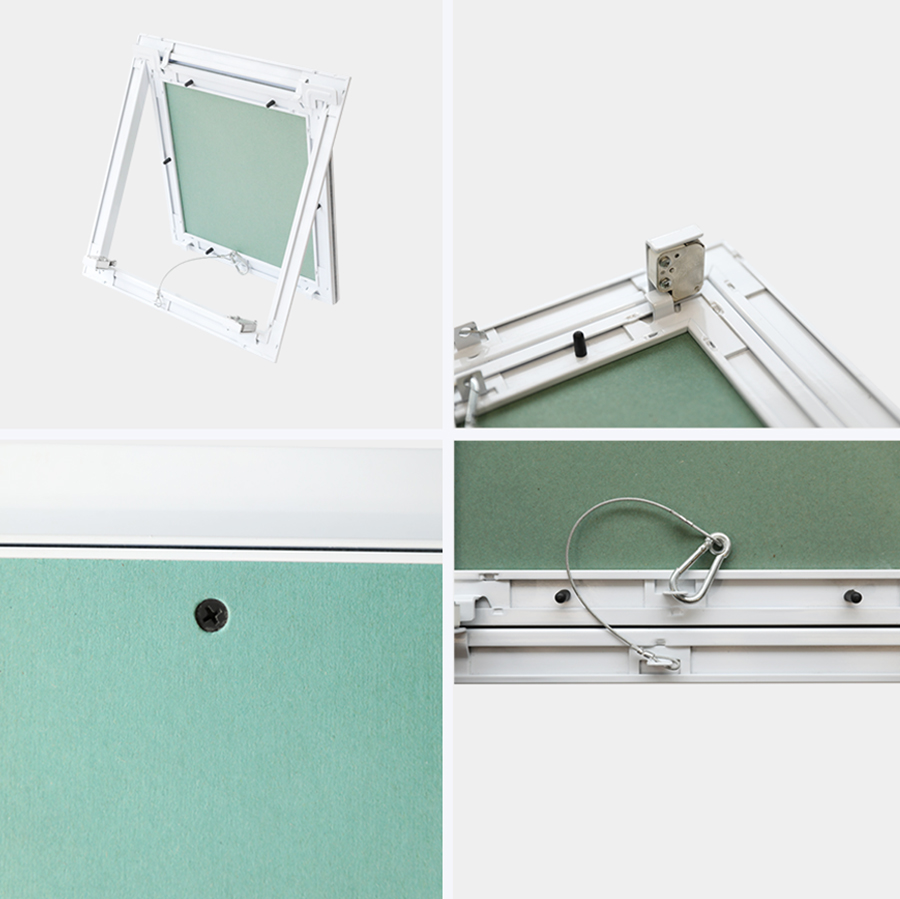

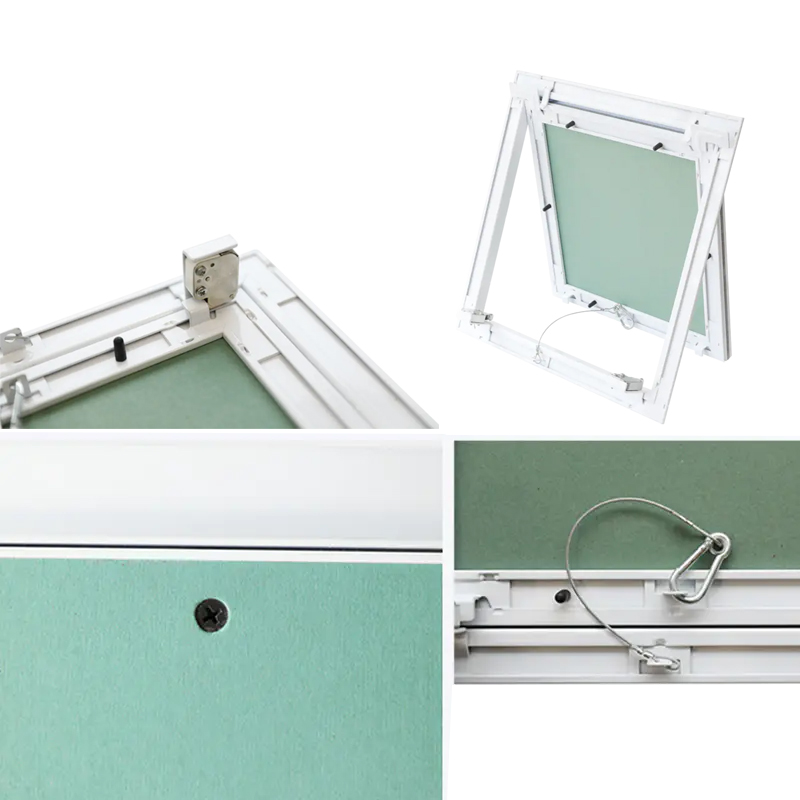

Product details
Product drawings
Inquiry

Regular size

Item	Neck Size(mm)	Opening Size W1×L1(mm)	Overall Size W2×L2(mm)
SA-AP330 without powder coating	308×308	300×300	358×358
	408×408	400×400	458×458
	458×458	450×450	508×508
	508×508	500×500	558×558
	608×608	600×600	658×658
