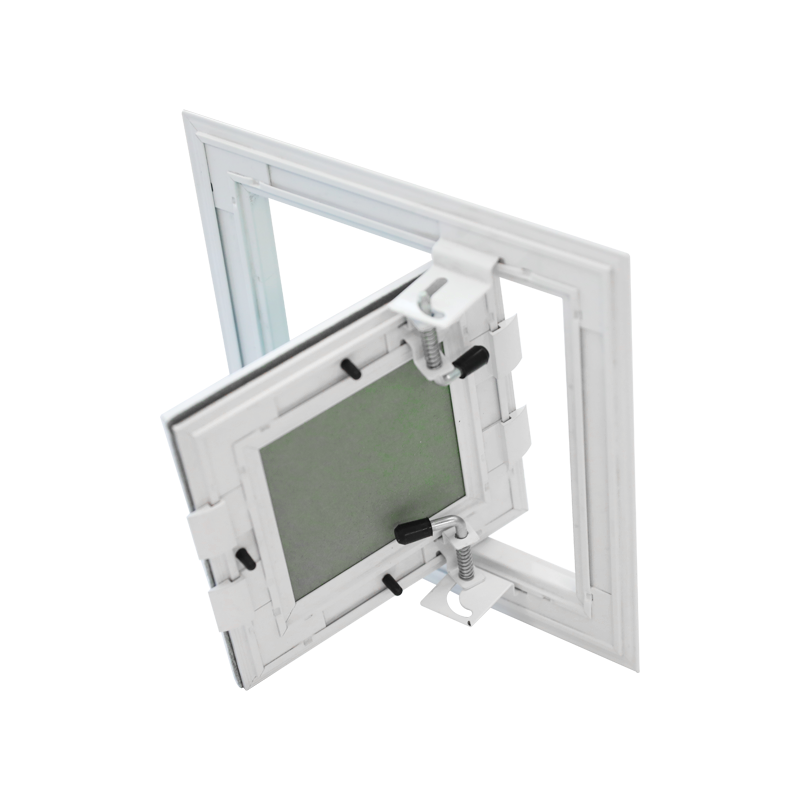

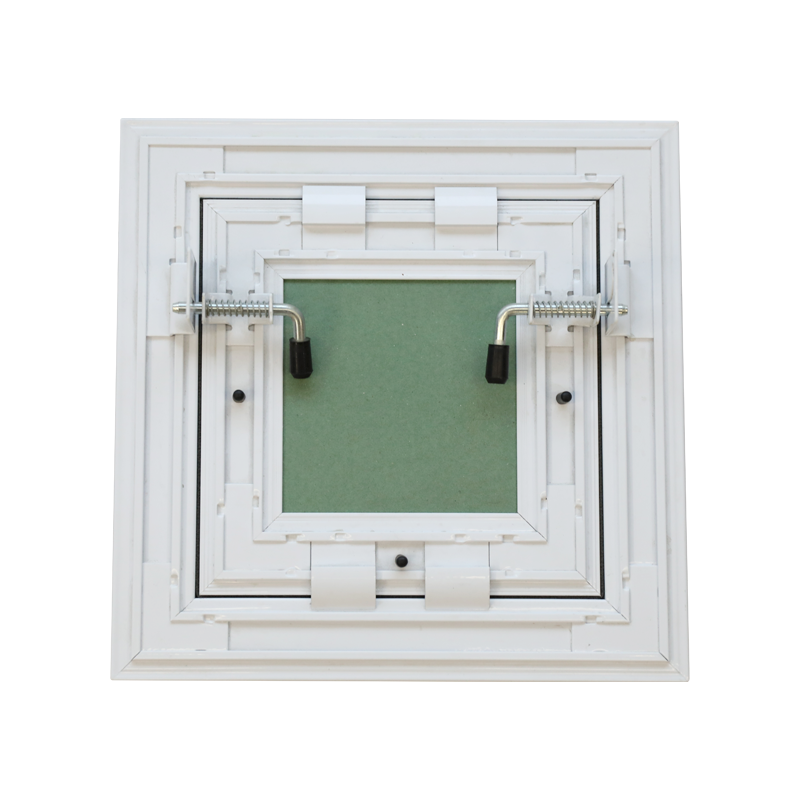

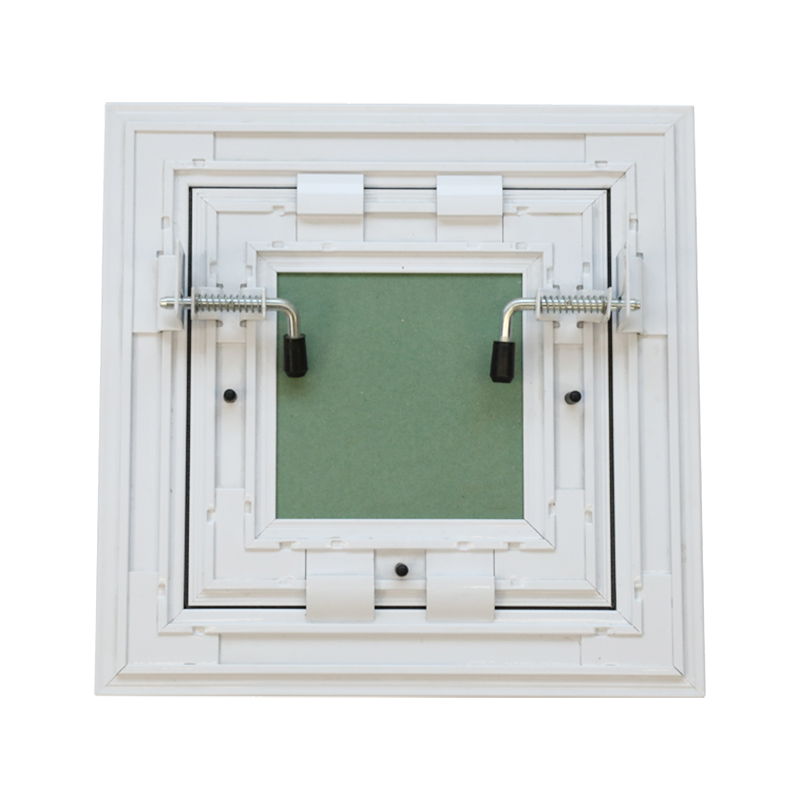

SA-AP320 Sliding Open Aluminum Access Panel

SA-AP320 SLIDING OPEN ALUMINUM ACCESS PANEL

1. Available in ceiling or drywall maintenance panel.

2. 2mm aluminum profile and strong hardware.

3. White powder coated finish.

4. With sealing strips between inner and outer frames.

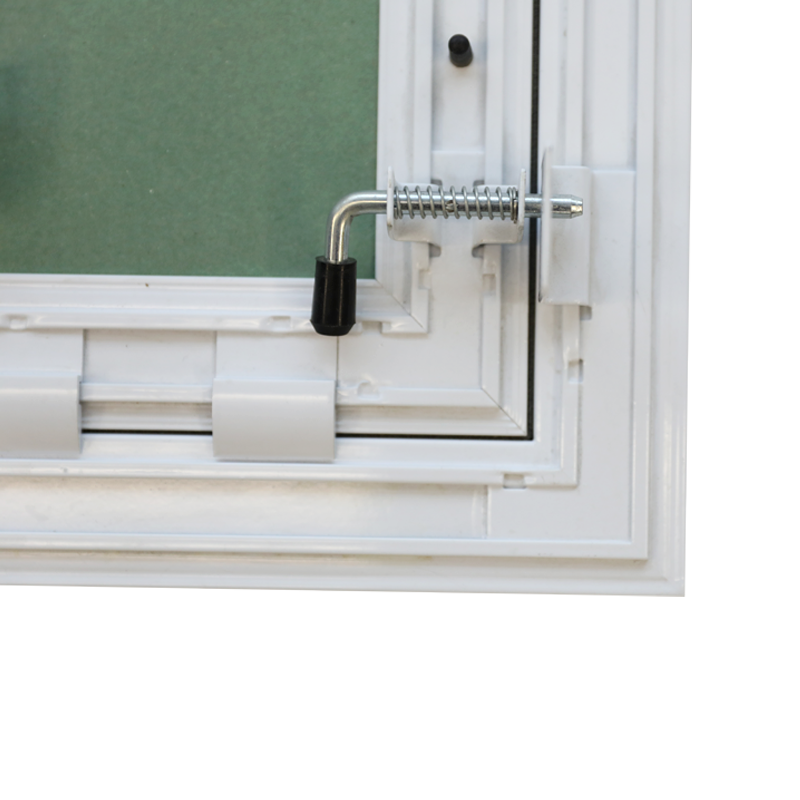

5. Special fixed for inner and outer frames by spring loaded easy control handle.

6. 12mm gypsum board inlay, optional: 12.5mm and 15mm gypsum board.

7. Removable door panel with safety.

8. Quick installation without difficulty.

9. Standard size: 20x20cm, 30x30cm, 40x40cm, 45x45cm, 50x50cm, 60x60cm, 60x120cm.

10. Customized sizes and colors are available.

11. Package: 1pc/bubble bag, then put into carton, pallet is available.

Advantage:

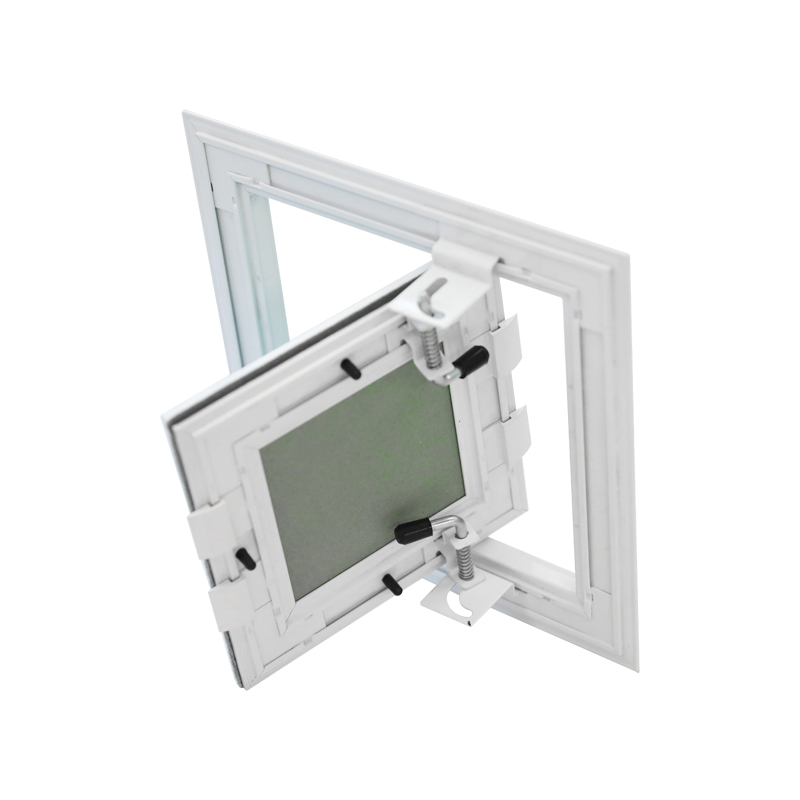

A double opening, an inner or outer opening.

PREV：SA-AP360 Access Panel NEXT：SA-AP361M Riveting Connection Access Panel

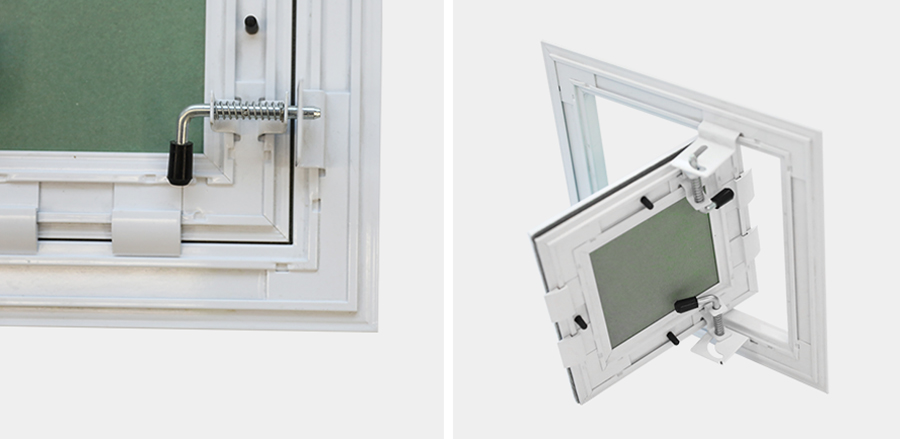

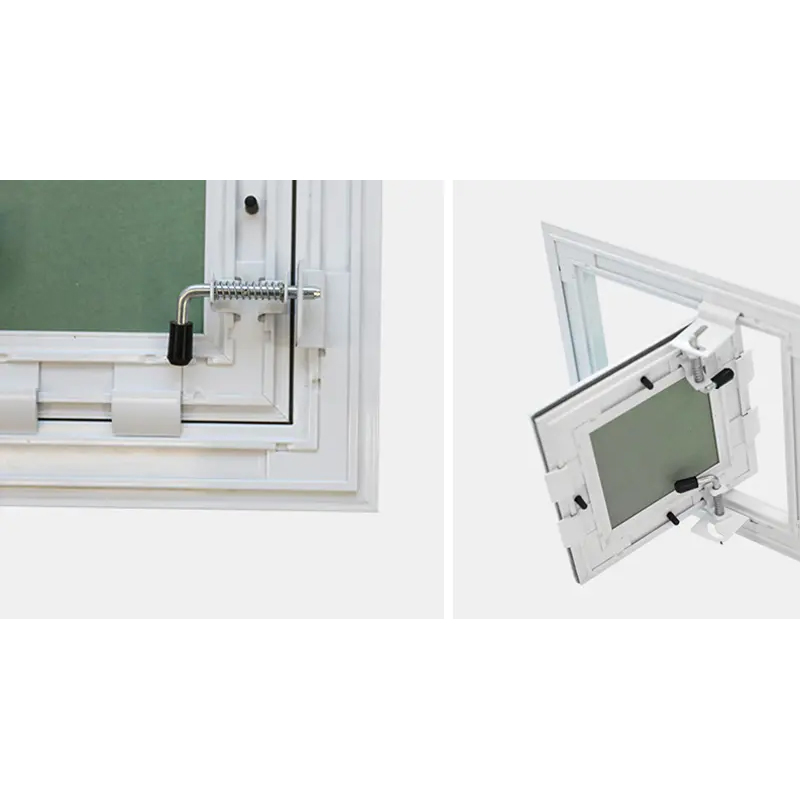

Product details
Product drawings
Inquiry

Regular size

Item	Neck Size(mm)	Opening Size	Overall Size
Item	Neck Size(mm)	W1×L1(mm)	W2×L2(mm)
SA-AP320	300×300	296×296	378×378
	400×400	396×396	478×478
	450×450	446×446	528×528
	500×500	496×496	578×578
	600×600	596×596	678×678
