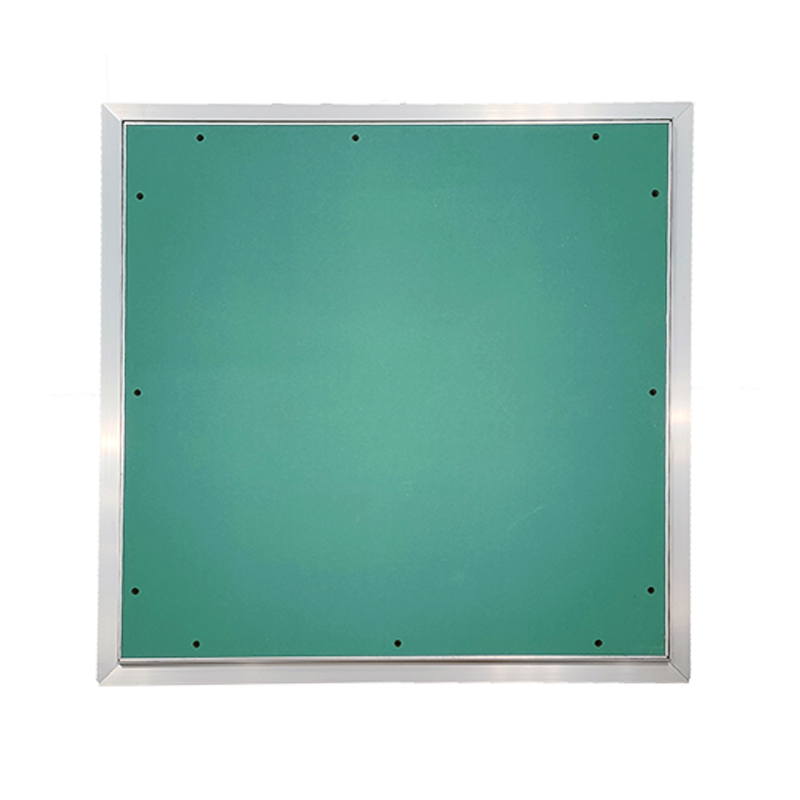

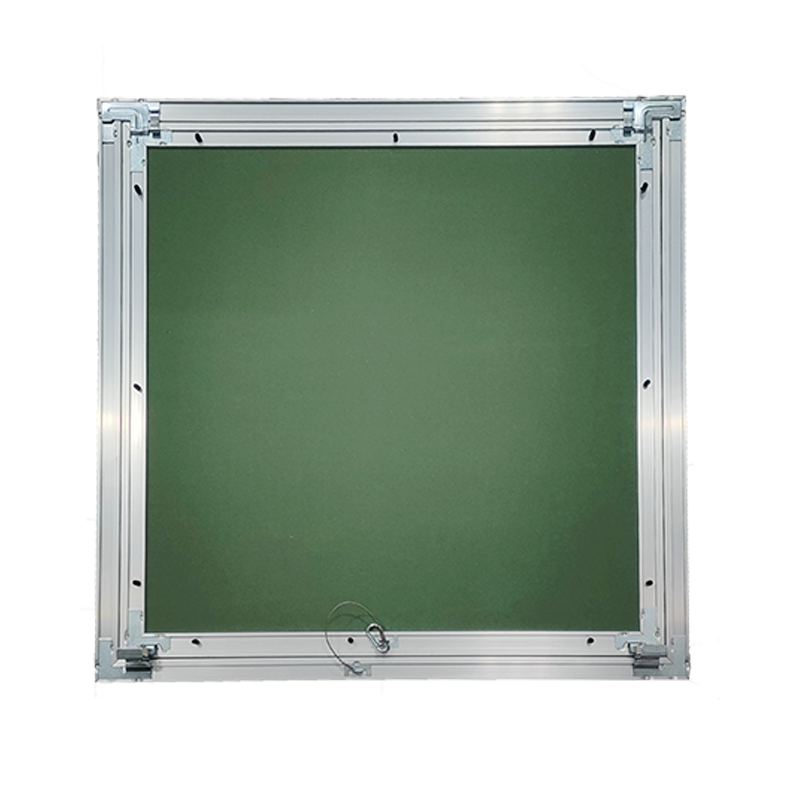

Anodized Aluminum Access Panel

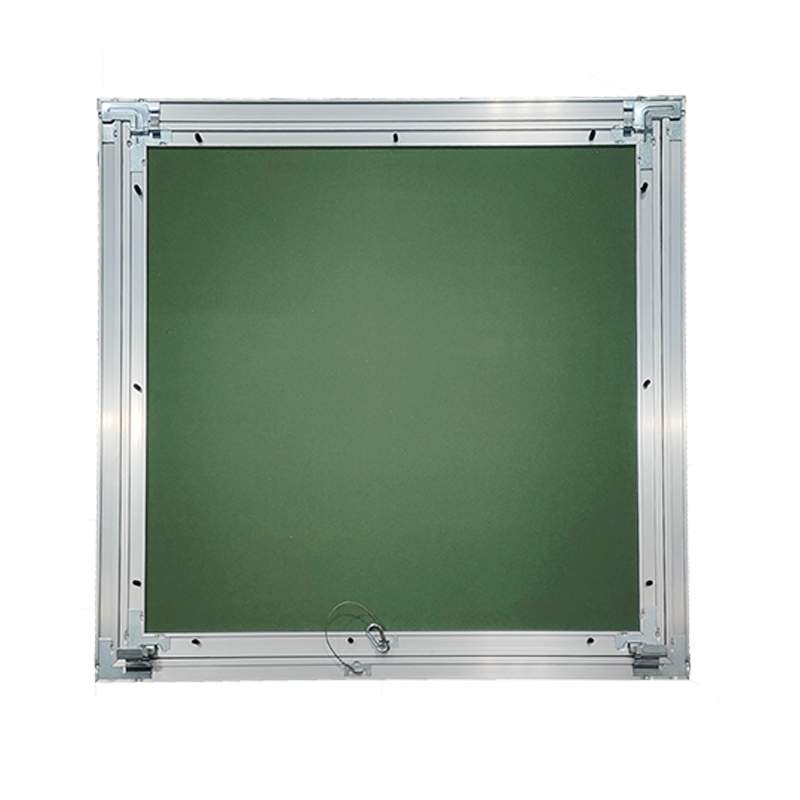

PUSH OPEN THE ANODIZED ALUMINUM ACCESS PANEL

1. Suitable for ceiling or drywall maintenance panels.

2. Anodized aluminum material with high wear resistance, high corrosion resistance, good insulation properties, attractive decorative effect, and an oxide film hardness of 500HV.

3. Sealing strips integrated between inner and outer frames.

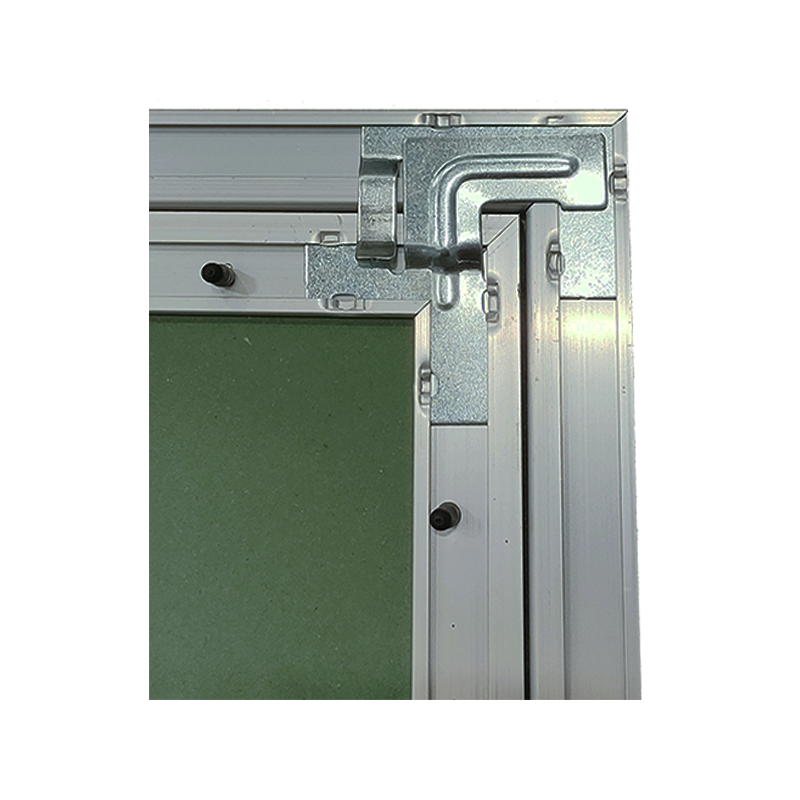

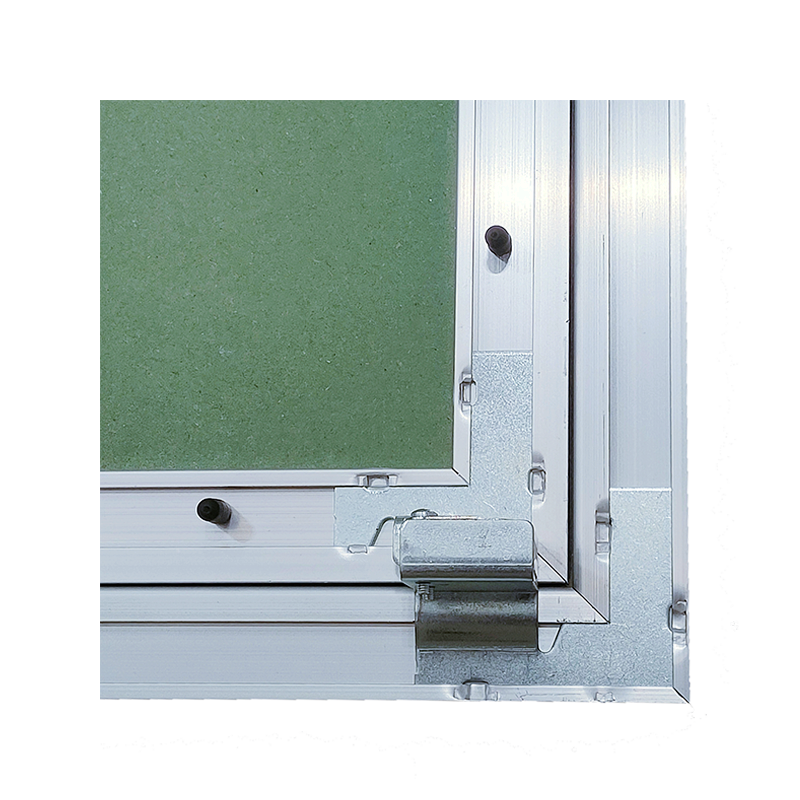

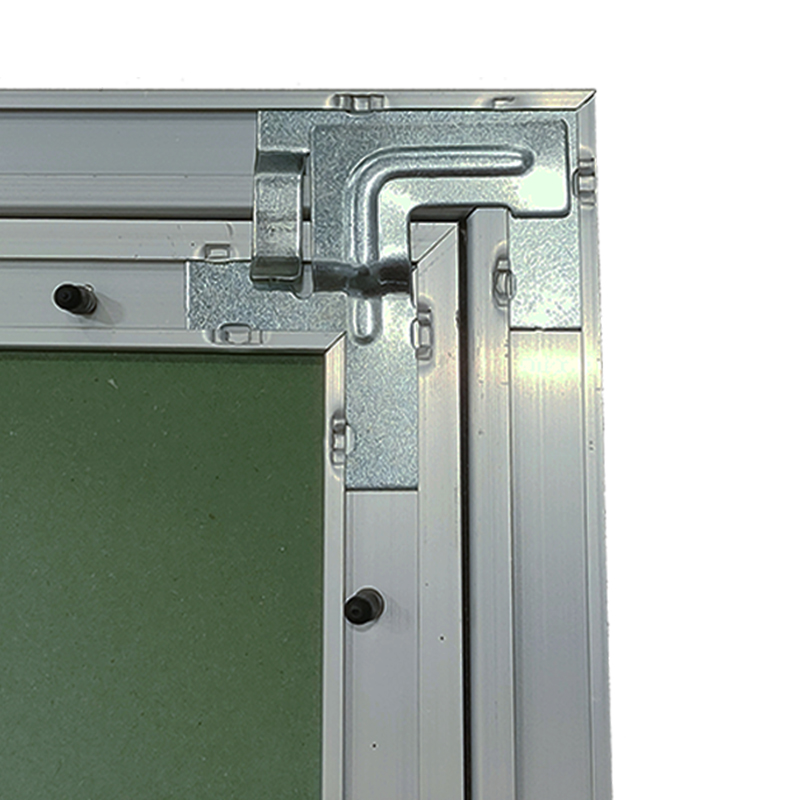

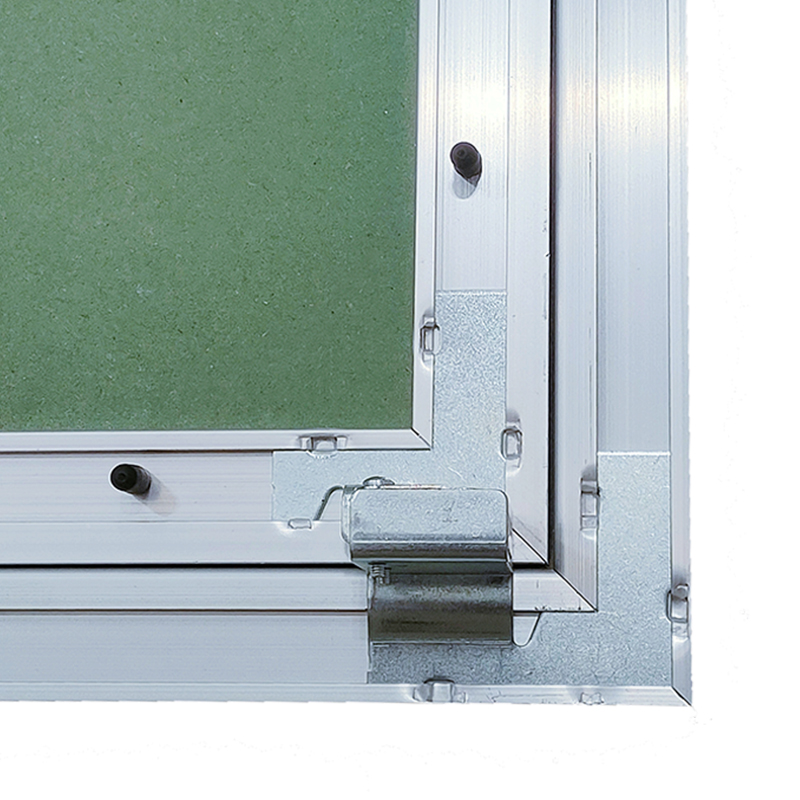

4. Concealed snap lock; push to open.

5. 12mm moisture-resistant gypsum board inlay. Options: 9mm/12.5mm/15mm/25mm moisture-resistant gypsum board inlay.

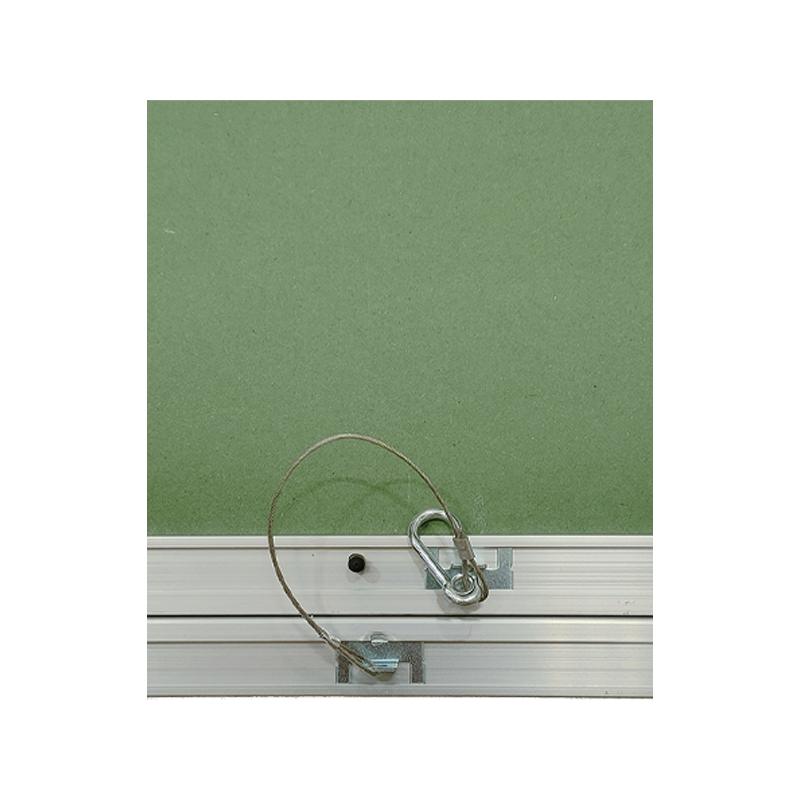

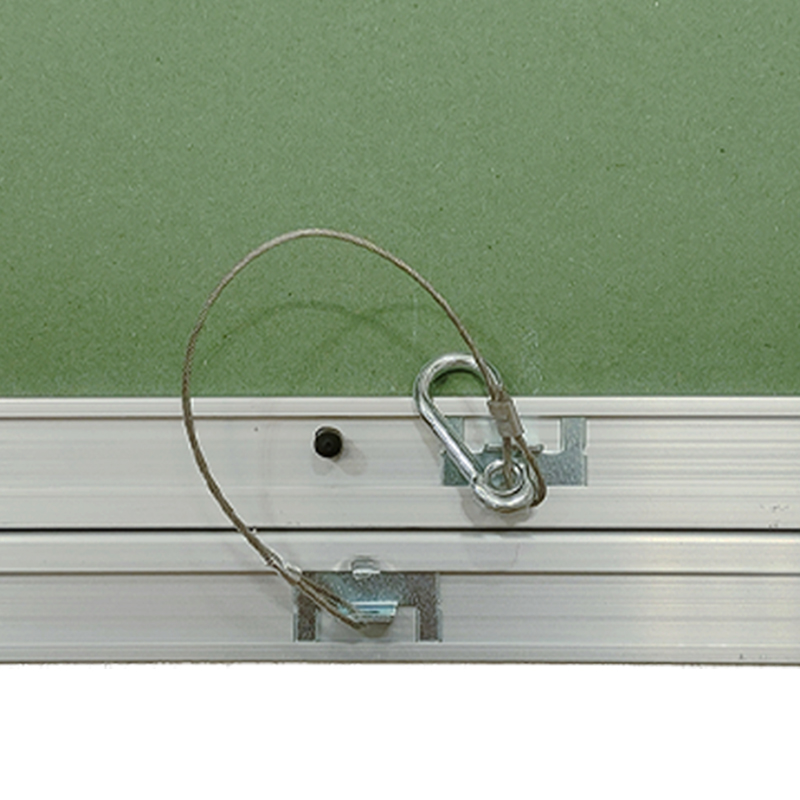

6. Removable door panel with safety features.

7. Quick and easy installation.

8. Standard sizes: 20×20cm, 30×30cm, 40×40cm, 45×45cm, 50×50cm, 60×60cm, 60×120cm.

9. Custom sizes and colors available.

10. Packaging: 1 piece per bubble bag, then packed in a carton; pallet packaging is available.

Advantages:

Concealed snap lock for easy push-open operation.

Star product in the UAE and KSA markets.

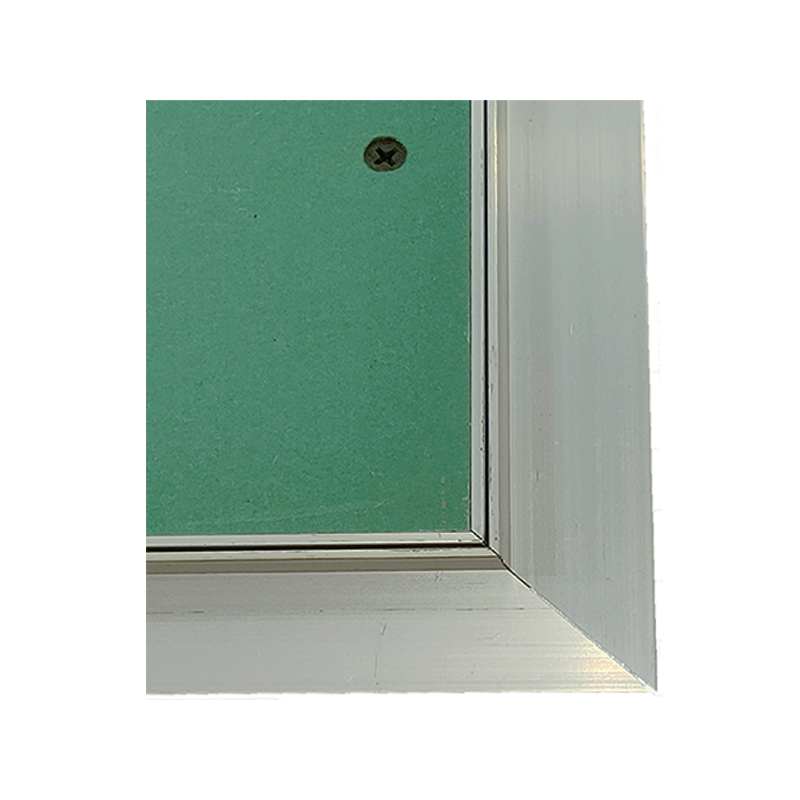

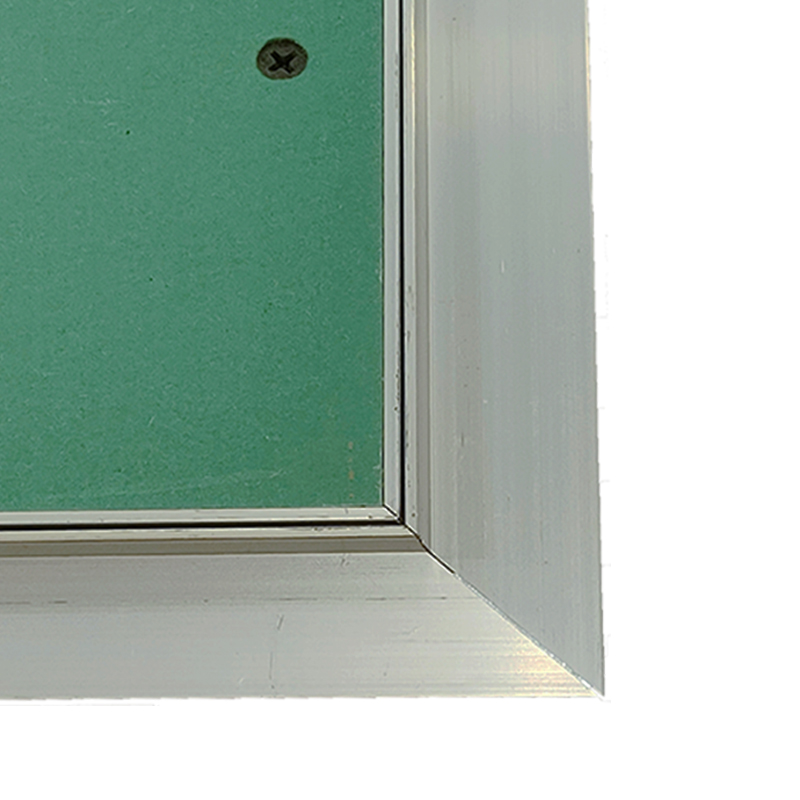

Frameless appearance after installation.

PREV：SA-AL339P Aluminum Access Panel NEXT：SA-AP339P Fire Rated Gypsum Board

Product details
Product drawings
Inquiry

Regular size

Item	Neck Size(mm)	Opening Size W1×L1(mm)	Overall Size W2×L2(mm)
ANODIZED ALUMINUM ACCESS PANEL	308×308	300×300	358×358
	408×408	400×400	458×458
	458×458	450×450	508×508
	508×508	500×500	558×558
	608×608	600×600	658×658
