OEM SA-AL339P Aluminum access panel with aluminum board

We are focus on practical design and technology combination,
and make efforts to grow in the continuous upgrading.

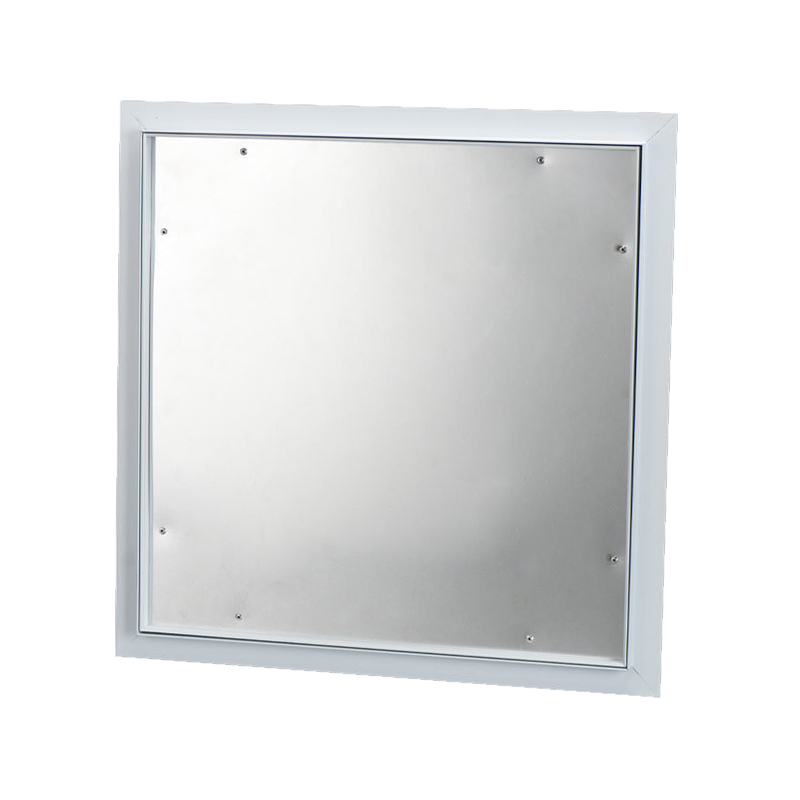

SA-AL339P Aluminum access panel with aluminum board

Location: Huzhou,China
Packing details: PP bag ,white box, outer carton; Blister , carton
Brands: OEM
Certificate: CE,SONCAP SGS,CCC
Terms of payment: Consultation
Minimum order quantity: 1000pcs
Delivery: By sea, by air , by courtier
Delivery time: 25 days
Contact Us

Products Description

1. Available in ceiling or drywall maintenance

2. Strong aluminum profile and G.I accessories

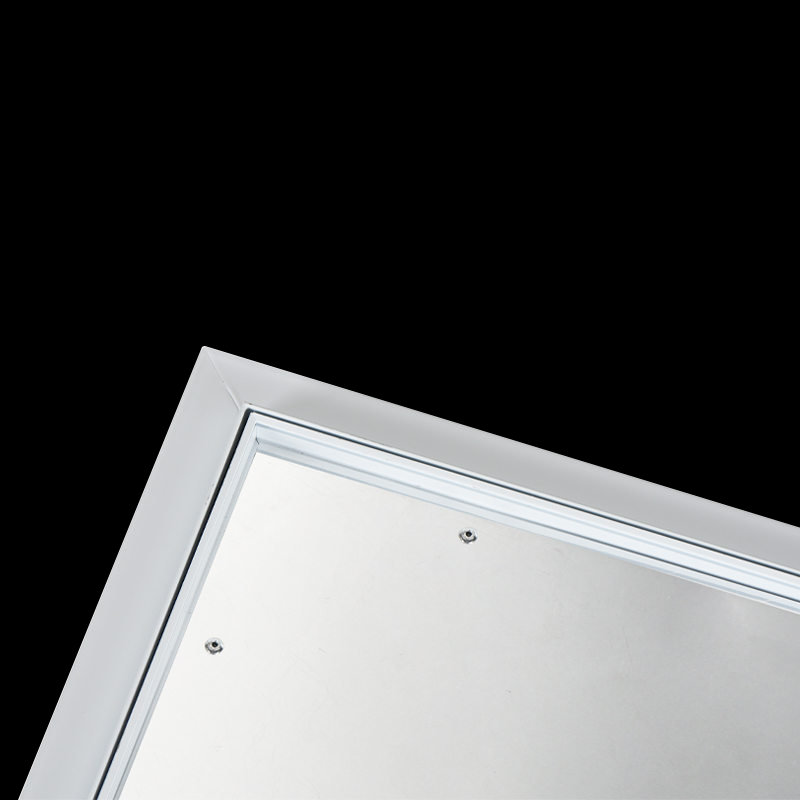

3. White powder coated finish of the frame.

4. With sealing strips between inner and outer frames

5. Concealed snap lock, push open

6. Strong aluminum sheet inlay, can install with different material as your need.

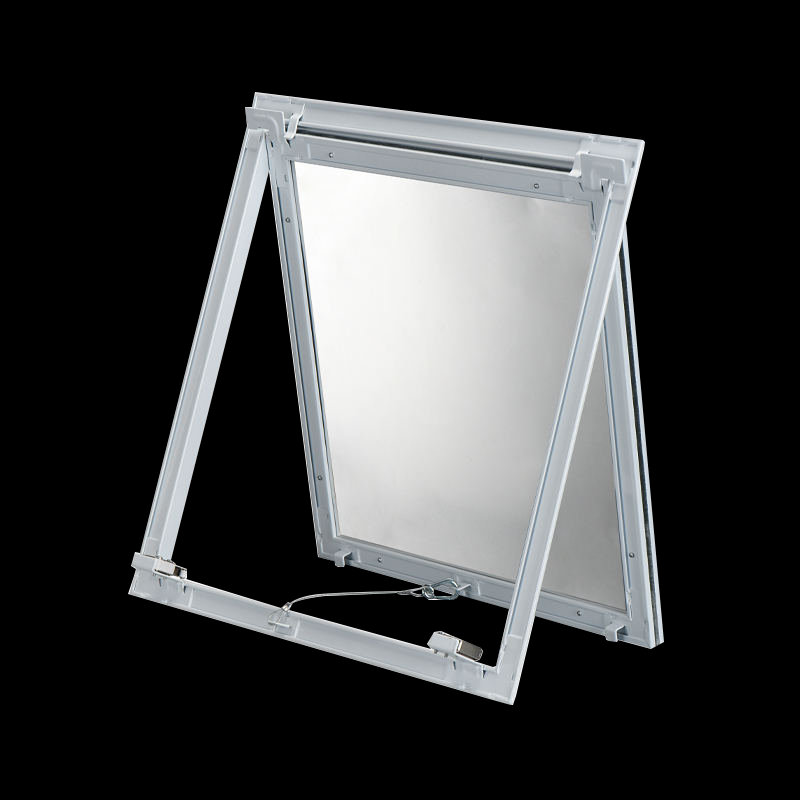

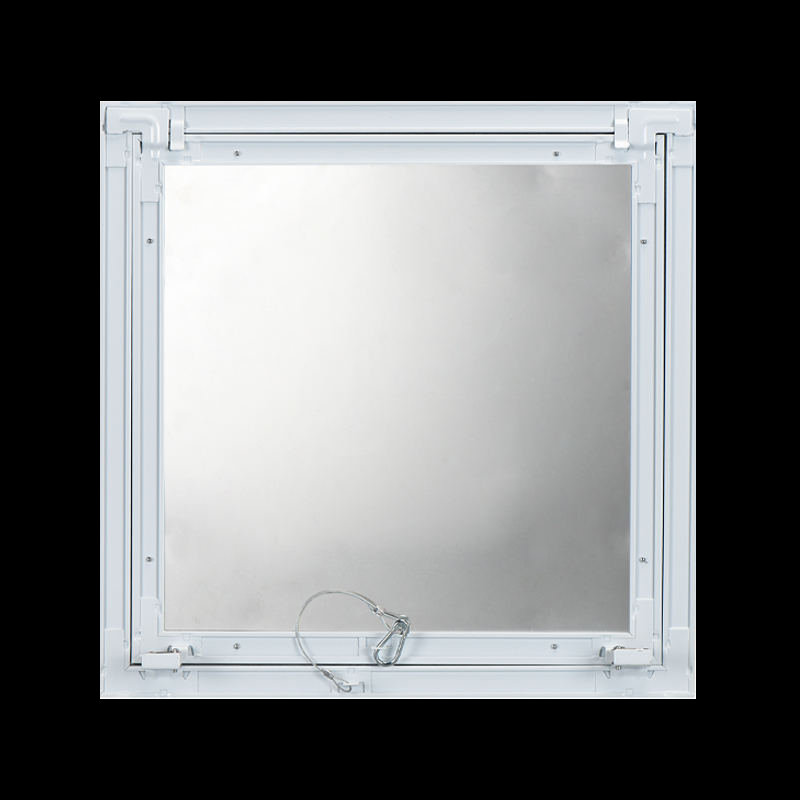

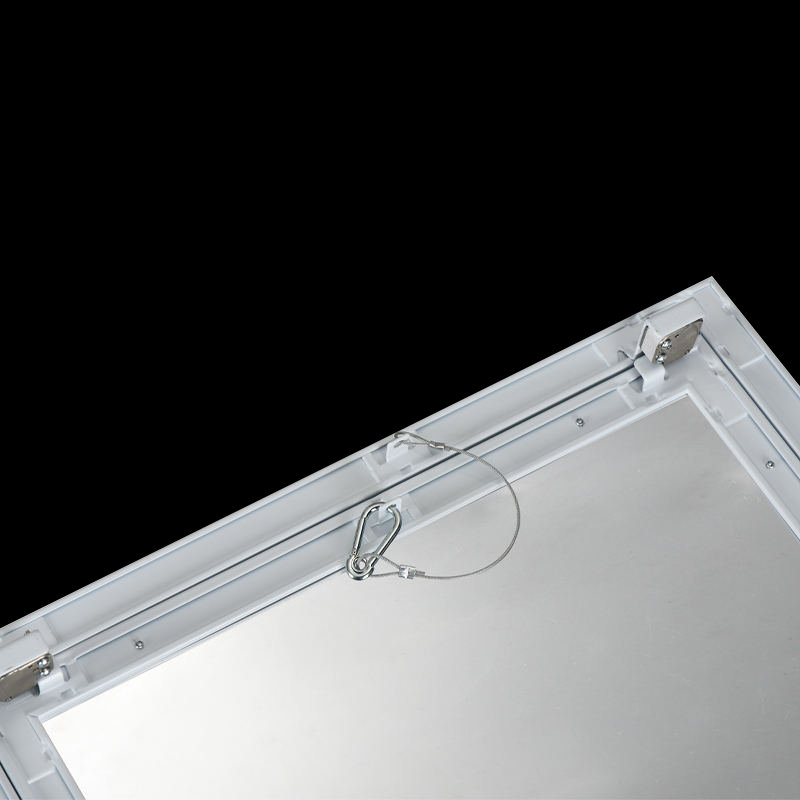

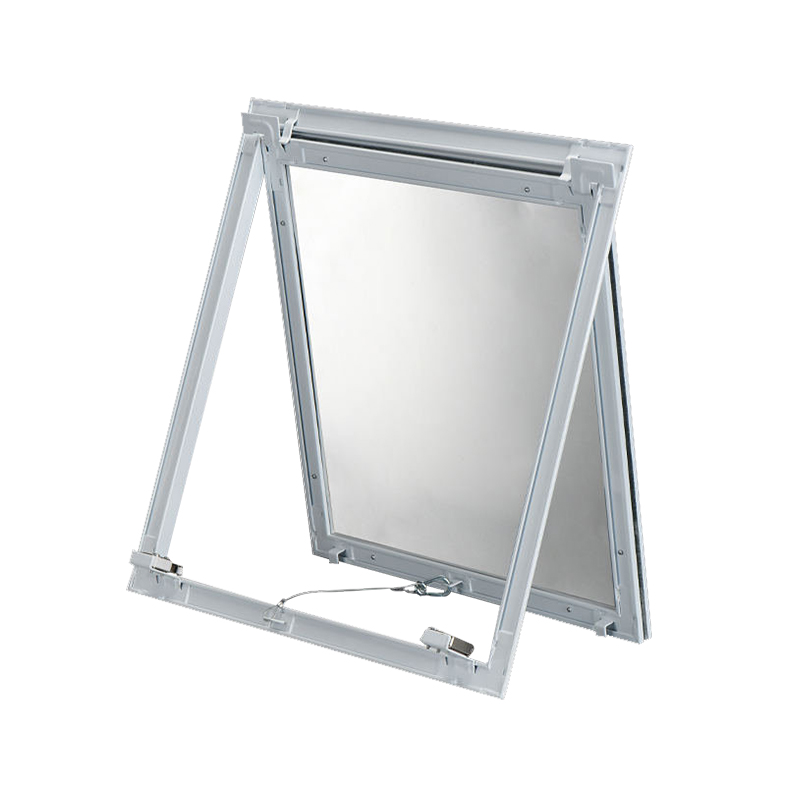

7. Removable door panel with concealed safety wire

8. Quick installation without difficulty

9. Standard size: 20x20cm, 30x30cm, 40x40cm, 45x45cm, 50x50cm, 60x60cm, 60x120cm

10. Customized size and color are available

11. Package: 1pc/bubble bag, then put into carton, pallet is available.

Options (bulk package, single inner box package or wooden pallet package)

Advantage

Concealed snap lock, push open and close

Frameless access panel after installation

Different materials can be installed inside of the panel, make the access panel has the same surface with wall or ceiling around.



Item

Size(mm)

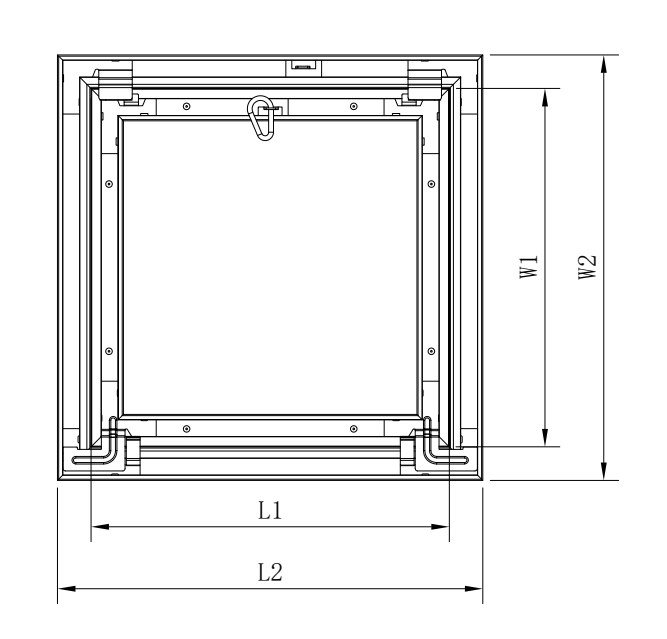

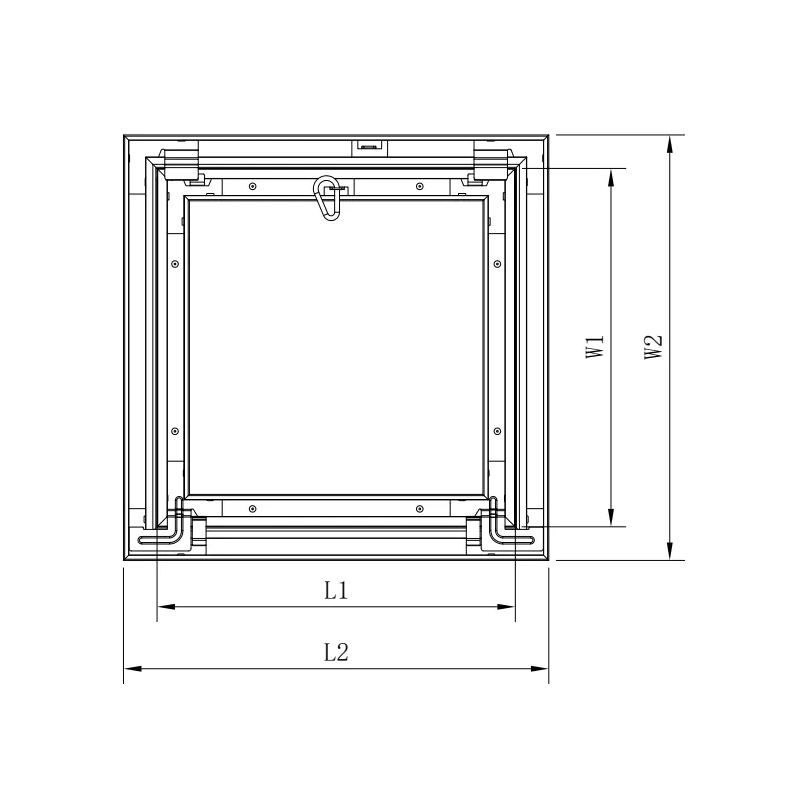

Opening size W1xL1(mm)

Overall size W2xL2(mm)





SA-AL339P

300x300

304x304

352x352

400x400

404x404

452x452

450x450

454x454

502x502

500x500

504x504

552x552

600x600

604x604

652x652
