SS-AP247 STEEL ACCESS PANEL

This access panel is designed for mounting on walls and ceilings.

Constructed with 1.5mm galvanized steel for both frame and door.
Adopts flanged frame structure, finished with white powder coating. Custom color finishes can be provided upon request.
Boasts outstanding durability and reliable anti-corrosion performance for long-term use.

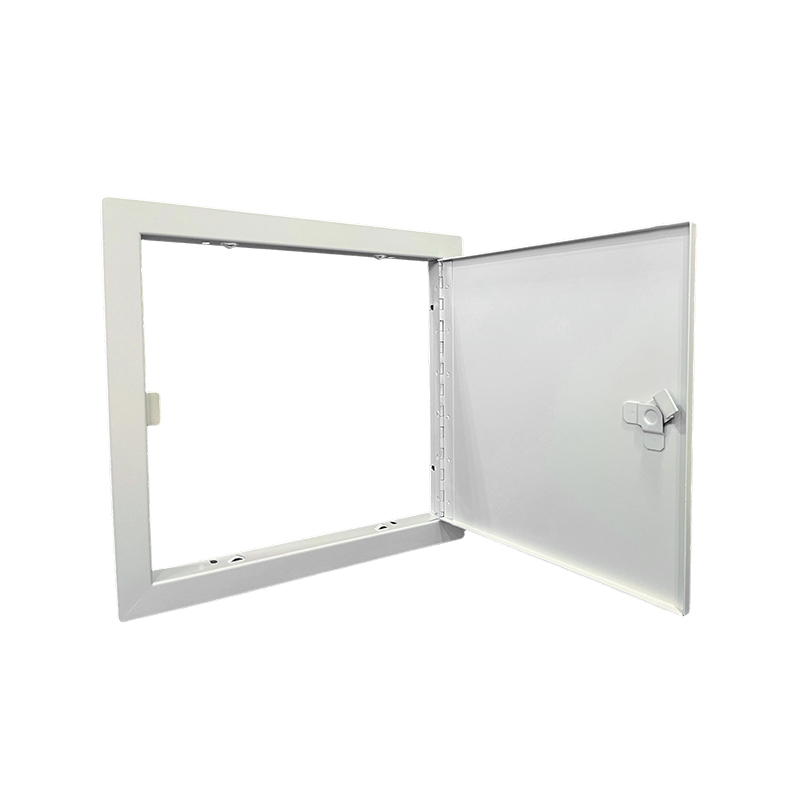

Fitted with integrated piano hinge to keep the door fixed and non-removable.
Comes with pre-drilled holes on the frame for simple screw-in installation.

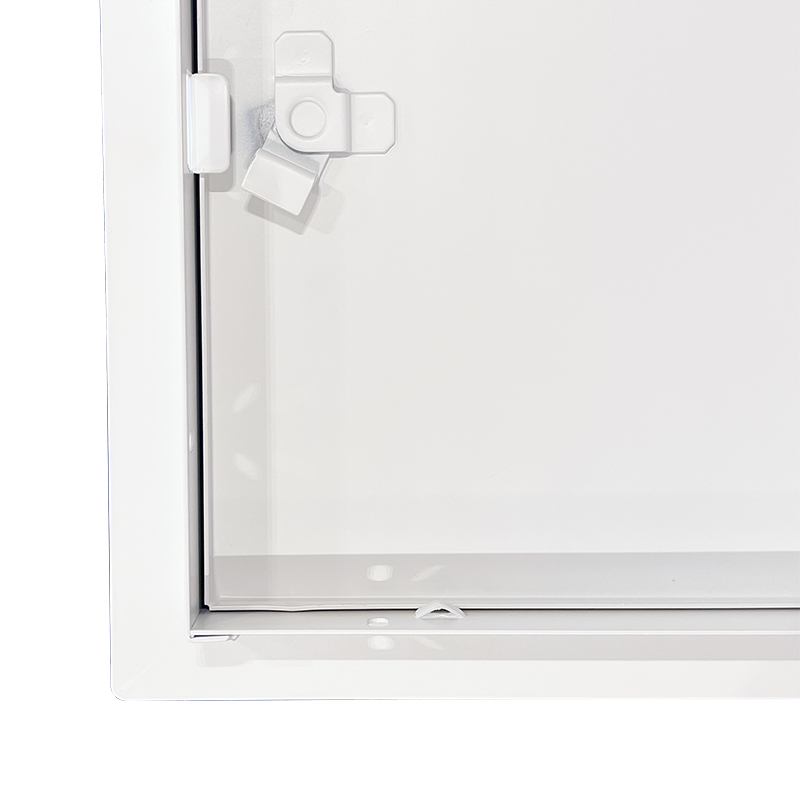

Equipped with a screwdriver-operated lock for secure closure.
Standard dimensions: 20×20, 30×30, 40×40, 45×45, 50×50, 60×60. All standard units are built with welded frames.
Custom sizes are supported to meet diverse requirements.
Packaging: Each unit is first wrapped with poly bag and shrink film, then packed into outer cartons.

Advantage
It can be conveniently unlocked with a screwdriver or coin. The bent door cover features solid construction for great sturdiness and durability.

PREV：Aluminum Roof Hatch SA-AP420 NEXT：No next article

Product details

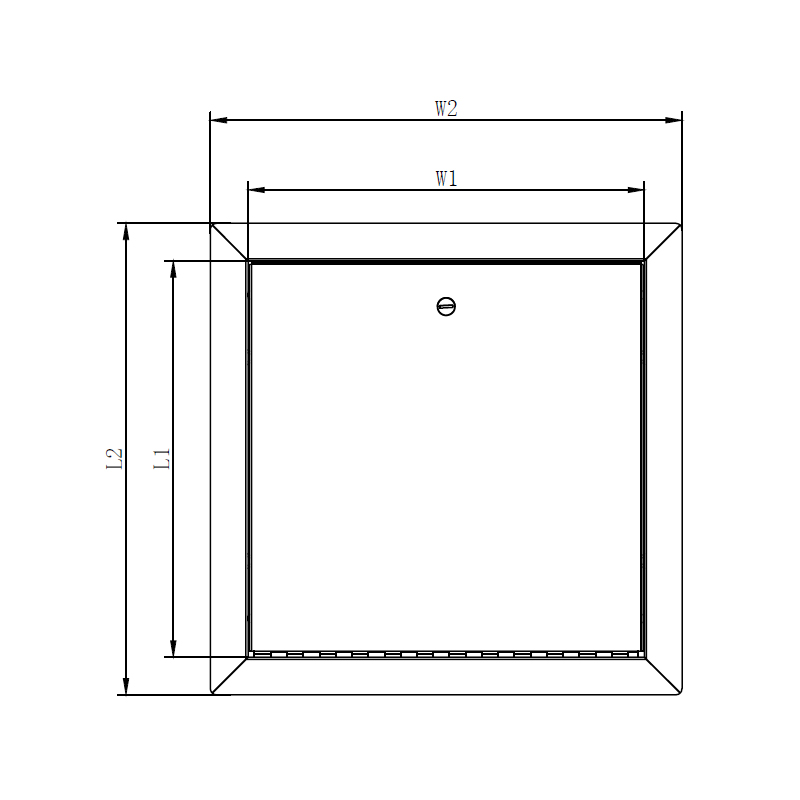

Product drawings
Inquiry

Item	Size(inch)	Opening Size W1×L1(mm)	Overall Size W2×L2(mm)
SS-AP247	8x8	203x203	261x261


	12x12	305x305	363x363
	16x16	406x406	464x464
	20x20	508x508	566x566
	24x24	609x609	667x667
