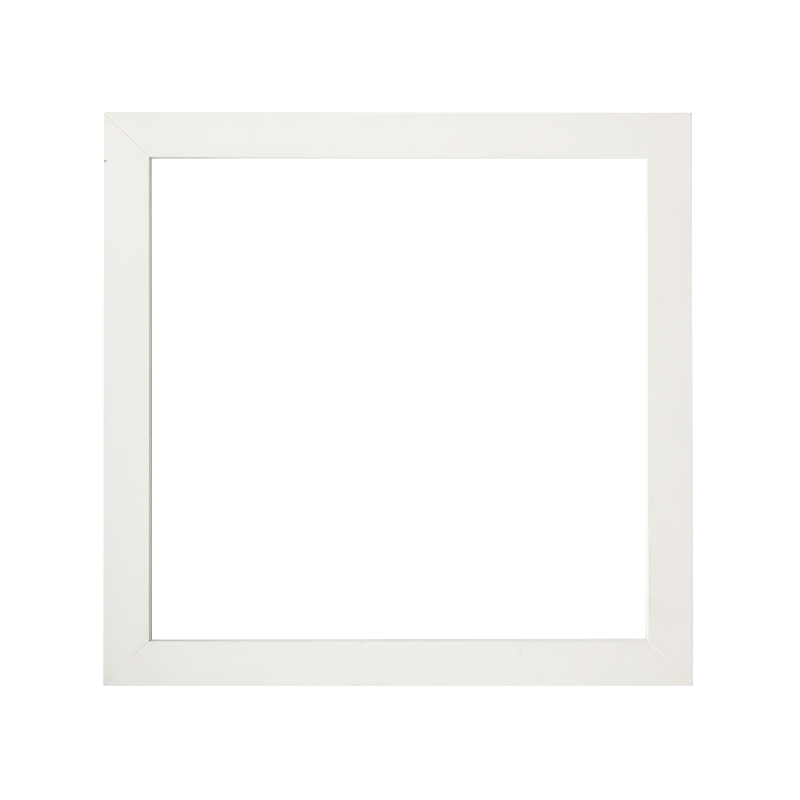

SA-AP380 ALUMINUM MANHOLE
1. Available in a ceiling maintenance panel.
2. Aluminum T-section profile.
3. White powder-coated.

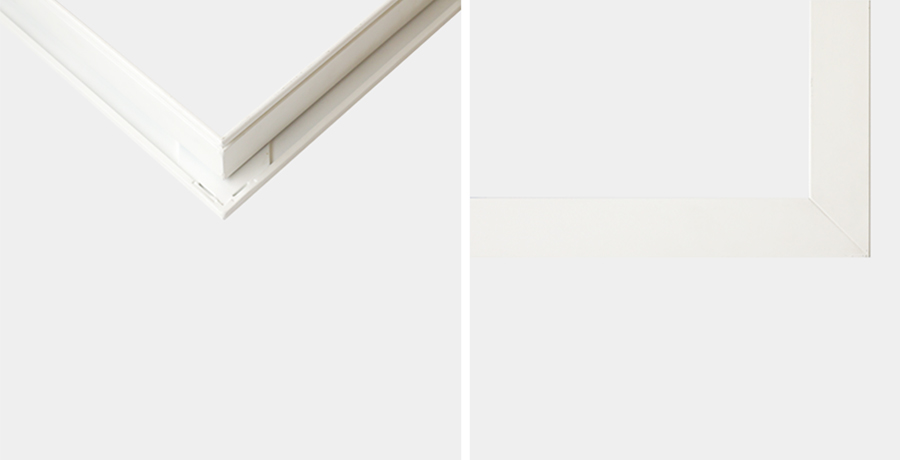

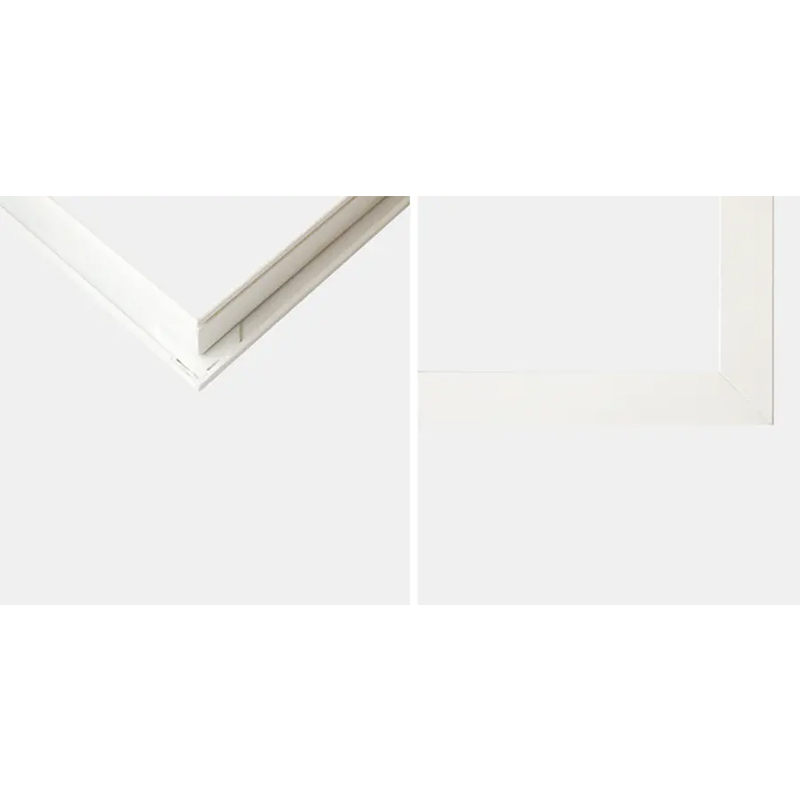

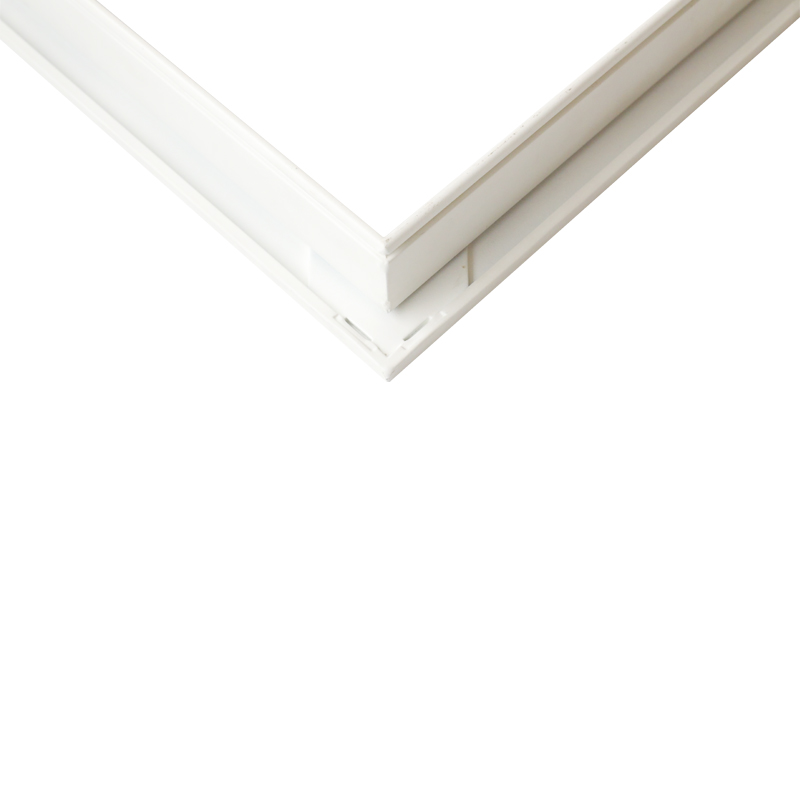

4. Welding corner connected.
5. Standard size: 20x20cm, 30x30cm, 40x40cm, 50x50cm, 60x60cm.
6. Customized sizes and colors are available.
7. Package: 1pc/bubble bag, then put into a carton; a pallet is available.
Advantage
Attractive point: Aluminum frame connected by welding.
Regular size
| Item | Neck Size(mm) | Opening Size W1×L1(mm) | Overall Size W2×L2(mm) |
| SA-AP380 | 200×200 | 172×172 | 225×225 |
| 300×300 | 272×272 | 325×325 | |
| 400×400 | 372×372 | 425×425 | |
| 500×500 | 472×472 | 525×525 | |
| 600×600 | 572×572 | 625×625 |
Zhejiang Shunshi Intelligent Technology Co., Ltd. was established in 2005 and is now located in Deqing County, Huzhou City, covering an area of about 30,000 square meters.
As a manufacturer focusing on high-end access panels, vents, hardware processing parts, medical beds and other products, we have 16 patented technologies, always follow the strict standards of the ISO9001 quality management system, use advanced production equipment and rigorous quality control processes to ensure that each product can meet stable quality standards and meet customer delivery needs.
